Price: 15,000.00৳
Regular Price: 15,799.00৳
Save: 799.00৳

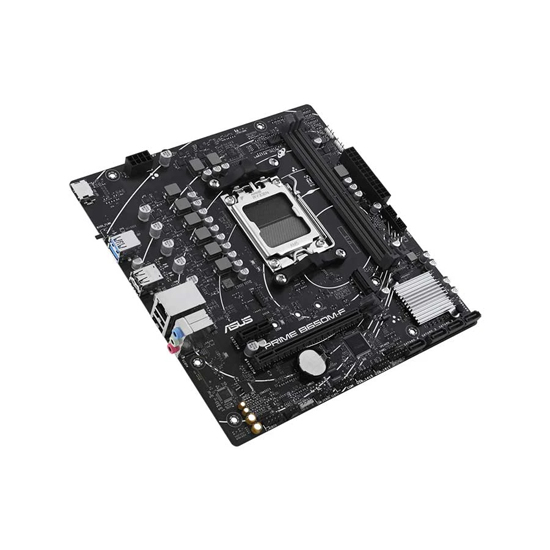

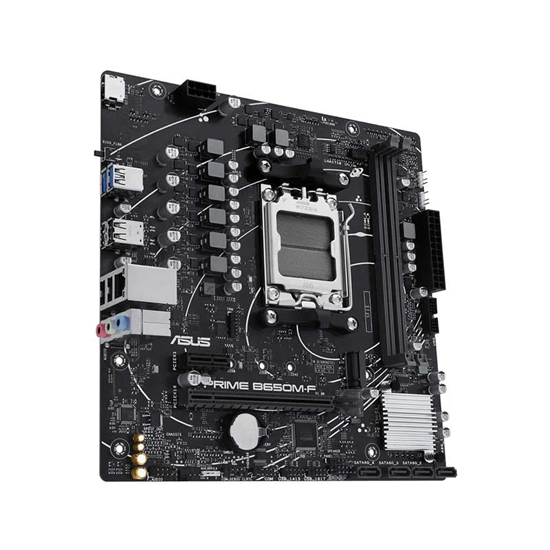

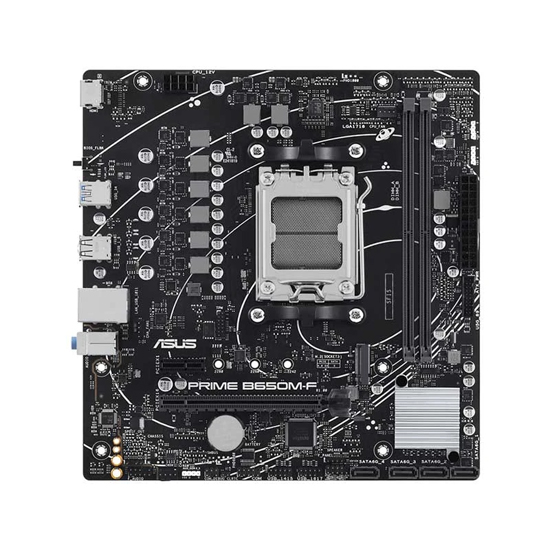

Asus PRIME B650M-F DDR5 AMD Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | AMD |
Chipset | AMD B650 |
Sockets Supported | AM5 |
Supported CPU | Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
Memory Type | DDR5 |
Memory MHz | 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 Non-ECC, Un-Buffered Memory |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max. | 96GB |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2, Type 2242/2260/2280 (Supports PCIe 4.0 x4 Mode) |
Graphics | Integrated |
Graphics Chipset | Integrated With Processor |
PCI Express Slot | 1 x PCIe 4.0 x16 Slot, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 4.0 x1 Slot |
Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Audio Channel | 7.1 |
LAN Chipset | 1 x Realtek 1Gb Ethernet |
LAN Speed (Mbps) | 10/ 100/ 1000Mbps |
USB Port | 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
HDMI Port | 1 |
SATA Port | 4 |
Cable Management | Front |
Raid Support | 0/ 1/ 10 |
RGB Support | RGB |
RGB Sync | AURA Sync |
BIOS Type | 256 Mb Flash ROM |
BIOS Model | UEFI AMI BIOS |
Supported Operating System | Windows 10, Windows 11 |
Compatible Products | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
Feature | ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
Others | Manageability: WOL by PME, PXE, Accessories: Cables: 2 x SATA 6Gb/s Cables, Miscellaneous: 1 x I/O Shield, 1 x M.2 Anchor, Documentation, 1 x Quick Start Guide |
Manufacturing Warranty | 3 Years Warranty |

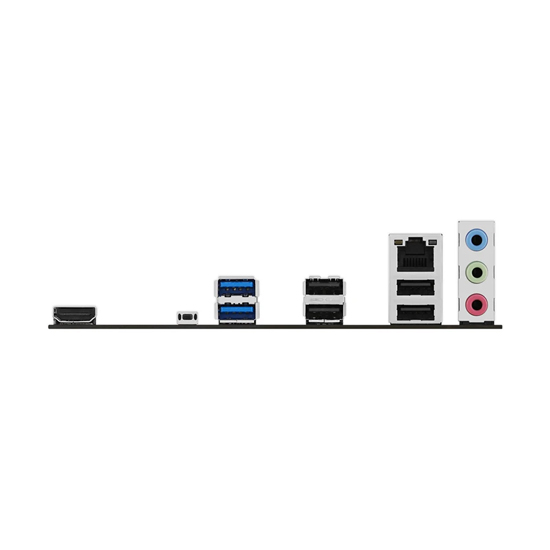

The Asus PRIME B650M-F DDR5 AMD Motherboard is a versatile and reliable motherboard designed to support AMD Ryzen 7000 Series/8000 Series Desktop Processors with the AMD B650 chipset. It features dual-channel DDR5 memory support, with speeds of 7200+ (O.C.)/7000 (O.C.)/6800 (O.C.)/6600 (O.C.)/6400 (O.C.)/6200 (O.C.)/6000 (O.C.)/5800 (O.C.)/5600 (O.C.)/5400 (O.C.)/5200/5000/4800 MHz and up to 96GB of RAM across two memory slots, making it suitable for a variety of computing tasks. For storage, the motherboard offers two M.2 slots (Socket 3, M key, type 2242/2260/2280/22110) that support PCIe 4.0 x4 mode, and four SATA 6Gb/s ports, providing ample options for both traditional and modern storage solutions. Network connectivity is provided by Realtek RTL8111H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is enhanced with Realtek ALC897 Audio Codec, delivering high-quality sound for your entertainment needs.The back panel I/O ports feature one HDMI port, one VGA port, two USB 2.0 ports, four USB 5Gbps ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities include one PCIe 4.0 x16 slot and one PCIe 4.0 x1 slot, allowing for additional hardware components. With its micro-ATX form factor (24.4 cm x 21.1 cm), the motherboard is suitable for compact PC builds, and it includes six mounting holes for secure installation. The motherboard is supported by a three-year manufacturer's warranty, ensuring reliability and providing peace of mind. Overall, the Asus PRIME B650M-F DDR5 AMD Motherboard is an excellent choice for building a powerful and efficient PC.
