Price: 12,000.00৳
Regular Price: 13,500.00৳
Save: 1,500.00৳

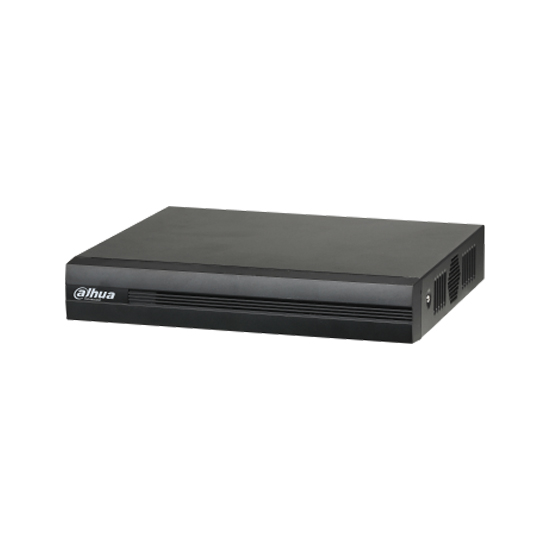

Dahua XVR DH-XVR1B16H-I 16 Channel Wizsense ( 1 Sata Up To 6TB) 1080P
| Industrial-Grade Processor |
| Embedded Linux |
| Web; Local GUI |
| 16 Channels: Secondary Filtering For Human And Motor Vehicle, Reducing False Alarms Caused By Leaves, Rain And Lighting Condition Change |
| 24 Channels |
| 16 BNC Ports, Supports HDCVI/AHD/TVI/CVBS Auto-Detect |
| 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. |
| Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) |
| Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps) |
| Yes |
| 32 kbps–6144 kbps |
| 8 kHz, 16 bit |
| 64 kbps |
| 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
| Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| G.711a; G.711u; PCM |
| HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; |
| iOS; Android |
| ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Chrome; IE; Safari; Edge; Firefox |
| General; alarm; motion detection |
| 1/4/9/16 |
| Instant playback; general playback; event playback; tag playback; smart playback |
| Instant playback; general playback; event playback; tag playback; smart playback |
| Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| SMD Plus |
| Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
| 1-channel RCA 16-channel BNC (Coaxial Audio) |
| 1-channel RCA |
| Yes (share the same audio input with the first channel) |
| 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
| 2 (2 rear USB 2.0 ports) |
| 1 |
| 1 |
| 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| 12 VDC, 2 A |
| <12 W(without HDD) |
| 0.93 kg (2.05 lb) |
| 1.43 kg (3.16 lb) |
| 260.0 mm × 231.4 mm × 47.6 mm (10.24" × 9.11" × 1.87") (W × D × H) |
| 333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H) |
| –10 °C to +45 °C (+14 °F to +113 °F) |
| –20 °C to +60 °C (–4 °F to +140 °F) |
| Desktop |
| 10%–90% (RH), non-condensing |
| CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN |

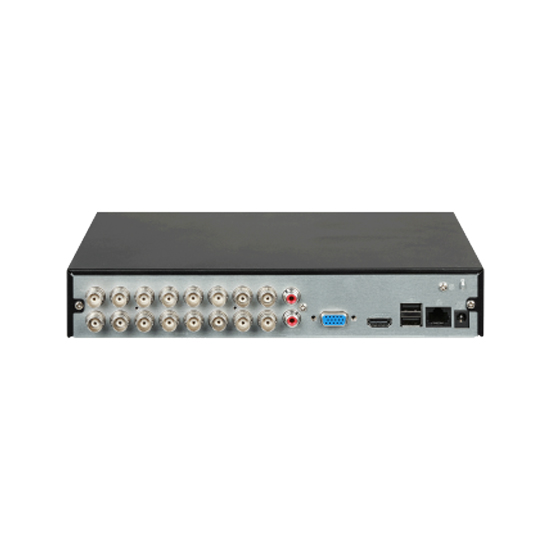

The XVR DAHUA DH-XVR1B16H-I 16 Channel WizSense XVR is a powerful and versatile digital video recorder designed for advanced surveillance needs. This compact 1U device supports up to 16 analog channels and 24 IP channels, providing extensive coverage for large-scale security systems. It features H.265+ and H.265 dual-stream video compression, ensuring efficient storage and bandwidth usage without compromising video quality. One of the standout features of the DH-XVR1B16H-I is its Smart Motion Detection (SMD) Plus technology, which filters out false alarms caused by non-threatening movements like leaves or rain, concentrating on human and vehicle detection to enhance the accuracy of alerts. The device supports multiple video input formats, including HDCVI, AHD, TVI, CVBS, and IP, making it highly adaptable to various camera types. The XVR also boasts a robust storage capacity, supporting one SATA hard drive up to 6TB, ensuring ample space for high-definition video recordings. The front I/O panel includes HDMI and VGA outputs for flexible display options, and the system is compatible with mobile access via iOS and Android devices, allowing for remote monitoring. Overall, the XVR DAHUA DH-XVR1B16H-I combines advanced features with reliable performance, making it an excellent choice for comprehensive security solutions.
No reviews yet. Be the first to leave a review!
The Dahua XVR DH-XVR1B16H-I 16 Channel WizSense comes with a 3-year limited warranty, covering manufacturing defects and hardware malfunctions under normal use. The warranty excludes damage caused by misuse, accidents, unauthorized repairs, or external factors. Proof of purchase is required for warranty claims. Terms and conditions apply.
Returns are accepted within 7 days of purchase with proof of receipt. Items must be unused, unopened, and in original packaging. Defective products can be exchanged or refunded after inspection. Shipping costs for returns are non-refundable unless due to product defects. Contact customer service for assistance with your return. Terms and conditions apply.
