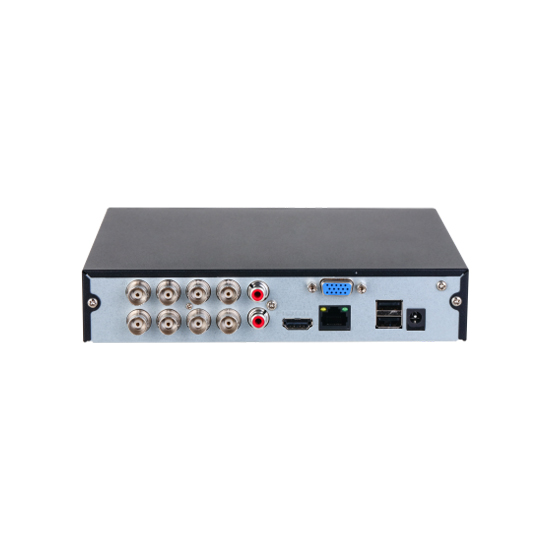

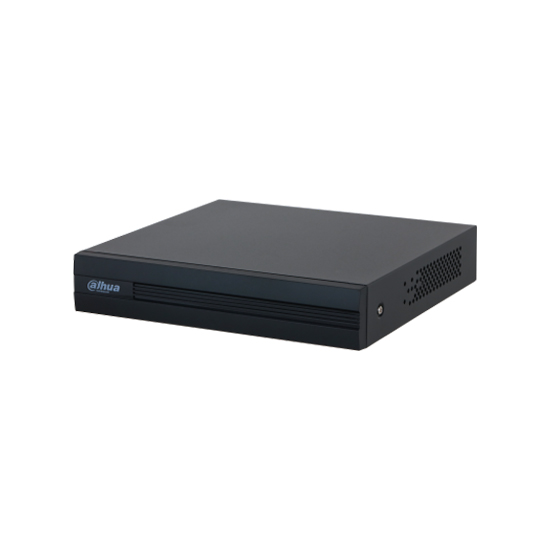

Dahua XVR1B08-I 8 Channel Penta-Brid (1SATA UP TO 6TB) Cooper 1U XVR

Dahua XVR1B08-I 8 Channel Penta-Brid (1SATA UP TO 6TB) Cooper 1U XVR

Model: XVR1B08-I

Reviews: No reviews yet

Price: 3,100.00৳

Regular Price: 3,680.00৳

Save: 580.00৳

Key Features:

  • Main Processor: Industrial-grade processor
  • Operating System: Web; Local GUI
  • SMD Plus by Recorder: 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain
  • Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Specifications

System

Main Processor Industrial-grade processor
Operating System Web; Local GUI

SMD Plus

SMD Plus by Recorder 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain

Audio and Video

Analog Camera Input 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 1080p@25/30 fps; 720p@25/30 fps.
2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 1080p@25/30 fps; 720p@25/30 fps
IP Camera Input Up to 10 channels of IPC access 2 IP channels by default + 8 channels (analog channels are converted to IP channels)
Encoding Capacity Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)
Dual Stream Yes
Video Bit Rate 32 kbps–4096 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-Screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-Party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM

Networking & Connectivity

Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode General; alarm; motion detection
Recording Playback 1/4/9
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback

Alarm

General Alarm Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Audio Sound & Microphone

Audio Input 1-channel RCA 8-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA

Ports & Slots

Two-Way Talk Yes (share the same audio input with the first channel)
Disk Interface 1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.
USB 2 (2 rear USB 2.0 ports)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)

Power Type

Power Supply 12 VDC, 1.5 A
Power Consumption <7 W (without HDD)

Physical Specification

Net Weight 0.56 kg (1.24 lb)
Gross Weight 0.96 kg (2.10 lb)
Product Dimensions 197.0 mm × 202.9 mm × 41.5 mm (7.76" × 7.99" × 1.63") (W × D × H)
Packaging Dimensions 332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × 9.45") (W × D × H)

General Information

Operating temperature –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Installation Desktop

Environmental

Operating Humidity 10%–90% (RH), non-condensing

Additional Info / Features

Certifications CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN

Description

The Dahua XVR1B08-I is an 8-channel Penta-brid XVR designed for reliable and versatile video surveillance. Supporting HDCVI, AHD, TVI, CVBS, and IP camera inputs, this compact 1U device ensures seamless compatibility with various camera technologies. It features a single SATA port accommodating up to 6TB of storage, providing ample space for high-quality video recordings. With advanced H.265+ compression, it optimizes storage efficiency without compromising video clarity. The XVR delivers 1080N and 720P real-time resolution, offering detailed and crisp visuals. Additional features include motion detection, smart search, and a user-friendly interface for convenient operation. Ideal for small to medium-scale surveillance setups, the Dahua XVR1B08-I combines performance, flexibility, and affordability in one compact solution.

Customer Reviews

No reviews yet. Be the first to leave a review!

Warranty

The Dahua XVR1B08-I comes with a standard 1-year limited warranty, covering manufacturing defects and hardware malfunctions under normal use. The warranty excludes damages caused by misuse, unauthorized modifications, or external factors. For claims, proof of purchase is required, and repair or replacement is at the manufacturer’s discretion. Terms may vary regionally.

Refund Policy

Returns are accepted within 7 days of purchase with proof of receipt. Items must be unused, unopened, and in original packaging. Defective products can be exchanged or refunded after inspection. Shipping costs for returns are non-refundable unless due to product defects. Contact customer service for assistance with your return. Terms and conditions apply.
