DeepCool CH510 WH Mid-Tower ATX White Desktop Casing

DeepCool CH510 WH Mid-Tower ATX White Desktop Casing

Model: CH510 WH

Reviews: No reviews yet

Price: 6,500.00৳

Regular Price: 7,750.00৳

Save: 1,250.00৳

Key Features:

  • Brand: DeepCool
  • Model: CH510 WH
  • Case Type: Mid Tower
  • Transparent Side Window: Yes
  • Supported CPU Cooler: Air Cooler
  • Supported Motherboard Type: Mini-ITX / Micro-ATX / ATX / E-ATX
  • Power Supply Type: ATX PS2
  • Lighting Fan: ARGB
  • Color: White
  • Warranty Details: No Warranty
Buy Now

Specifications

General Information

Brand DeepCool
Model CH510 WH
Case Type Mid Tower
Part No R-CH510-WHNNE1-G-1

Case Type

Transparent Side Window Yes
Case Windowed Tempered Glass Window
Left side Panel Full Tempered Glass

Technical Info

Supported CPU Cooler Air Cooler
Illumination Sync With Motherboard
Supported Motherboard Type Mini-ITX / Micro-ATX / ATX / E-ATX

Power Type

Power Supply (Built-In) No
Approx. Power Consumption 5W
Power Supply Mounted Bottom
Power Supply Type ATX PS2

Fan / Cooling System

Cooling Fan (Built-In) 1
Additional Fan Slot 6
With ARGB fan Rear 1x
With ARGB fan Top 3x
With ARGB fan Front 3x
Lighting Fan ARGB
Pre-Installed Fan Size Rear: 1 x 120mm
Supported Fan Size Rear: 1×120 / 1×140mm
Top: 3 x 120 / 2 x 140mm
Front: 3 x 120 / 2 x 140mm
Radiator Support Front/Top/Rear Rear: 120/140mm
Top: 120/140/240/280/360mm
Front: 120/140/240/280/360mm

Physical Specification

Color White
Weight 7.2Kg
Number Of Buttons 2
Buttons Power, Reset
Dust Cover Yes
CPU Cooler S/H/L 175mm
Graphics-Card S/H/L 380mm
PSU Length Maximum Length: 170mm
Materials ABS + SPCC + Tempered Glass
Dimension 435×230×471mm

Ports & Slots

2.5 Inch Drive Bay 3
3.5 Inch Drive Bay 2
Expansion Slots 7 Slots
Front/Top Audio Port 1 x Audio Port
S.S.D (2.5") Space: 3
H.D.D (3.5") Space: 2
Front/Top USB port 2 x USB 3.0

Additional Info / Features

Others Superior Dual-Chamber Architecture. Separate air channels help the PSU and hard drives, and compatibility for motherboards with rear connectors maintains an impeccable interior architecture. compatibility and versatility. maximum capacity for cooling. Cable management and maintenance are simple. Excellently connected.
Specialty Experience the pillarless design of the ultimate showcase construction. The CH510 White is a remarkable work of art with its seamless, non-A-pillar design and tempered glass side and front panels, which provide a crystal-clear view of the components in full display.

Warranty Information

Warranty Details No Warranty

Description

DeepCool CH510 WH Mid-Tower ATX White Desktop covering – Minimalist fineness with Maximum Performance

The DeepCool CH510 WH Mid-Tower ATX White Casing is a clean, satiny, and performance-driven result for PC builders who appreciate style without compromising function. With its commodious innards, excellent cooling capabilities, and decoration white finish, this case is designed to support important tackle while completing any ultramodern setup — from gaming battle stations to professional workstations.

Combining minimalist aesthetics with advanced figure features, the CH510 WH is a top- league choice for suckers, gamers, and generators looking for a dependable, customizable, and tailwind-optimized lattice.

Satiny each-White Design with Premium Build Quality

The DeepCool CH510 WH stands out with its striking each-white surface, offering a clean and ultramodern aesthetic that’s perfect for white-themed shapes. The matte finish, sturdy sword frame, and minimalist frontal panel give a decoration feel while blending seamlessly into a variety of surroundings.

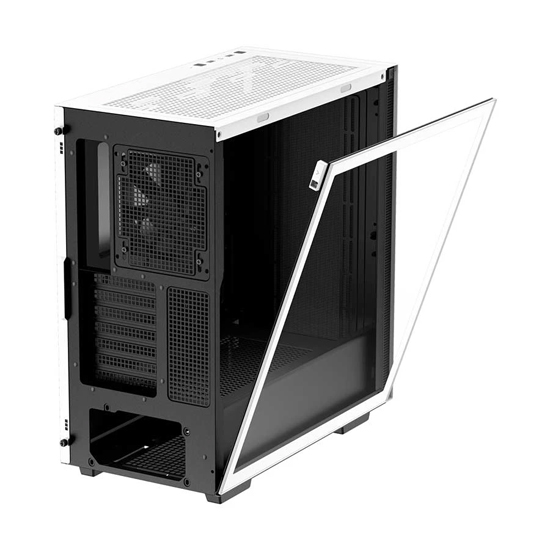

The case also features a glamorous tempered glass side panel, allowing you to show off your internal factors and RGB lighting in style. The panel is easy to remove for quick access, making upgrades and conservation a breath.

Exceptional Cooling and Airflow Support

Designed with thermal performance in mind, the CH510 WH offers robust tailwind configurations to keep your system running cool and quiet. It supports:

 Up to 9 x 120 mm suckers or 5 x 140 mm suckers

 Radiator support up to 360 mm at the front, 280 mm at the top, and 120 mm at the hinder

With its optimized innards layout, the CH510 WH ensures unstopped tailwind across your most heat-sensitive factors, including the CPU and GPU. Apre-installed hinder 120 mm addict provides immediate cooling performance out of the box, while removable dust pollutants on the top and nethermost help keep your system clean and effective over time.

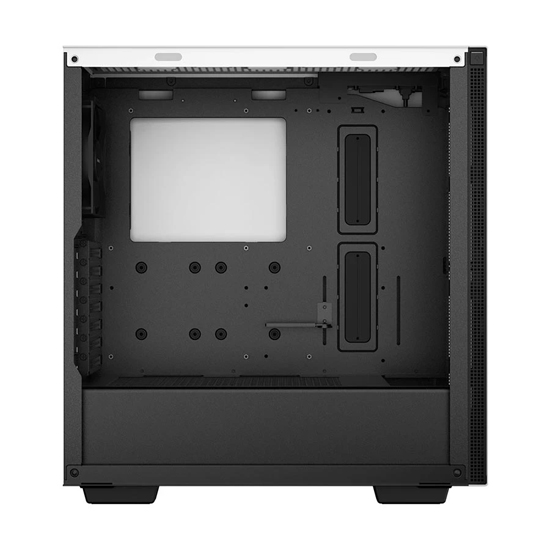

Commodious Interior with Excellent element comity

Though compact in appearance, the CH510 WH offers a unexpectedly ample innards that supports high-end factors. It’s compatible with:

1. ATX, Micro-ATX, and Mini-ITX motherboards

2. Plates cards over to 380 mm in length

3. CPU air coolers up to 175 mm in height

4. PSUs up to 170 mm (with HDD pen installed)

Whether you are installing a high-performance plates card or an AIO liquid cooling system, the CH510 WH provides the space and inflexibility demanded for demanding shapes.

Advanced Cable Management and Tool-Free Access

A clean figure isn’t just about aesthetics — it also enhances tailwind and ease of conservation. The CH510 WH is finagled for easy string routing, with multiple rubber grommets, Velcro strips, and ample space behind the motherboard charger for organizing lines out of sight.

The PSU cloak and retired drive kudos contribute to a tidy internal layout, while the tool-free side panels and removable top panel make installation and upgrades quick and accessible, indeed for first-time builders.

Functional and Builder-Friendly Features

Beyond its stunning design, the DeepCool CH510 WH includes several smart features to enhance the stoner experience:

 Integrated GPU support type to help sagging from heavy plates cards

 Tool-free SSD and HDD installation

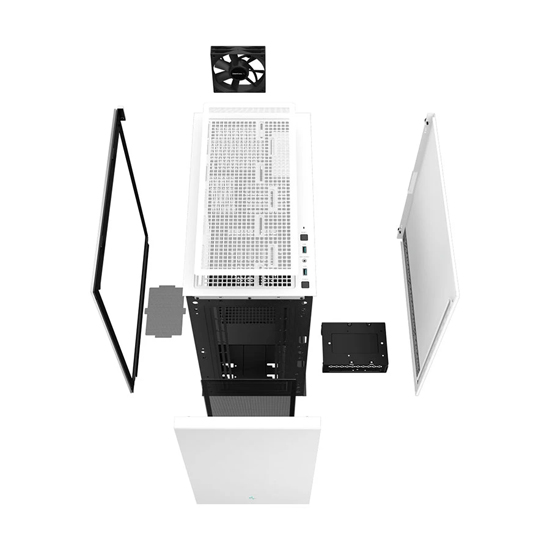

 Removable top panel for easier radiator or addict installation

 Tempered glass panel with glamorous latch for quick access and enhanced safety

These builder-friendly additions make the CH510 WH not only beautiful but also largely practical for long-term use and conservation.

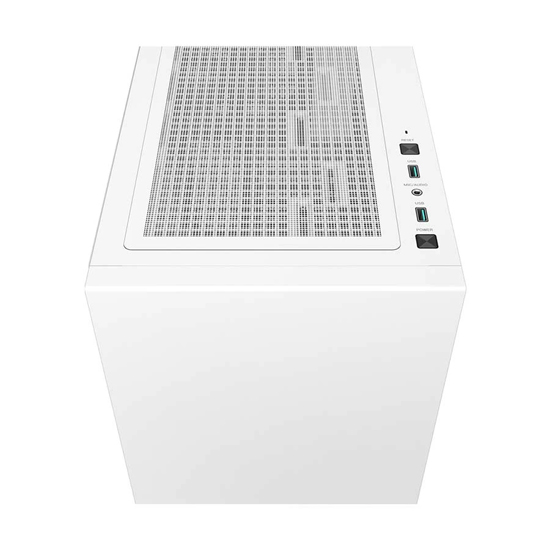

Front I/O Panel for Everyday Convenience

The frontal I/O panel on the CH510 WH is equipped with:

1. 1 x USB 3.0 harborage

2. 1 x USB 2.0 harborage

3. 1 x Audio In/Out quintet jack

4. Power and Reset buttons

Fluently accessible, these anchorages insure flawless connectivity for your peripherals, audio bias, and external storehouse — making everyday relations with your system briskly and more accessible.

Why Choose the DeepCool CH510 WH Mid-Tower?

 Stylish each-white finish for clean, ultramodern aesthetics

 Supports high-performance ATX builds with excellent tackle concurrence

 Superior tailwind with support for multiple suckers and large radiators

 Glamorous tempered glass panel to showcase your factors

 Integrated GPU support type for added protection

 Advanced string operation for a clean, effective figure

 Builder-friendly layout with tool-free access and installation

Conclusion

The DeepCool CH510 WH Mid-Tower ATX White Casing is a name choice for PC suckers who value both form and serve. It delivers excellent tailwind, flexible tackle comity, and clean design in one beautiful package. Perfect for white-themed setups and high-performance gaming equipages, the CH510 WH offers the trust ability, expandability, and complication ultramodern builders demand.

Whether you are constructing a new figure or upgrading your current carriage, the CH510 WH provides the perfect balance of aesthetic appeal and functional excellence.
