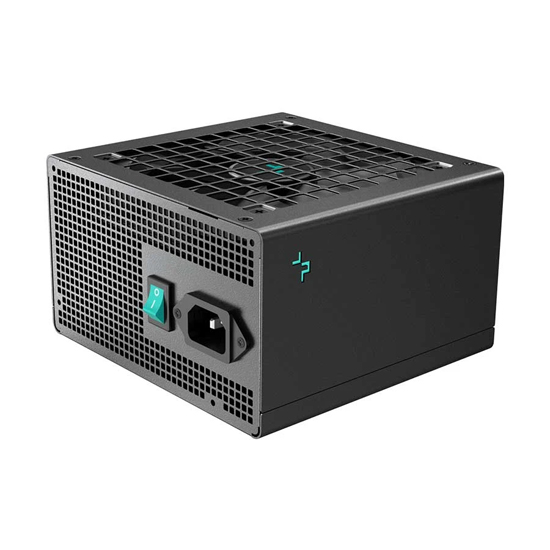

DeepCool PN650D 650W 80 Plus Gold Non-modular Power Supply
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

DeepCool PN650D 650W 80 Plus Gold Non-modular Power Supply

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: DeepCool
৳7800 ৳8300 Save 6%

Key Features

  • Product Type: ATX12V V3.1
  • Maximum Power: 650 Watt
  • Color: Black
  • Form Factor: ATX
  • Manufacturing Warranty: 10 years
Basic Information
Product Type ATX12V V3.1
PSU Category Non Modular
Fan / Cooling System
Fan Size 120mm
Fan Bearing Hydro Bearing
Performance
Efficiency 90% Efficiency
Efficiency Rating 80 Plus Gold
Power Good Signal 100-150ms
Hold Up Time >=16ms(80% Load)
Protection
Protection OPP/ OVP/ SCP/ OTP/ OCP/ UVP/ SIP/ NLO
Over Voltage Protection (OVP) Yes
Over Power Protection (OPP) Yes
Over Current Protection (OCP) Yes
Over Temperature Protection (OTP) Yes
Short Circuit Protection (SCP) Yes
Under Voltage Protection (UVP) Yes
Ports & Slots
PCIe Connectors 3
SATA Power Connectors 2
Power Type
Maximum Power 650 Watt
Environmental
Operating Temperature 0 Degree C - 40 Degree C
Physical Specification
Color Black
Form Factor ATX
Dimension 150 x 140 x 86mm
Technical Info
MTBF 100,000 Hours
Additional Info / Features
Regulatory / Safety Approval CE/ FCC/ CCC/ TUV-RH/ cTUVus/ RCM/ EAC
Others Topology: Active PFC + Full Bridge SRC LLC + DC to DC, Capacitors: Chinese Electrolytic Capacitors, Efficiency: >=90% Under Typical Load(50% Loading), Erp Regulation: ErP 2014, 12V-2x6(16Pin) x 1, CPU(4+4)Pin x 2, Main Power Connector (20+4)Pin x 1
Specialty The DeepCool PN650D Is A New Non-Modular Power Supply That Meets The Latest Intel ATX 3.1 And PCIe 5.1 Standards. With A Dedicated 12V-2x6, 2 EPS, And 3 PCIe Connectors, The PN650D Provides Stable Power For A Wide Range Of Modern High-Power Components
Warranty Information
Manufacturing Warranty 10 years

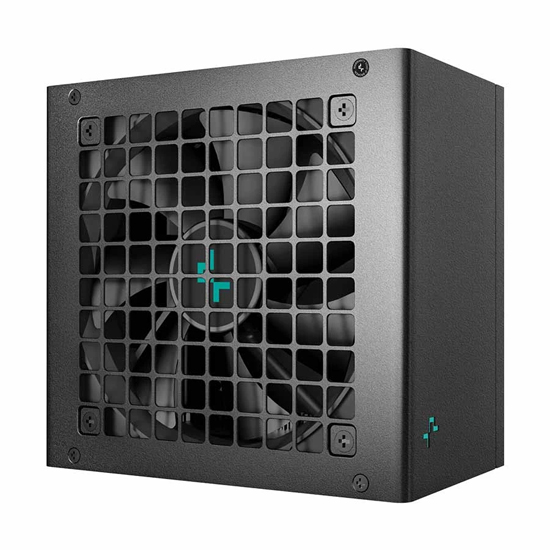

The DeepCool PN650D 650W 80 PLUS Gold Non-Modular Power Supply is a durable and efficient solution tailored for modern gaming and workstation setups. It boasts an 80 PLUS Gold certification, delivering 90% efficiency under typical loads, which translates to less energy waste and lower heat output. The unit features a 120mm Hypro bearing fan for quiet operation and effective cooling. As a non-modular power supply, all cables are permanently attached, which is suitable for builds where cable management is not a concern. It comes with various connectors, including a 20+4 Pin Main Power Connector, dual 4+4 Pin CPU connectors, a PCI-E 6+2 Pin connector, and four SATA connectors, offering broad compatibility with different components. The DeepCool PN650D promises longevity with a 10-year manufacturer warranty and includes extensive protection features like OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP to protect your system from electrical irregularities.
