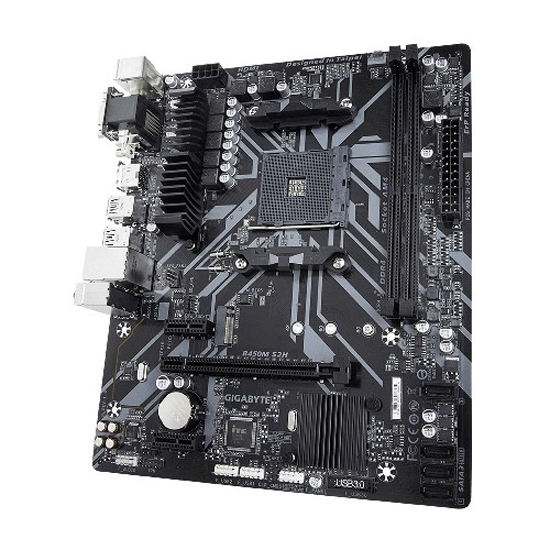

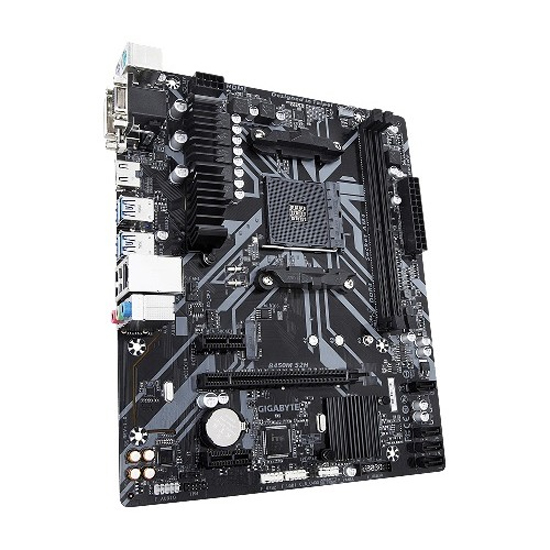

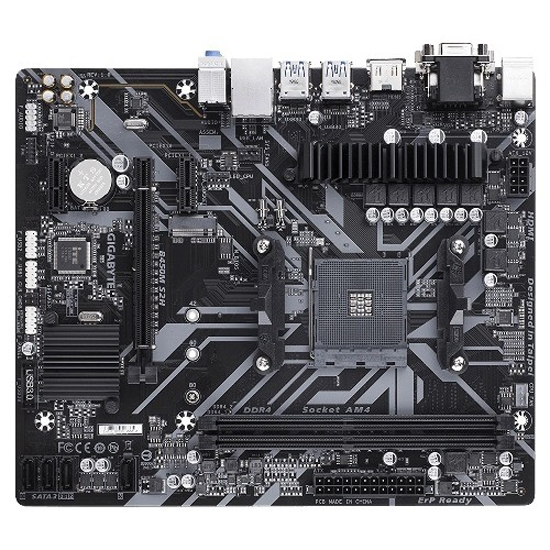

Gigabyte B450M S2H AMD AM4 Micro ATX Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | AMD |
Chipset | AMD B450 |
Supported CPU | AM4 Socket Support For AMD Ryzen 2nd Generation/ Ryzen With Radeon Vega Graphics/ Athlon With Radeon Vega Graphics/ Ryzen 1st Generation Processors |
BIOS Type | 1 x 128 Mbit Flash |
BIOS Model | Use Of licensed AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard) & 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard) |
Graphics | 2 GB |
M.2/SSD Expansion Slot | 1 x M.2 Socket 3 Connector & 1 x M.2 Connector (Socket 3, M key, Type 2242/2260/2280 SATA And PCIe x4/x2 SSD Support) Supports Only M.2 SATA SSDs When Using An AMD Athlon 200-series/ 7th Generation A-series Or Athlon APU |
Memory Type | DDR4 |
Memory MHz | Support For DDR4 3200(O.C.)/2933/2667/2400/2133 MHz Memory Modules |
Memory Channel | Dual |
Memory Slot (Additional Info) | 2 x DDR4 DIMM |
Memory Max. | 32 GB |
LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
Audio Chipset | Realtek ALC887 Codec |
Audio Channel | 2/4/5.1/7.1-Channel |
Manufacturing Warranty | 03 Years Warranty |
The Gigabyte B450M S2H AMD AM4 Micro-ATX Motherboard is a versatile and reliable motherboard designed to support AMD Ryzen 2nd Generation, Ryzen with Radeon Vega Graphics, Athlon with Radeon Vega Graphics, and Ryzen 1st Generation processors. It features the AMD B450 chipset, ensuring compatibility with a wide range of components and providing stable performance for everyday computing tasks. This motherboard supports dual-channel DDR4 memory with speeds of 3200 (O.C.)/2933/2667/2400/2133 MHz and up to 32GB of RAM across two memory slots. The device provides four SATA 6Gb/s ports and one M.2 slot for storage, accommodating both NVMe and NGFF storage devices, which allows for a wide range of traditional and contemporary storage options. It also features GbE LAN with bandwidth management for network connectivity, ensuring consistent and reliable internet performance. The audio experience is enhanced with Realtek ALC887 Audio Codec, delivering high-quality sound for your entertainment needs. The back panel I/O ports feature one VGA port, one HDMI port, two USB 2.0 ports, four USB 3.0 ports, one RJ45 LAN port, and three audio jacks (Mic in, Line Out, and Line In). The expansion capabilities feature one PCI Express x16 slot and one PCI Express x1 slot, accommodating the addition of extra hardware components. With its micro-ATX form factor (24.4 cm x 20.5 cm), the motherboard is suitable for compact PC builds, and it includes six mounting holes for secure installation. The motherboard comes with a three-year warranty from the manufacturer, ensuring reliability and customer satisfaction. Overall, the Gigabyte B450M S2H AMD AM4 Micro-ATX Motherboard is an excellent choice for building a powerful and efficient PC.
