Price: 10,600.00৳
Regular Price: 11,500.00৳
Save: 900.00৳

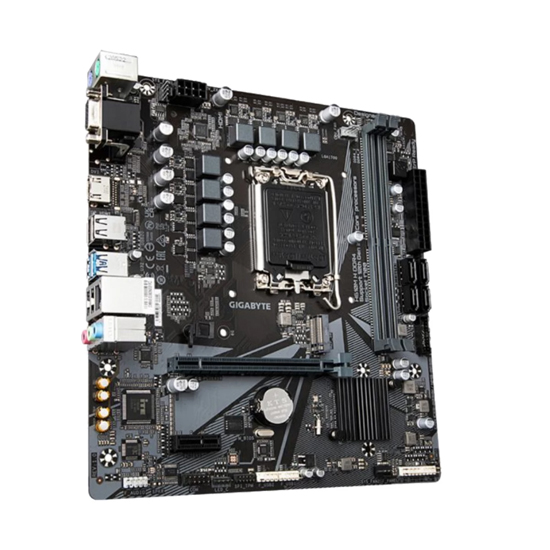

Gigabyte H610M H DDR4 Micro ATX Intel Motherboard
Body Color | Black |
Form Factor | Micro-ATX |
Chipset Brand | Intel |
Chipset | Intel H610 |
Sockets Supported | LGA1700 |
Supported CPU | 12th, 13th & 14th Intel Core, Pentium Gold, Celeron Processors |
Generation | 12th/13th/14th |
Memory Type | DDR4 |
Memory MHz | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Slot (Additional Info) | 2 x DIMM |
Memory Max. | 64GB |
Memory Max. (Additional Info) | 2 x DDR4 DIMM |
Storage Interface | 6.0Gb/s |
M.2/SSD Expansion Slot | 1 |
M.2/SSD Expansion Slot Details | 1 x M.2 (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD) |
Graphics | Integrated |
Graphics Chipset | Intel HD Graphics support |
PCI Express Slot | 1 x PCI Express x16, 1 x PCI Express x1 |
Audio Chipset | Realtek Audio |
Audio Channel | 7.1 |
LAN Chipset | Intel GbE LAN |
LAN Speed (Mbps) | 10/100/1000 Mbps |
USB Port | 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
VGA Port | 1 |
HDMI Port | 1 |
SATA Port | 4 x SATA |
TPM Port | 1 |
Cable Management | Front |
RGB Support | RGB |
RGB Connector | 1 x RGB LED strip header |
Approx Power Consumption | 60W |
BIOS Type | 1 x 256 Mbit flash |
BIOS Model | AMI UEFI BIOS |
BIOS Version | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Supported Operating System | Windows 11 and 10 |
Compatible Products | LGA1700 Socket 12th, 13th & 14th Gen Intel Processor |
Manufacturing Warranty | 3 Years |

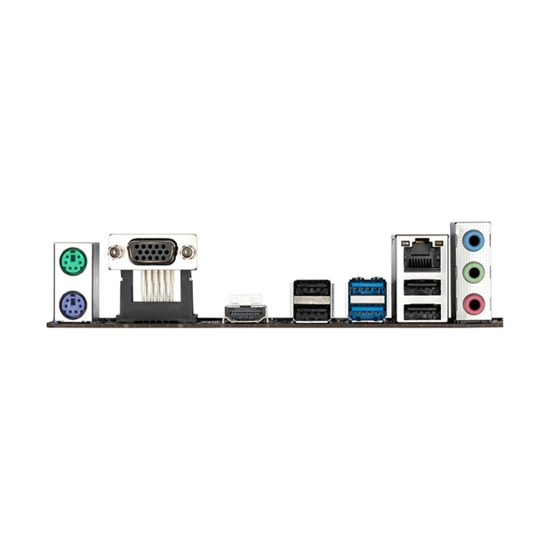

The Gigabyte H610M H4 Micro-ATX Motherboard is designed both office and home use. It supports 14th, 13th, and th Intel Core, Pentium Gold, and Celer processors utilizing the Intel H610 chipset and LGA1700 socket. This motherboard features dual-channel DDR4 memory support, with speeds of up to 3200 MHz and a maximum capacity of 64GB of RAM across two memory slots. For storage, it includes one M. slot (Socket 3, M key, type 2280/2260) that supports PCIe 3.0 x4 mode, along with two SATA 6Gb/s ports, thus providing ample options for both traditional and modern storage solutions. Network connectivity is facilitated by Realtek RTL8111H Gigabit LAN, ensuring smooth and internet performance. The audio experience is further enhanced through the Realtek ALC Audio Codec, delivering high-quality sound for entertainment purposes. The back panel/O ports consist one HDMI port, two USB 3.2 Gen1 ports, four USB 2.0 ports, and audio jacks (Mic in, Line Out, and Line In). Expansion capabilities encompass one PCIe 4.0 x16 and one PCIe 3.0 x1 slot, permitting addition of further hardware components. With its micro-ATX form factor (22.6 cm x 18.5 cm), this motherboard is suitable for compact builds and includes six mounting holes for secure installation. It is backed by a -year warranty, ensuring reliability and peace of mind.
