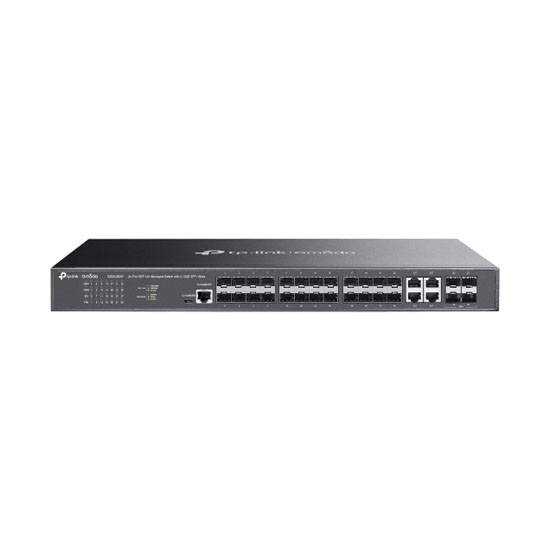

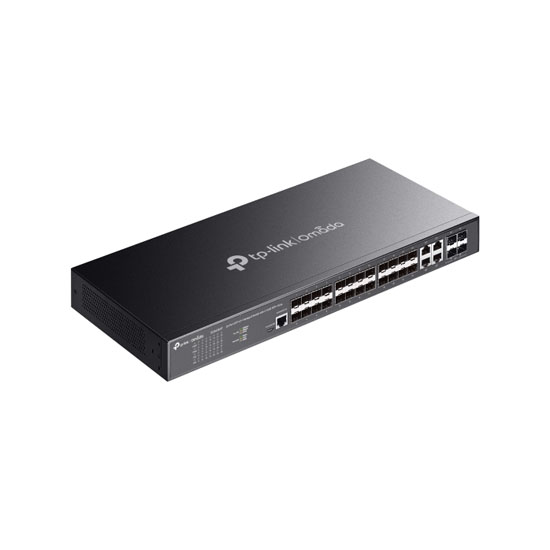

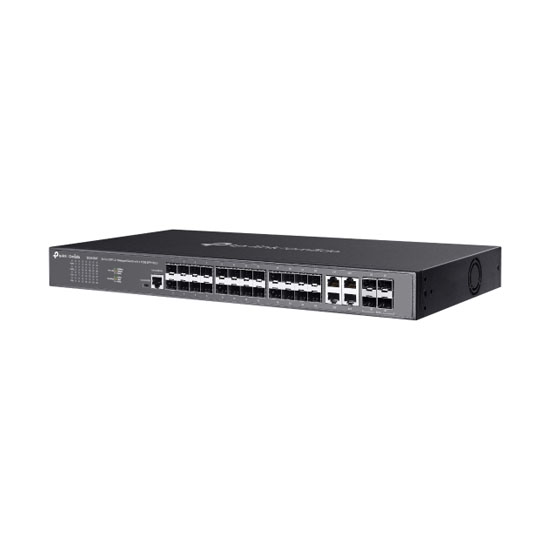

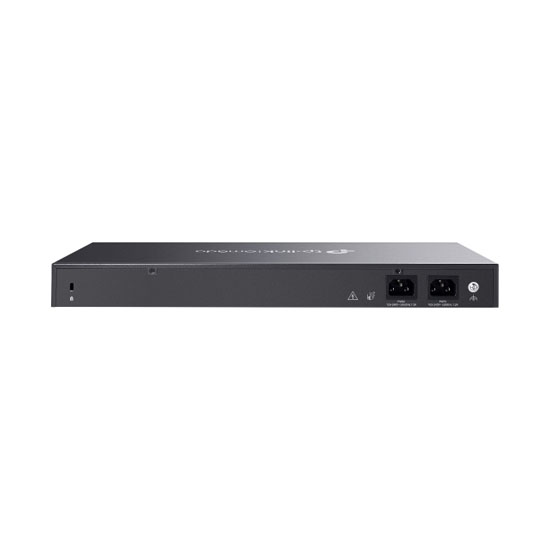

TP-Link SG3428XF Omada 24 Port SFP L2+ Managed Switch With 4 10GE SFP+ Slots
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

TP-Link SG3428XF Omada 24 Port SFP L2+ Managed Switch With 4 10GE SFP+ Slots

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳42700 ৳45900 Save 7%

Key Features

  • Product Type: Network Switch
  • Number Of Total Port: 24 Port
  • Switching Capacity: 128 Gbps
  • Packet Forwarding Rate: 95.23 Mpps
  • Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  • Warranty: 2 Years Warranty
Basic Information
Product Type Network Switch
Mounting Type Rack Mountable
Ports & Slots
Number Of Total Port 24 Port
Interface(s) 20× Gigabit SFP Slots
4× Gigabit Combo SFP/RJ45 Ports
4× 10G SFP+ Slots
1× RJ45 Console Port
1× Micro-USB Console Port
Networking & Connectivity
Switching Capacity 128 Gbps
MAC Address Table 16 K
Technical Info
Packet Forwarding Rate 95.23 Mpps
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB
Features
L2 and L2+ Features • 128 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 48 IPv4/IPv6 Static Routes
• Static ARP: 128 static entries
• 512 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
Management Features
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Management Features • Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
Physical Specification
Package Contents • SG3428XF Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
Dimension 440×220×44 mm
Requirement
System Requierment Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Warranty Information
Warranty 2 Years Warranty
Power Type
Power Supply Dual Redundant Power Supplies
100-240 V AC~50/60 Hz
Fan / Cooling System
Number Of Fans 1 Fan
General Information
APP Control • Supports 1000 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• IGMP Authentication
• Multicast VLAN Registration (MVR)
• MLD Snooping
• Multicast Filtering: 256 profiles and 16 entries per profile

TP-Link SG3428XF Omada 24 Port SFP L2+ Managed Switch With 4 10GE SFP+ Slots

The TP-Link SG3428XF Omada 24 Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots is a high-performance networking solution designed for businesses that demand reliable, high-speed fiber connectivity and scalable network architecture. Featuring 24 Gigabit SFP ports (supporting 100/1000Mbps) and four 10G SFP+ uplink slots , this switch offers exceptional flexibility for long-distance data transmission and seamless integration into high-bandwidth environments such as enterprise networks, surveillance systems, and campus infrastructures.
Powered by advanced Layer 2+ switching features , the SG3428XF enables efficient traffic management through static VLANs , QoS prioritization , LACP link aggregation , and IGMP Snooping , ensuring optimal performance across voice, video, and data applications. It also includes robust security tools like Access Control Lists (ACLs) , port-based authentication (802.1X) , Radius integration , and DoS attack prevention , providing comprehensive protection against unauthorized access and potential network threats.
Designed for durability and efficiency, the switch comes in a sturdy metal chassis with fanless or intelligent fan cooling , making it ideal for noise-sensitive environments while maintaining stable operation under heavy workloads. Its energy-efficient design helps reduce power consumption, supporting eco-friendly and cost-effective network operations.
The SG3428XF seamlessly integrates with the Omada Software-Defined Networking (SDN) platform , allowing for centralized cloud-based management of multiple devices across different locations. It also supports web-based GUI , CLI , and SNMP monitoring , offering flexible configuration and real-time control.
Whether you're deploying a secure fiber backbone, expanding an IP surveillance system, or building a resilient enterprise network, the TP-Link SG3428XF Omada delivers the speed, scalability, and intelligent management needed to support modern business demands—all backed by a 2-year warranty.
