PoE Ports (RJ45)Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W
Networking & Connectivity
Switching Capacity20 Gbps
MAC Address Table4K
Technical Info
Packet Forwarding Rate14.88 Mpps
Jumbo Frame16 KB
Physical Specification
Package ContentsTL-SG1210P, Power Adapter, Installation Guide
Dimension209 × 126 × 26 mm
Requirement
System RequiermentMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Warranty Information
Warranty2 Years Warranty
Power Type
Power SupplyExternal Power Adapter(Output: 53.5VDC / 1.31A)
Max Power Consumption7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)

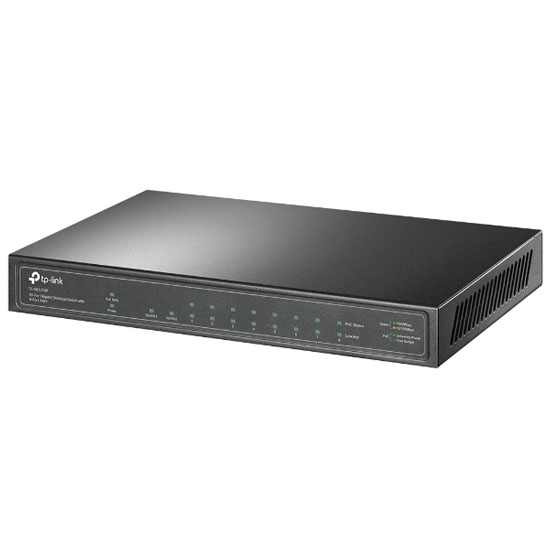

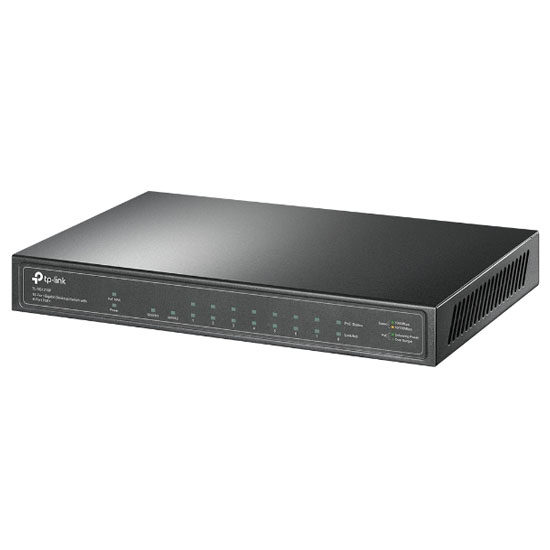

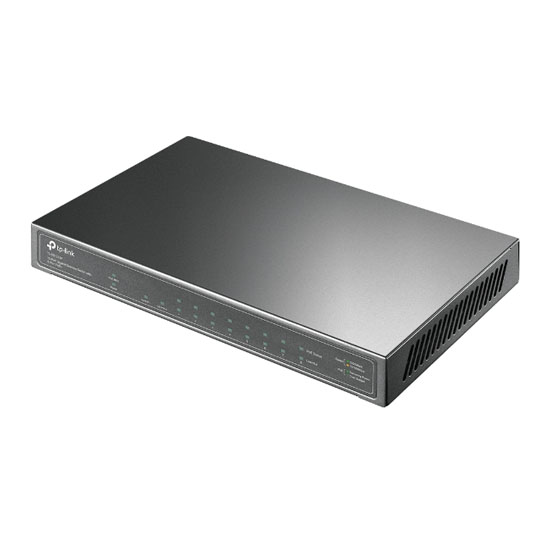

TP-Link TL-SG1210P 10 Port Gigabit Desktop Switch With 8 Port PoE+
The TP-Link TL-SG1210P is a high-performance, 10-port Gigabit desktop switch designed to deliver reliable networking and efficient power delivery for small to mid-sized businesses. It features 8 Power over Ethernet (PoE) ports that support the IEEE 802.3af/at standard , providing up to 130W of total PoE budget . This makes it ideal for powering devices such as IP cameras, VoIP phones, wireless access points, and other PDs (Powered Devices), eliminating the need for additional power adapters or outlets. All 10 RJ45 ports support auto-negotiation and speeds of up to 1000 Mbps, ensuring fast and stable data transfer across your network. The switch's non-blocking switching architecture allows for maximum data throughput, while Quality of Service (QoS) prioritizes critical traffic like voice and video for smooth, uninterrupted performance. Equipped with an easy-to-use web-based management interface , the TL-SG1210P enables users to configure and monitor essential networking features including VLANs, port mirroring, link aggregation, and IGMP snooping . These tools improve network efficiency, security, and scalability. Furthermore, Layer 2 features such as bandwidth management and storm control ensure consistent network stability. This compact desktop or wall-mountable switch is perfect for offices, classrooms, retail environments, or surveillance systems where space is limited. Its fanless design ensures silent and energy-efficient performance, making it ideal for noise-sensitive environments.. With robust performance, flexible management options, and integrated PoE support, the TP-Link TL-SG1210P offers a smart, all-in-one networking solution for modern businesses in need of both connectivity and power in a single, affordable device.
