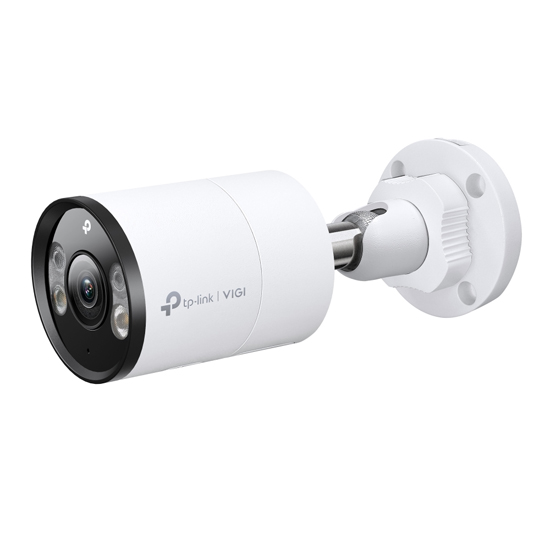

TP-Link VIGI C345 2.8mm 4MP Outdoor Full-Color Bullet Network Camera

TP-Link VIGI C345 2.8mm 4MP Outdoor Full-Color Bullet Network Camera

Model: VIGI C345 2.8mm

Reviews: No reviews yet

Price: 5,500.00৳

Regular Price: 6,350.00৳

Save: 850.00৳

Key Features:

  • Brand: TP-Link
  • Usage: Outdoor
  • Type: Network Camera
  • SNR: ≥ 52 dB
  • Bit Rate Control: CBR, VBR
  • Max. Resolution: 2688 x 1520
  • Protection: IP67
  • Material: Metal
  • Warranty Details: 1 Year
Buy Now

Specifications

General Information

Brand TP-Link
Model VIGI C345 2.8mm
Usage Outdoor
Type Network Camera

Camera

Slow Shutter Yes
Day/Night Mechanism IR Cut Filter
Shutter Speed 1/3 to 1/10000 s
Day/Night Switch Unified/ Scheduled/ Auto
Image Sensor 1/2.7” Progressive Scan CMOS
Minimum Illumination 0.005 Lux; 0 Lux with IR/White light


OSD Setting Yes
Image Parameters Switch Yes
SNR ≥ 52 dB
ROI 1 Region
Privacy Mask Up to 4 Masks
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range (WDR) 120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

Video

Bit Rate Control CBR, VBR
Max. Resolution 2688 x 1520
H.264 Type High Profile
H.265 Type Main Profile*
H.264+ Main Stream Supported
H.265+ Main Stream Supported*
Video Bit Rate • Sub-Stream: 64 Kbps to 512 Kbps
• Main Stream: 256 Kbps to 6 Mbps
Video Compression • Sub-Stream: H.265/H.264
• Main Stream: H.265+/H.265/H.264+/H.264
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
704x576,640x480, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Lens

Aperture F1.6
Lens Mount M12*P 0.5
Focal Length 2.8/4/6 mm
Lens Type Fixed Focal Lens
DORI Distance • 2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) • 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) • 6 mm Detect: 120 m (394 ft) Observe: 50 m (164 ft) Recognize: 24 m (79 ft) Identify: 12 m (39 ft)
FOV • 2.8 mm:
Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°

• 4 mm:
Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°

• 6 mm:
Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°

Audio

Audio Input Yes
Audio Output Yes
Audio Compression Yes
Environment Noise Filtering Yes
Audio Sampling Rate 8KHz
Audio Communication Two-Way Audio
Audio Bit Rate 64 Kbps(G.711 alaw)

Network

Cloud Yes
ONVIF Yes
Web Browser • Safari® 11 and above
• Firefox® 52 and above
• Microsoft® Edge 91 and above
• Google Chrome® 57 and above
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
API Open Network Video Interface (Profile S)
Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Linkage Method N/A
Output Notification Message Push
Basic Event • Motion Detection
• Exception (Illegal Login)
• Scene Change Detection
• Video Tampering Detection
Alarm Linkage • Message Push
• Audible Warning
• White Light Flashing
• Memory Card Video Recording
Smart Event • Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection • Object Removal Detection
• Loitering Detection
• Smart Frame • People Detection
• Vehicle Detection

Interface

Audio N/A
Alarm N/A
Reset Button Yes
Built-in Speaker Yes
Power DC Power Port
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
On-Board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Angle Adjustment (Manual)

Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

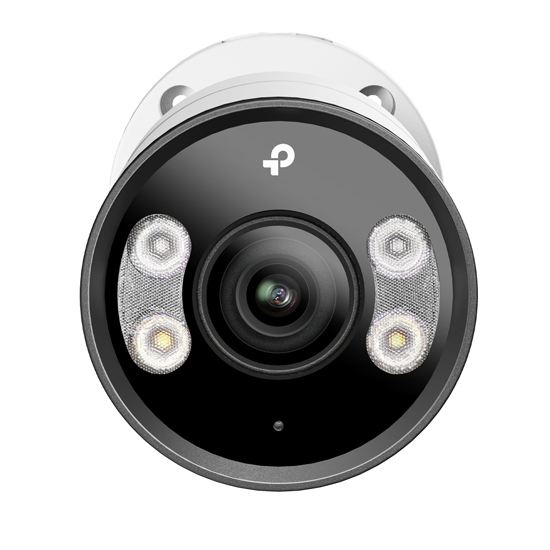

Illuminator

White LED • Quantity: 2
• Range: 30m
IR LED • Quantity: 2
• Range: 30m
• Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off

Environmental

Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storing/Storage Humidity 95% or Less (Non-Condensing)

Protection

Protection IP67

Certification

Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC

Power Type

Power Supply • PoE: 802.3af/at, class 0, Max. 10.7 W
• 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug

Physical Specification

Material Metal
Net Weight 0.525 Kg
Product Dimensions (L x W x H) 74 × 184 × 74 mm
Package Content • Quick Start Guide
• VIGI Network Camera
• Mounting Accessories
• Waterproof Cable Attachments

Warranty Information

Warranty Details 1 Year

Description

TP-Link VIGI C345 2.8 mm 4MP Outdoor Full- Color pellet Network Camera – Unmatched Clarity, Day and Night

Cover what matters most with the TP- Link VIGI C345 4MP Outdoor Full- Color pellet Network Camera. Designed with professional- grade surveillance features, this 2.8 mm fixed lens camera offers  crystal clear-clear 4MP resolution, vibrant full- color imaging indeed in low- light  surroundings, and robust  out-of-door   continuity. Perfect for home, office, or  marketable  parcels, the VIGI C345 ensures  dependable 24/7 security with intelligent monitoring and easy network integration.

Crystal- Clear 4MP High- Definition Video

The TP- Link VIGI C345 delivers 4MP( 2560 × 1440)ultra-clear resolution,  furnishing twice the detail of standard 1080p HD cameras. This advanced resolution allows for sharper facial recognition, clearer license plate  prisoner, and more accurate event attestation — essential for effective surveillance and  substantiation gathering.

mm Wide- Angle Lens for Maximum Coverage

Equipped with a 2.8 mm lens, the VIGI C345 offers a wide field of view ideal for covering large  out-of-door  areas  similar as parking lots, storefronts, driveways, and  erecting entrances. The wide- angle lens reduces eyeless spots and ensures you capture every important detail across the entire covered zone.

Full- Color Night Vision – See in the Dark with True Colors

Unlike conventional IR night vision cameras, the VIGI C345 features ColorPro Night Vision with a high-  perceptivity detector and supplemental lighting. This advanced technology captures  pictorial, full- color footage indeed in low- light or  darkness conditions — without  counting solely on infrared. Whether it's dusk, dawn, or pitch-black darkness, you’ll have a clearer, more realistic view of your surroundings.

Smart Detection & Real- Time Alerts

Boost your security system with intelligent  stir discovery. The VIGI C345 supports  mortal and vehicle bracket, line- crossing discovery, intrusion discovery, and area entrance/ exit monitoring. These smart features reduce false  admonitions and allow for timely, accurate  cautions, helping you respond  snappily to real  pitfalls.

Erected for Outdoor continuity – IP67 Weatherproof Design

Engineered for harsh  out-of-door   surroundings, the TP- Link VIGI C345 is IP67- rated for rainfall and dust resistance. Whether it's pouring rain, extreme heat, or icy cold wave, this rugged  pellet camera is  erected to perform faultlessly in  grueling  conditions, making it ideal for  out-of-door  surveillance all time round.

Video Compression – Save Bandwidth and Storage

Thanks to advanced H.265  videotape garbling, the VIGI C345 efficiently compresses  videotape footage without compromising image quality. This reduces  storehouse space and bandwidth consumption by over to 70, allowing you to record longer durations while minimizing network  cargo and hard drive  operation.

Flexible Storage Options

Choose the  storehouse  result that stylish suits your  requirements. The VIGI C345 supports microSD cards( up to 256 GB), Network Video Archivist( NVR) systems, and FTP garçon uploads. Whether you want original, centralized, or  pall- grounded  storehouse, this camera has the inflexibility to  acclimatize to your security  structure.

Flawless Integration with VIGI and ONVIF-Compatible Systems

The camera is completely compatible with TP- Link VIGI NVRs and supports ONVIF  norms, enabling integration with a wide range of third- party NVRs and security platforms. Manage multiple cameras  painlessly through the intuitive VIGI app, VIGI Security Manager, or web interface.

PoE Support – Easy Installation with a Single Cable

Simplify your installation process with Power over Ethernet( PoE). One Ethernet  string provides both data and power,  barring the need for  fresh power  appendages and reducing clutter during setup.

Conclusion

Whether you are enhancing a business security system or  securing your home, the TP- Link VIGI C345 2.8 mm 4MP Outdoor Full- Color pellet Network Camera delivers professional-  position performance, robust construction, and intelligent monitoring capabilities. With superior image quality, full- color night vision, waterproof design, and flexible  storehouse, it’s the perfect choice for  ultramodern surveillance demands. Experience security without  concession — trust VIGI by TP- Link.
