TP-Link VIGI C540V 4MP Dual Lens Full Color PTZ IP Camera
| TP-Link |
| VIGI C540V |
| Network Camera |
| 1/3” Progressive Scan CMOS |
| 1/3 to 1/10000 s |
| Yes |
| 0.005 Lux; 0 Lux with IR/white light |
| IR Cut Filter |
| 3x Mixed Zoom |
| Day/Night/Auto/Schedule-Switch |
| Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| BLC/3D DNR/HLC/SmartIR |
| DWDR |
| ≥ 52 dB |
| Yes |
| Up to 4 Masks |
| 1 Region |
| Yes |
| 2560 X 1440 |
| Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| CBR, VBR |
| Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| Main Profile/High Profile |
| Main Stream Supported |
| Main Profile |
| Main Stream Supported |
| Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| 4-12 mm (Mixed Zoom) |
| F1.6 |
| Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46° |
| M12*P 0.5 |
| • 4 mm Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) • 8 mm Detect: 150 m (493 ft) Observe: 63 m (205 ft) Recognize: 30 m (98 ft) Identify: 15 m (49 ft) |
| Pan: 0° to 332°, Tilt: 0° to 120° |
| Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s |
| Configurable from 8° to 35°/s |
| 300 |
| 8 patrols, up to 8 presets for each patrol |
| Yes; Auto restore to previous PTZ and lens status after power failure |
| Yes; Preset; Patrol Scan |
| Yes |
| Pan: 0° to 332°, Tilt: 0° to 120° |
| Quantity: 1 Range: 30m Wavelength: 850nm |
| Quantity: 3 Range: 30m |
| Auto/Scheduled/Always on/Always off |
| Two-Way Audio |
| Yes |
| Yes |
| Yes |
| 8KHz |
| Yes |
| 64 Kbps(G.711 alaw) |
| TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Yes |
| Open Network Video Interface (Profile S) |
| 3 Main Streams & 3 Sub-Streams |
| VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Yes |
| Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| N/A |
| Message Push |
| 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| N/A |
| Yes |
| DC Power Port |
| Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB |
| Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Yes |
| N/A |
| -30–60 °C |
| -40–60 °C |
| 95% or Less (Non-Condensing) |
| 95% or Less (Non-Condensing) |
| IP66 |
| CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
| 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3at, class 4) |
| Maximum: 14 W Typical (Day Mode): 2.9 W Typical (Night Mode with IR LED): 5.7 W Typical (Night Mode with White LED): 6.1 W |
| Plastic |
| 0.43 Kg |
| 0.66 Kg |
| 107*136*139 mm |

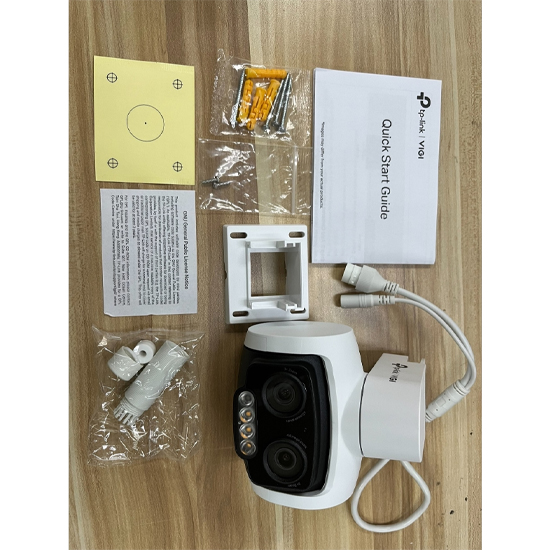

| VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| 1 Year |

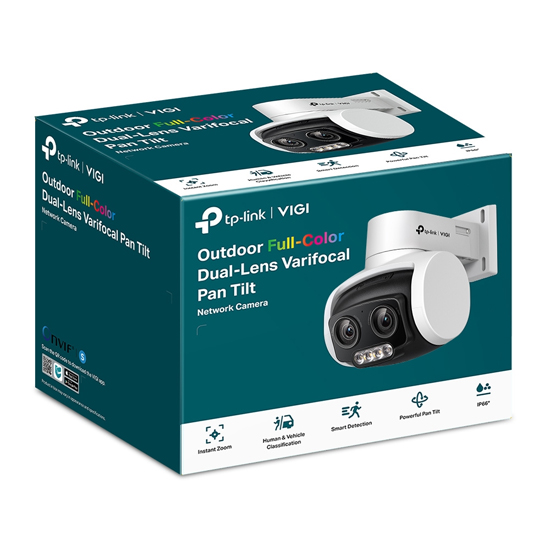

TP-Link VIGI C540V 4MP Dual Lens Full-Color PTZ IP Camera –
Advanced Surveillance Redefined
Enhance your security and surveillance capabilities with the TP-Link VIGI C540V, a slice-edge 4MP Binary Lens Full-Color PTZ IP Camera designed to deliver exceptional clarity, content, and control. Engineered for both day and night monitoring, the VIGI C540V is the perfect choice for businesses, artificial spots, retail stores, and large out-of-door surroundings that bear professional-grade monitoring and intelligent security results.
Crystal-Clear 4MPUltra-High Resolution
The VIGI C540V
features a important 4MP image detector that captures videotape at a high
resolution of 2560 × 1440 pixels, offering enhanced detail and clarity in every
frame. Whether you’re covering a wide area or zooming in for a close-up, you’ll
experience pictorial, sharp images that reveal every critical detail. The
camera’s advanced image processing ensures stable, noise-free footage indeed in
grueling lighting conditions.
Binary Lens withPan-Tilt-Zoom(PTZ) Functionality
This professional
surveillance camera is equipped with binary lenses — a fixed lens for panoramic
wide-area views and a blowup lens for detailed near-over monitoring. The
PTZ(Pan-Tilt-Zoom) point provides flexible control, allowing for 360 ° vertical
and 90 ° perpendicular movement. Its important optic drone lets you concentrate
on specific areas without losing image quality, making it ideal for tracking
moving objects or covering extensive zones like parking lots, storages, and peripheries.
Full-Color Night Vision with Smart IR
Experience round-the-timepiece
protection with Full-Color Night Vision, supported by a high-perceptivity
detector and supplemental lighting that delivers rich, various images indeed in
complete darkness. The Smart IR technology automatically adjusts IR intensity
to avoid overexposure at close distances, icing clear and balanced night
footage. No more coarse black-and-white videotape — only pictorial, detailed
recordings 24/7.
AI-Powered Smart Detection & Alerts
The VIGI C540V goes
beyond introductory stir discovery with AI-enhanced smart discovery features,
including mortal and vehicle bracket, line-crossing, intrusion discovery, and
region entrance/exit monitoring. This intelligent technology minimizes false admonitions
by fastening only on applicable movement, enhancing delicacy and response effectiveness.
Instant drive announcements and dispatch cautions keep you informed of
suspicious exertion in real-time.
Out-of-door-Ready with IP66 Waterproof Standing
Erected to repel
harsh surroundings, the TP-Link VIGI C540V boasts an IP66-rated waterproof casing,
making it resistant to rain, dust, and extreme temperatures. Its robust
construction ensures dependable performance in both inner and out-of-door settings,
offering durable security under any rainfall conditions.
Flexible Storage & Integration Options
Store your recordings
your way with multiple storehouse options including microSD cards(up to 256
GB), network videotape reporters(NVRs), or FTP waiters. The camera also
supports ONVIF and RTSP protocols, icing flawless integration with third-party bias
and VMS platforms.
Easy Setup and Remote Management via VIGI App
Installation is quick
and hassle-free with Power over Ethernet(PoE) support, reducing string clutter
and simplifying deployment. Manage and cover your camera ever using the TP-Link
VIGI app or VIGI Security Manager software, giving you complete access to live
views, recordings, and settings from anywhere.
TP-Link VIGI C540V 4MP Dual Lens Full-Color PTZ IP Camera is a hustler surveillance result that brings together cutting-edge imaging, AI intelligence, and each-rainfall continuity. Secure your property with confidence and clarity — choose VIGI C540V for professional-grade peace of mind.
