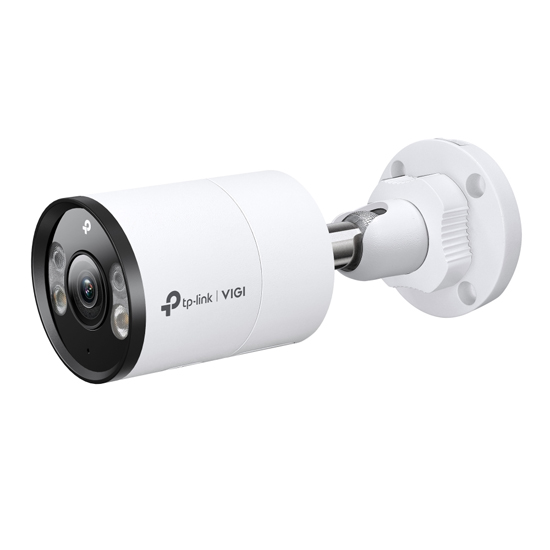

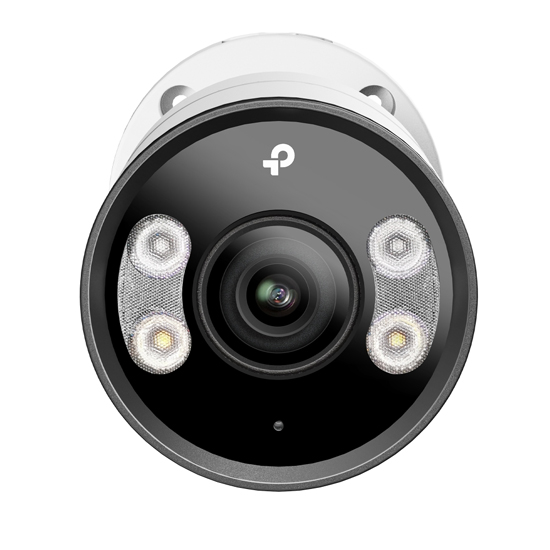

TP-Link VIGI InSight S385 4mm 5MP Full-Color Outdoor Bullet IP Camera

TP-Link VIGI InSight S385 4mm 5MP Full-Color Outdoor Bullet IP Camera

Model: VIGI InSight S385 4mm

Reviews: No reviews yet

Price: 0.00৳

Key Features:

  • Brand: TP-Link
  • Usage: Outdoor
  • Type: IP Camera
  • SNR: ≥ 52 dB
  • Bit Rate Control: CBR, VBR
  • Protection: IP67
  • Material: Metal
  • Warranty Details: 1 Year
Coming Soon
This product is not yet available. Stay tuned!

Specifications

General Information

Brand TP-Link
Usage Outdoor
Type IP Camera
Model VIGI InSight S385 4mm

Camera

Slow Shutter Yes
Day/Night Mechanism IR Cut Filter
Shutter Speed 1/3 to 1/10000 s
Day/Night Switch Unified/ Scheduled/ Auto
Image Sensor 1/2.7” Progressive Scan CMOS
Minimum Illumination 0.005 Lux; 0 Lux with IR/White light


OSD Setting Yes
Image Parameters Switch Yes
SNR ≥ 52 dB
ROI 1 Region
Privacy Mask Up to 4 Masks
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range (WDR) 120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

Video

Bit Rate Control CBR, VBR
Max. Resolution 3840 X 2160
H.264 Type High Profile
H.265 Type Main Profile*
H.264+ Main Stream Supported
H.265+ Main Stream Supported*
Video Bit Rate • Main Stream: 256 Kbps to 8 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Video Compression • Sub-Stream: H.265/H.264
• Main Stream: H.265+/H.265/H.264+/H.264
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

Lens

Aperture F1.6
Focal Length 2.8/4 mm
Lens Mount M12*P 0.5
Lens Type Fixed Focal Lens
DORI Distance • 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

• 4 mm
Detect: 107 m (350 ft) Observe: 44 m (146 ft)
Recognize: 21 m (70 ft) Identify: 11 m (35 ft
FOV • 2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

• 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°

Audio

Audio Input Yes
Audio Output Yes
Audio Compression Yes
Environment Noise Filtering Yes
Audio Sampling Rate 8KHz
Audio Communication Two-Way Audio
Audio Bit Rate 64 Kbps(G.711 alaw)

Network

ONVIF Yes
Cloud Yes
Web Browser • Safari® 11 and above
• Firefox® 52 and above
• Microsoft® Edge 91 and above
• Google Chrome® 57 and above
API ONVIF (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ALARM AND EVENT MANAGEMENT

Linkage Method N/A
Output Notification Message Push
Alarm Linkage • Message Push
• Audible Warning
• White Light Flashing
• Memory Card Video Recording
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection • Loitering Detection
• People Detection • Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Exception ( Illegal Login)
• Video Tampering Detection
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)

Interface

Alarm N/A
Audio N/A
Reset Button Yes
Built-in Speaker Yes
Power DC Power Port
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
On-Board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Angle Adjustment (Manual)

Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Illuminator

White LED • Quantity: 2
• Range: 30m
IR LED • Quantity: 2
• Range: 30m
• Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off

Environmental

Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storing/Storage Humidity 95% or Less (Non-Condensing)

Protection

Protection IP67

Certification

Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC

Power Type

Power Supply • PoE: 802.3af/at, class 0, Max. 11.5 W
• 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug

Deep Learning Function

People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§

Physical Specification

Material Metal
Net Weight 0.525 Kg
Package Content • Quick Start Guide
• VIGI Network Camera
• Mounting Accessories
• Waterproof Cable Attachments
Product Dimensions (L x W x H) 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)

Warranty Information

Warranty Details 1 Year

Description

TP-Link VIGI InSight S385 4 mm 5MP Full-Color out-of-door pellet IP Camera – Intelligent Clarity, All-Day Security

Take your security to the coming position with the TP-Link VIGI InSight S385 4 mm 5MP Full-Color out-of-door pellet IP Camera, a smart surveillance result designed to deliver demitasse-clear imaging, 24/7 protection, and intelligent monitoring. Engineered for out-of-door continuity, this high-performance camera is ideal for domestic, marketable, or artificial operations where clarity, color delicacy, and trustability are essential.

Ultra HD 5MP Resolution – Precision in Every Frame

The VIGI InSight S385 features a important 5MP detector(2880 × 1620) that captures high-resolution videotape with superior detail and clarity. This allows for sharper facial recognition, easier license plate identification, and better substantiation in the event of incidents. Whether it’s day or night, every frame delivers perfection and delicacy you can calculate on.

4 mm Fixed Lens – Balanced Field of View

Accoutred with a 4 mm fixed lens, the camera offers a medium-range field of view ideal for concentrated surveillance areas similar as erecting entrances, alleyways, corridors, or parking lots. The lens strikes a perfect balance between content area and detail, icing that nothing important goes unnoticed.

ColorPro Full-Color Night Vision – See in Vivid Detail, Indeed at Night

Conventional night vision switches to black and white in low-light settings, frequently losing vital color details. With ColorPro technology, the VIGI S385 ensures full-color visibility around the timepiece, using anultra-sensitive detector and integrated warm lighting to retain color information indeed in near-total darkness. Whether it’s a person’s apparel color or the color of a vehicle, you’ll have full visual environment at all times.

Smart AI Discovery – Smarter Monitoring, Smaller False admonitions

Boost your security system’s effectiveness with AI-powered smart discovery features. The VIGI InSight S385 supports intelligent functions like mortal and vehicle bracket, stir discovery, line-crossing discovery, and intrusion cautions. These advanced features help exclude false admonitions caused by creatures, wind, or moving murk so you only get notified when real pitfalls are detected.

IP67-Rated Weatherproof Design – Reliable in Every Condition

Erected for the outside, the IP67-rated casing of the VIGI S385 protects against dust, rain, and harsh rainfall. From sweltering heat to torrential cloudbursts, this rugged pellet camera keeps working in extreme conditions, making it ideal for time-round use in any terrain.

Smart Compression – Save More, Store More

Enjoy longer recordings with reduced bandwidth consumption thanks to H.265 contraction technology. Compared to traditional H.264, this advanced format minimizes storehouse space operation without compromising videotape quality, making it perfect for installations with multiple cameras and limited storehouse capacity.

Flexible Storage Options – Original and Network results

Choose how and where your footage is stored. The VIGI S385 supports microSD cards over to 256 GB, FTP waiters, and integration with TP-Link VIGI NVRs. This gives you full inflexibility to apply original storehouse, network-grounded archiving, or mongrel systems as demanded.

PoE Support – Simplified Installation with Single-Cable Setup

Save time and simplify installation using Power over Ethernet(PoE). With PoE, one Ethernet string delivers both power and data, barring the need for fresh wiring and making the camera easy to install in both new and being systems.

ONVIF comity – Seamless Integration

The TP-Link VIGI InSight S385 is completely compatible with ONVIF norms, allowing flawless integration with third-party NVRs and VMS platforms. Whether you are erecting a new security structure or expanding an being system, this camera fits fluently into any professional surveillance setup.

Conclusion

The TP-Link VIGI InSight S385 4 mm 5MP Full-Color out-of-door pellet IP Camera combines superior image quality, intelligent discovery, and full-color night vision in a rugged, waterproof design. With its professional-grade features and easy integration, it offers a future-ready surveillance result for anyone serious about out-of-door security. Trust TP-Link’s VIGI series to deliver dependable protection, sharp illustrations, and smarter monitoring — day or night, rain or shine.
