Price: 0.00৳
TP-Link DS-P7001-04 DeltaStream 4 Port Pizza Box GPON OLT
| 10G GPON Optical Line Terminal (OLT) |
| 9/125μm SMF (Single Mode Fiber) |
| Class C+ |
| 20km |
| • 4× 2.5G PON Ports • 1× 10 Gbps SFP+ Uplink Port • 1× 10/100/1000 Mbps RJ45 Uplink Port • 1× RJ45 Console Port • 1× RJ45 MGMT Port • 1× Alarm Port (Reserved) |
| • Tx: 1490 nm • Rx: 1310 nm |
| Dual Power Supplies • AC: 100V~240V, 50/60Hz • DC: -38.4V~-72V |
| Max. 58W |
| 440 × 180× 44 mm |
| • OLT Device • Power Cord and Console Cable • Installation Guide • Mouting Brackets, Screws and Rubber Feet |
| Black |
| Reset Button |
| • Downstream: 2.5 Gbps • Upstream: 1.25 Gbps |
| SC/UPC |
| • Large-Scale Devices Management • OLT Batch Configure, Upgrade, Reboot • Multi-Site Management • Intelligent Network Monitoring • Real-time Network Overview |
| 1 Year Warranty |

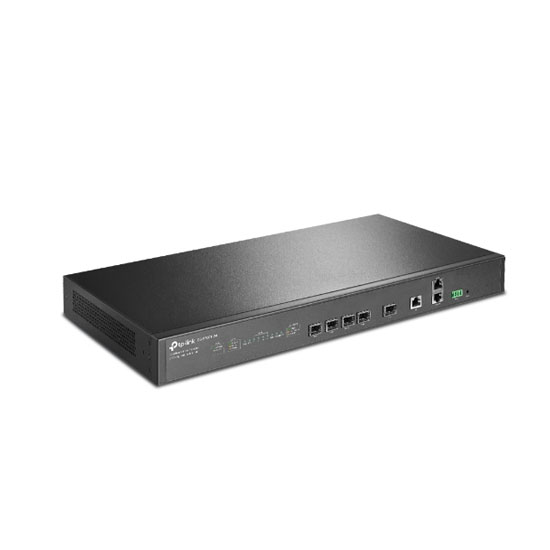

TP-Link DS-P7001-04 DeltaStream 4 Port Pizza Box GPON OLT
The TP-Link DS-P7001-04 DeltaStream 4 Port GPON OLT (Optical Line Terminal) is a compact, high-performance fiber networking solution designed for small to medium-scale deployments. Housed in a sleek "pizza box" design, this OLT offers space-saving installation while delivering reliable GPON connectivity for Fiber-to-the-Home (FTTH), residential broadband, and enterprise applications.
Featuring 4 GPON ports , the DS-P7001-04 enables service providers to deliver high-speed internet, voice, and IPTV services over a single fiber infrastructure. It adheres to ITU-T G.984.x standards , ensuring seamless compatibility with a wide range of ONUs (Optical Network Units) from both TP-Link and third-party vendors. This makes it an ideal choice for scalable, multi-vendor network environments.
The device supports essential Layer 2 switching features , including VLAN tagging, Quality of Service (QoS), traffic policing, and security functions such as DHCP snooping and port isolation. These capabilities allow for efficient bandwidth management, prioritization of critical traffic, and enhanced network security. The OLT can be easily managed via CLI (Command Line Interface) or SNMP, offering flexible configuration and monitoring options.
Engineered for reliability, the DS-P7001-04 features a fanless design for silent operation and long-term durability. Its metal chassis ensures stable performance even in challenging environmental conditions. The compact form factor allows for easy deployment in tight spaces such as telecom closets, server rooms, or customer premises.

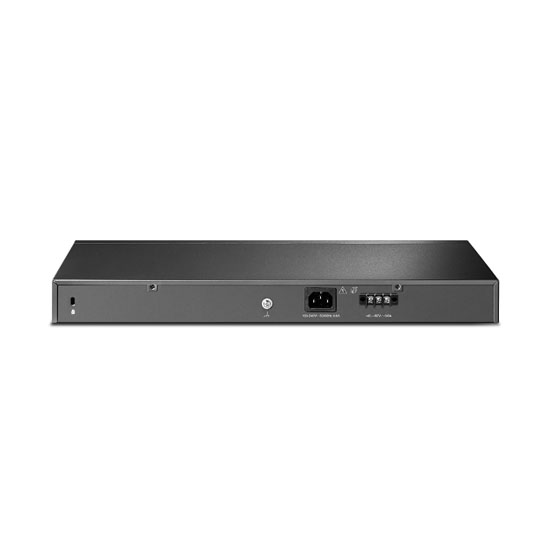

Supporting both AC and DC power inputs , the OLT provides flexibility and redundancy, ensuring continuous service availability. Whether used in residential MDU (Multi-Dwelling Unit) setups, small business networks, or edge access points, the TP-Link DS-P7001-04 DeltaStream GPON OLT delivers a cost-effective, scalable, and high-performance foundation for next-generation fiber-based networks
