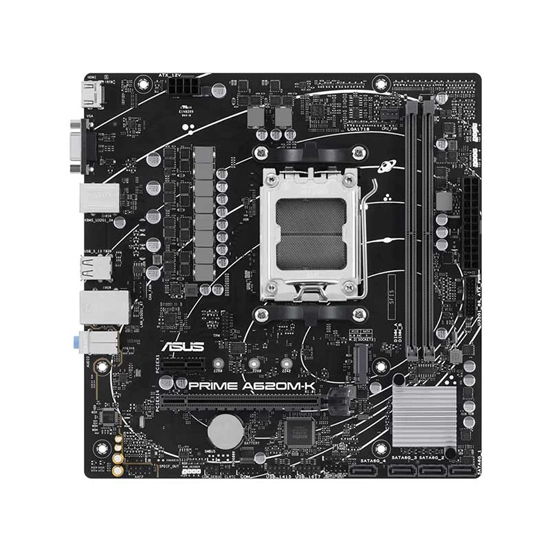

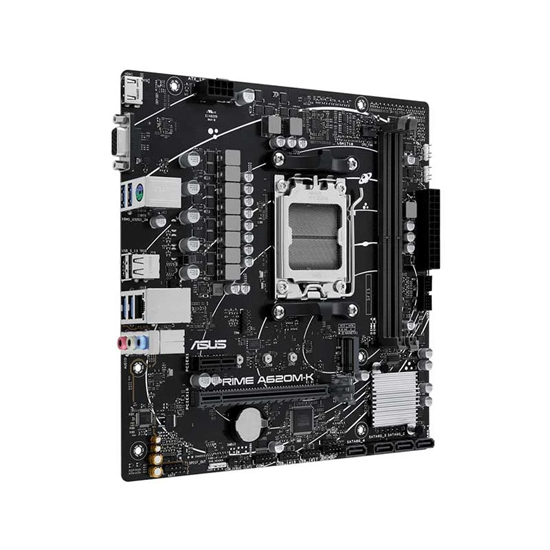

Asus PRIME A620M-K DDR5 AMD AM5 Socket Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

Asus PRIME A620M-K DDR5 AMD AM5 Socket Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Asus
৳12800

Key Features

  • Body Color: Black
  • Memory Type: DDR5
  • Memory Max.: 96GB
  • Approx Power Consumption: 60W
  • Manufacturing Warranty: 3 Years Warranty
Physical Specification
Body Color Black
Form Factor Micro-ATX
CPU
Chipset Brand AMD
Chipset AMD A620
Sockets Supported AM5
Supported CPU Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory
Memory Type DDR5
Memory MHz 7200+OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Memory Channel Dual
Memory Slot 2
Memory Max. 96GB
Storage
Storage Interface 6.0Gb/s
M.2/SSD Expansion Slot 1
M.2/SSD Expansion Slot Details 1 x M.2 type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Graphics
Graphix Integrated
Graphics Chipset Integrated With Processor
PCI Express Slot 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot
Audio Sound & Microphone
Audio Chipset Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel 7.1
Networking & Connectivity
LAN Chipset Realtek 1Gb Ethernet
LAN Speed (Mbps) 10/ 100/ 1000Mbps
Ports & Slots
USB Port 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
VGA Port 1
HDMI Port 1
SATA Port 4
Technical Info
Cable Management Front
Raid Support 0/ 1/ 10.
RGB Support RGB
RGB Sync Aura Sync
Power Type
Approx Power Consumption 60W
Bios Information
BIOS Type 256 Mb Flash ROM
BIOS Model UEFI AMI BIOS
Software / Compatibility
Supported Operating System Windows 10, Windows 11
Compatible Products AMD AM5 Socket Ryzen 9000 & 8000 & 7000 Series Processors
Additional Info / Features
Others Manageability: WOL by PME, PXE, Accessories: Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x I/O Shield, 1 x Screw package for M.2 SSD, Documentation, 1 x User guide
Warranty Information
Manufacturing Warranty 3 Years Warranty

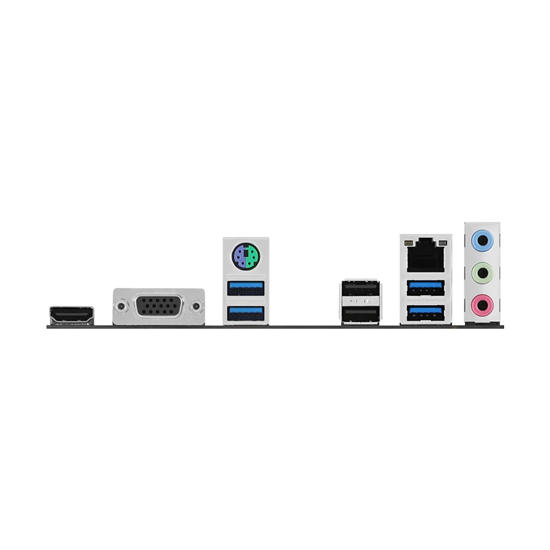

The Asus PRIME A620M-K DDR5 AMD AM5 Socket Mother is engineered for both office and home usage. It supports Ryzen 7000, 8000, and 9000 Series Processors through the AMD A620 chipset and AM5 socket. This system features DDR5 memory support, enabling speeds of over 7200+ (OC) and accommodating up to 96GB of RAM distributed across the memory slots. terms of storage, it provides one M.2 slot (Socket 3, M key, type 2280) that supports PCIe 4.0 x4 mode, along with four SATA 6Gb/s ports, offering sufficient options for both traditional and modern storage solutions. Network connectivity is facilitated by the Realtek RTL8111H Gigabit LAN, ensuring a smooth and stable internet experience. The audio quality is enhanced by the Realtek ALC897 Audio Codec, which delivers high-quality sound for entertainment purposes. The back panel I/O ports include one VGA port, one HDMI port, two USB 3.2 Gen1 ports, four USB .0 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities consist of one PCIe .0 x16 slot and one PCIe 3.0 x1 slot, enabling the of more hardware components. With its micro-ATX form factor (22.6 cm x 22.1), this motherboard is ideal for compact PC builds, and it includes six mounting holes for secure installation. Furthermore, it is supported by 3-year warranty, providing reliability and peace of mind.
