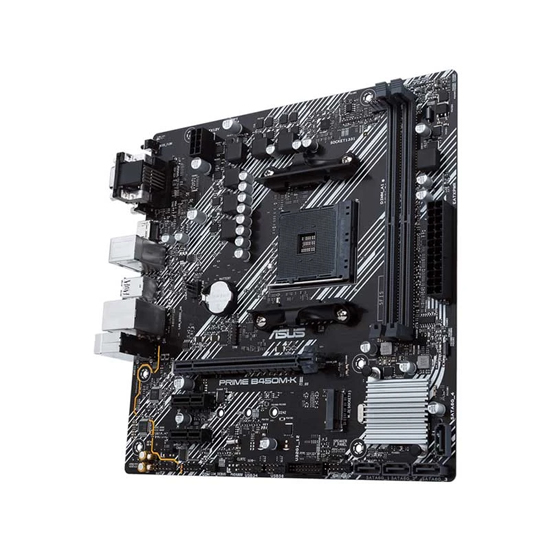

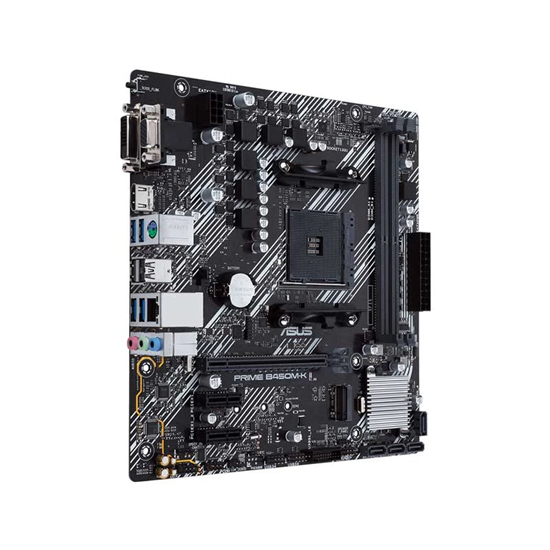

Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Asus
৳9050 ৳10500 Save 14%

Key Features

  • Body Color: Black
  • Memory Type: DDR4
  • Memory Max.: 64GB
  • Approx Power Consumption: 60W
  • Manufacturing Warranty: 03 Years
Graphics
PCI Express Slot 1 x PCIe 3.0 x16 (x16 mode) (x8 mode, x4 mode), 2 x PCIe 2.0 x1
Graphics Integrated
Graphics Chipset AMD Vega Graphics support
Audio Sound & Microphone
Audio Chipset Realtek ALC887/897
Audio Channel 7.1
Networking & Connectivity
LAN Chipset Realtek RTL8111H
LAN Speed (Mbps) 10/100/1000Mbps
Ports & Slots
USB Port 2 x USB 2.0, 4 x USB 3.2 Gen 1 (blue) Type-A
VGA Port 1
DVI Port 1
HDMI Port 1
SATA Port 4 x SATA
TPM Port 1
COM Port 1
Technical Info
Cable Management Front
Raid Support 0, 1, 10
Power Type
Approx Power Consumption 60W
Physical Specification
Form Factor Micro-ATX
Body Color Black
Bios Information
BIOS Type 1 x 256 Mb Flash ROM
BIOS Model UEFI AMI BIOS
Software / Compatibility
Supported Operating System Windows 10, 7
Warranty Information
Manufacturing Warranty 03 Years
CPU
Chipset Brand AMD
Chipset AMD B450
Sockets Supported AM4
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/ 2nd/ 1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Memory
Memory Type DDR4
Memory MHz 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Memory Channel Dual
Memory Slot 2
Memory Max. 64GB
Storage
Storage Interface 6.0Gb/s
M.2/SSD Expansion Slot 1
M.2/SSD Expansion Slot Details 1 x M.2 (1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode))

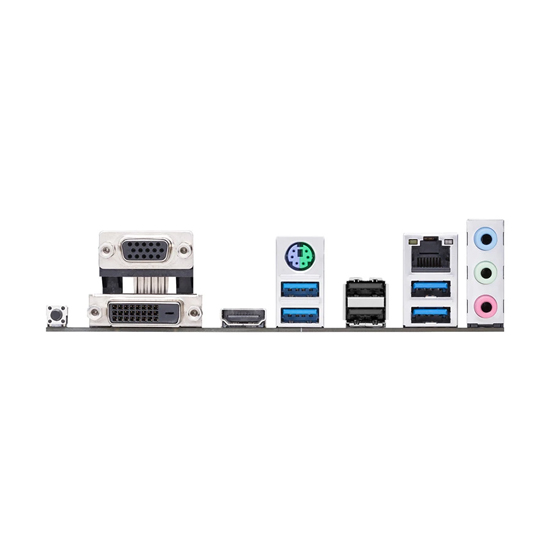

The Asus PRIME B450M-K II DDR4 AMD AM4 Micro-ATX Motherboard is specifically designed for gamers and enthusiasts. It supports AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series processors using the AMD B450 chipset and AM4 socket. This motherboard features dual-channel DDR4 memory support, with speeds reaching up to 4400 (O.C.) and a maximum capacity of 64GB across two memory slots. In terms of storage, it provides one M.2 slot (Socket 3, M key type 2242/2260/2280) that supports PCIe 3.0 x4 mode, with four SATA 6Gb/s ports ample options for traditional and modern storage solutions. Network connectivity is facilitated by Realtek RTL8111H Gigabit, which guarantees and stable internet performance. The audio experience is enhanced the Realtek ALC897 Audio Codec, delivering high-quality sound for entertainment purposes. The back panel I/O ports include one VGA port, one DVI-D port, one HDMI port, two USB 3.2 Gen1 ports, four 2.0 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion feature one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots, allowing for additional hardware components. With a micro-ATX form factor (22.6 cm x22.1 cm), this motherboard is suitable for compact PC builds and includes six mounting holes for secure installation. Furthermore, it is by a 3-year warranty, providing reliability and peace of mind.
