Asus PRIME B650M-F DDR5 AMD Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

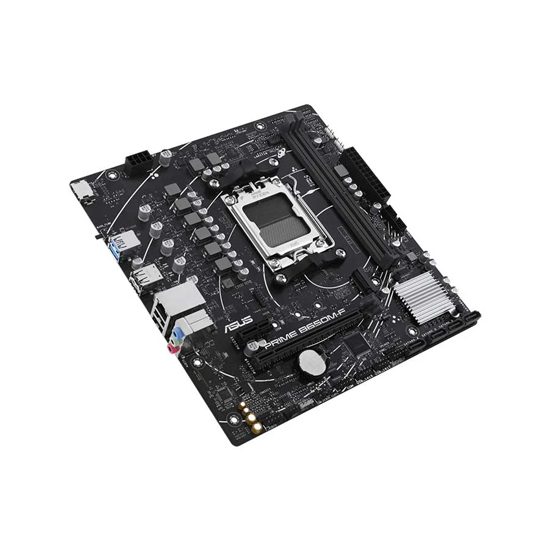

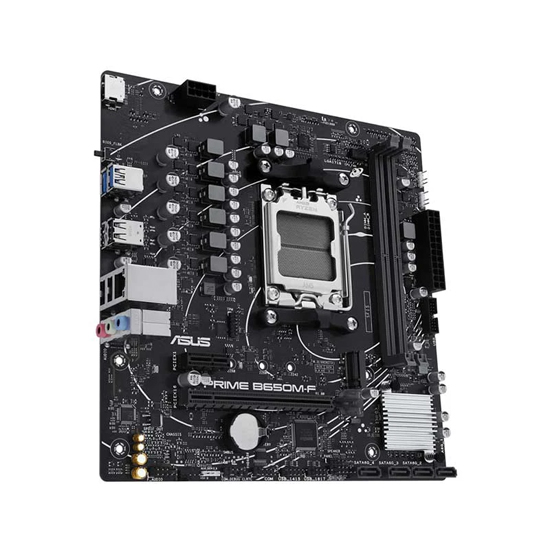

Asus PRIME B650M-F DDR5 AMD Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Asus
৳15000 ৳15799 Save 5%

Key Features

  • Body Color: Black
  • Chipset: AMD B650
  • Memory Type: DDR5
  • Memory Max.: 96GB
  • Manufacturing Warranty: 3 Years Warranty
Physical Specification
Body Color Black
Form Factor Micro-ATX
CPU
Chipset Brand AMD
Chipset AMD B650
Sockets Supported AM5
Supported CPU Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Memory
Memory Type DDR5
Memory MHz 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 Non-ECC, Un-Buffered Memory
Memory Channel Dual
Memory Slot 2
Memory Max. 96GB
Storage
Storage Interface 6.0Gb/s
M.2/SSD Expansion Slot 1
M.2/SSD Expansion Slot Details 1 x M.2, Type 2242/2260/2280 (Supports PCIe 4.0 x4 Mode)
Graphics
Graphics Integrated
Graphics Chipset Integrated With Processor
PCI Express Slot 1 x PCIe 4.0 x16 Slot, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 4.0 x1 Slot
Audio Sound & Microphone
Audio Chipset Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel 7.1
Networking & Connectivity
LAN Chipset 1 x Realtek 1Gb Ethernet
LAN Speed (Mbps) 10/ 100/ 1000Mbps
Ports & Slots
USB Port 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
HDMI Port 1
SATA Port 4
Technical Info
Cable Management Front
Raid Support 0/ 1/ 10
RGB Support RGB
RGB Sync AURA Sync
Bios Information
BIOS Type 256 Mb Flash ROM
BIOS Model UEFI AMI BIOS
Software / Compatibility
Supported Operating System Windows 10, Windows 11
Compatible Products AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Additional Info / Features
Feature ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync
Others Manageability: WOL by PME, PXE, Accessories: Cables: 2 x SATA 6Gb/s Cables, Miscellaneous: 1 x I/O Shield, 1 x M.2 Anchor, Documentation, 1 x Quick Start Guide
Warranty Information
Manufacturing Warranty 3 Years Warranty

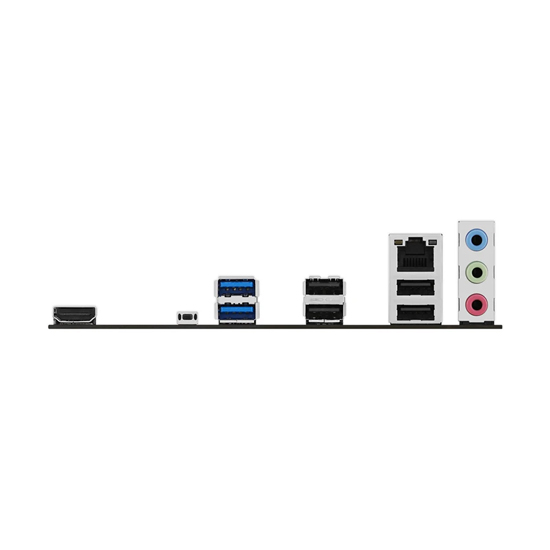

The Asus PRIME B650M-F DDR5 AMD Motherboard is a versatile and reliable motherboard designed to support AMD Ryzen 7000 Series/8000 Series Desktop Processors with the AMD B650 chipset. It features dual-channel DDR5 memory support, with speeds of 7200+ (O.C.)/7000 (O.C.)/6800 (O.C.)/6600 (O.C.)/6400 (O.C.)/6200 (O.C.)/6000 (O.C.)/5800 (O.C.)/5600 (O.C.)/5400 (O.C.)/5200/5000/4800 MHz and up to 96GB of RAM across two memory slots, making it suitable for a variety of computing tasks. For storage, the motherboard offers two M.2 slots (Socket 3, M key, type 2242/2260/2280/22110) that support PCIe 4.0 x4 mode, and four SATA 6Gb/s ports, providing ample options for both traditional and modern storage solutions. Network connectivity is provided by Realtek RTL8111H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is enhanced with Realtek ALC897 Audio Codec, delivering high-quality sound for your entertainment needs.The back panel I/O ports feature one HDMI port, one VGA port, two USB 2.0 ports, four USB 5Gbps ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities include one PCIe 4.0 x16 slot and one PCIe 4.0 x1 slot, allowing for additional hardware components. With its micro-ATX form factor (24.4 cm x 21.1 cm), the motherboard is suitable for compact PC builds, and it includes six mounting holes for secure installation. The motherboard is supported by a three-year manufacturer's warranty, ensuring reliability and providing peace of mind. Overall, the Asus PRIME B650M-F DDR5 AMD Motherboard is an excellent choice for building a powerful and efficient PC.
