Asus PRIME B760M-F DDR5 Intel Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

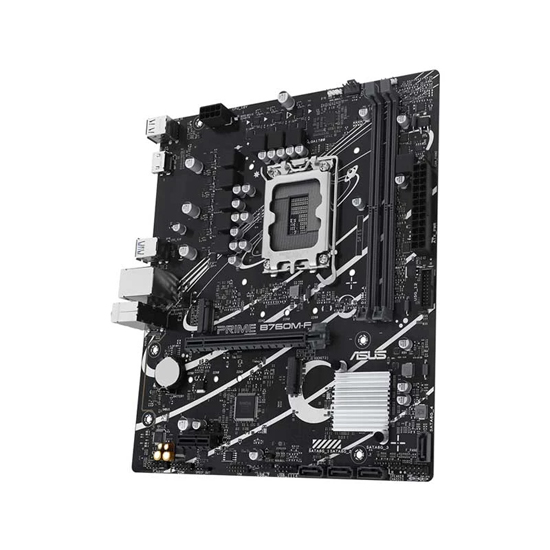

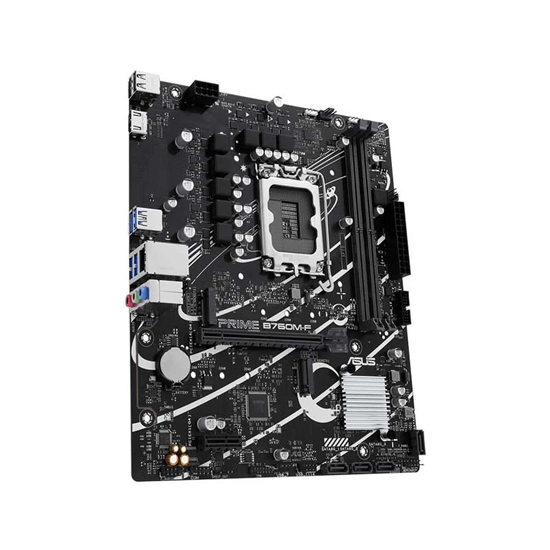

Asus PRIME B760M-F DDR5 Intel Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Asus
৳14900 ৳15700 Save 5%

Key Features

  • Body Color: Black
  • Chipset: Integrated
  • Memory Max.: 96GB
  • Approx Power Consumption: 60W
  • Manufacturing Warranty: 3 Years Warranty
Physical Specification
Body Color Black
Form Factor Micro-ATX
CPU
Chipset Brand Intel
Chipset Integrated
Sockets Supported LGA1700
Supported CPU Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold And Celeron Processors
Generation 12th/13th/14th
Memory
Memory Type DDR5
Memory MHz 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-Buffered Memory
Memory Channel Dual
Memory Slot 2
Memory Max. 96GB
Storage
Storage Interface 6.0Gb/s
M.2/SSD Expansion Slot 2
M.2/SSD Expansion Slot Details 2 x M.2 (M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 x4 Mode), M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 x4 Mode)
Graphics
Graphics Chipset Integrated With Processor
PCI Express Slot 1 x PCIe 4.0 x16 (Intel Core Processors (14th & 13th & 12th Gen)), 1 x PCIe 4.0 x1 (Intel B760 Chipset)
Audio Sound & Microphone
Audio Chipset Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel 7.1
Networking & Connectivity
LAN Chipset 1 x Realtek 1Gb Ethernet
LAN Speed (Mbps) 10/100/1000Mbps
Ports & Slots
USB Port 2 x USB 2.0 Type-A, 4 x USB 5Gbps Type-A
HDMI Port 1
SATA Port 4 x SATA
TPM Port 1
COM Port 1
Technical Info
Cable Management Front
Heatsink Yes
Raid Support 0, 1, 5, 10
RGB Support ARGB
RGB Sync AURA Sync
RGB Connector 2 x Addressable Gen 2 Headers
Power Type
Approx Power Consumption 60W
Bios Information
BIOS Type 128 Mb Flash ROM
BIOS Model UEFI AMI BIOS
Software / Compatibility
Supported Operating System Windows 11, 10
Compatible Products 14th, 13th, And 12th Gen Intel Core, Pentium Gold And Celeron Processors
Warranty Information
Manufacturing Warranty 3 Years Warranty

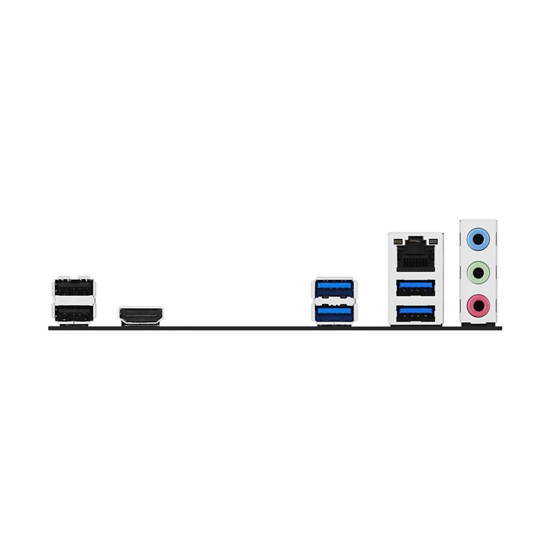

The Asus PRIME B760M-F mATX Motherboard is a versatile and reliable motherboard designed to support Intel's 14th, 13th, and 12th Gen Core processors (LGA1700 socket). It features the Intel B760 chipset, ensuring compatibility with a wide range of components and providing stable performance for everyday computing tasks. This motherboard supports dual-channel DDR5 memory with speeds of 8000 (O.C.)/7800 (O.C.)/7600 (O.C.)/7400 (O.C.)/7200 (O.C.)/7000 (O.C.)/6800 (O.C.)/6600 (O.C.)/6400 (O.C.)/6200 (O.C.)/6000 (O.C.)/5800 (O.C.)/5600/5400/5200/5000/4800 MHz and up to 96GB of RAM across two memory slots. For storage, it offers two M.2 slots (Socket 3, M key, type 2242/2260/2280/22110) that support PCIe 4.0 x4 mode, and four SATA 6Gb/s ports, providing ample options for both traditional and modern storage solutions. Network connectivity is provided by Realtek RTL8111H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is enhanced with Realtek ALC897 Audio Codec, delivering high-quality sound for your entertainment needs. The back panel I/O ports feature one HDMI port, one VGA port, two USB 2.0 ports, four USB 5Gbps ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities include one PCIe 4.0 x16 slot and one PCIe 4.0 x1 slot, allowing for additional hardware components. With its micro-ATX form factor (24.4 cm x 21.1 cm), the motherboard is suitable for compact PC builds, and it includes six mounting holes for secure installation. Overall, the Asus PRIME B760M-F mATX Motherboard is an excellent choice for building a powerful and efficient PC.
