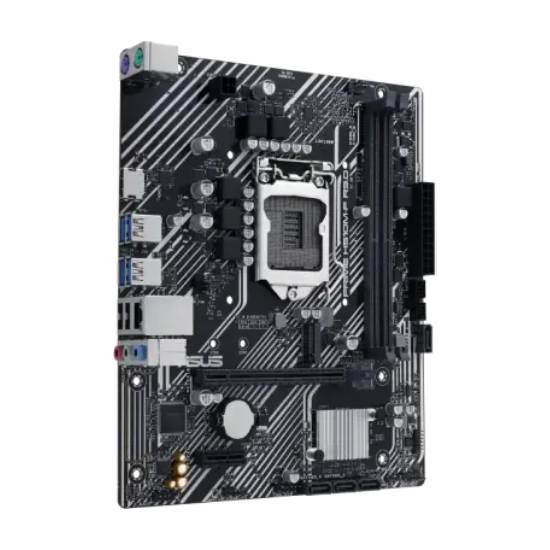

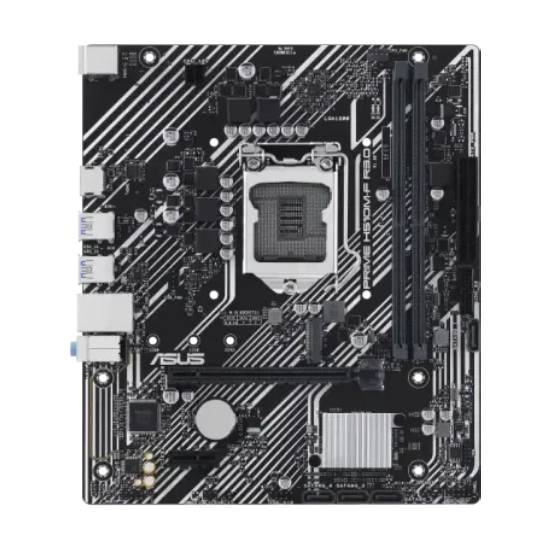

ASUS PRIME H510M-F R3.0 LGA1200 Micro ATX DDR4 Intel Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

ASUS PRIME H510M-F R3.0 LGA1200 Micro ATX DDR4 Intel Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Asus
৳9950 ৳12500 Save 20%

Key Features

  • Chipset: Intel H470 Chipset
  • Memory Type: DDR4
  • BIOS Type: 128 Mb Flash ROM, UEFI AMI BIOS
  • CPU Socket: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Slots: 2 x DIMM
  • Maximum Memory: Max. 64GB
Physical Specification
Form Factor mATX Form Factor
8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
Bios Information
BIOS Type 128 Mb Flash ROM, UEFI AMI BIOS
Ports & Slots
PCI-E Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel 10th Gen processors support PCIe 3.0 x16
Intel H470 Chipset 1 x PCIe 3.0 x1 slot
Slots 2 x DIMM
HDMI 1x HDMI
USB Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 5Gbps header supports 2
additional USB 5Gbps ports
1 x USB 2.0 header supports 2
additional USB 2.0 ports
RJ45 (LAN Port) 1 x Realtek 1Gb Ethernet port
Internal I/O Ports Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (F_AUDIO)
1 x Speaker header
1 x 10-1 pin System Panel header

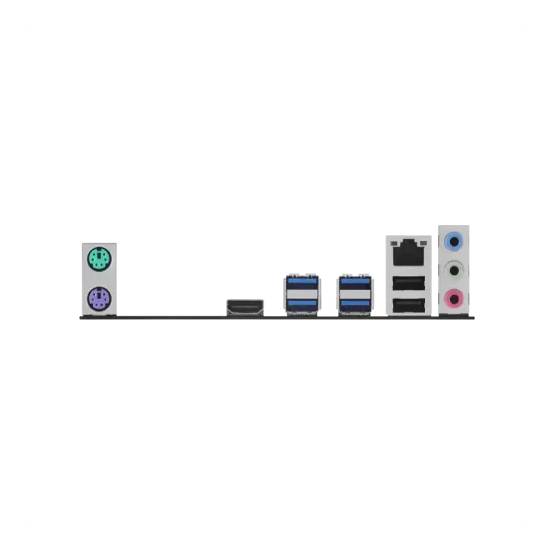

Back Panel I/O Ports
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
TPM Port 1 x SPI TPM header (14-1 pin)
Processor
CPU Socket Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
Supported Memory 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively,
others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
Maximum Memory Max. 64GB
Memory Type DDR4
Audio Sound & Microphone
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features - Audio Shielding
- Dedicated audio PCB layers
Warranty Information
Warranty 3 Years Warranty
CPU
Chipset Intel H470 Chipset
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Graphics
Graphics Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates

ASUS PRIME H510M-F R3.0 LGA1200 Micro ATX DDR4 Intel Motherboard

The ASUS PRIME H510M-F R3.0 is a compact and dependable micro-ATX motherboard engineered for Intel’s 10th and 11th generation LGA 1200 processors. Its design prioritizes practicality and stability, making it an excellent choice for budget-conscious builders or small-form-factor systems that don't compromise on essential performance.
Supporting up to 64 GB of DDR4 memory across two DIMM slots, this board offers dual-channel architecture with support for high-speed modules (up to 3200 MHz via overclocking). It also supports Intel’s XMP profiles, allowing you to extract extra performance from compatible RAM. Power delivery to the CPU is stable and efficient, backed by a reliable VRM design that’s cooled through strategic heatsinking, helping ensure longevity and consistent performance.
For graphics and expansion, the board includes a PCIe slot that supports PCIe 4.0 when used with 11th Gen Intel CPUs, giving you room for modern graphics cards. Storage options are versatile: there is one M.2 slot for NVMe SSDs, as well as four SATA 6 Gb/s ports for traditional drives, giving flexibility for both high-speed and bulk storage.
Connectivity includes a full suite of USB ports (fast 5 Gbps Type-A and USB 2.0) on the rear panel and front-panel headers, making it easy to hook up a variety of peripherals. A single HDMI output supports video for CPUs with integrated graphics. For networking, you’ll find a Gigabit Ethernet port for stable wired connections.
Cooling is well supported via hybrid fan headers, allowing the board to dynamically read temperature inputs and adjust fan speeds. The PCH also has a dedicated heatsink to handle thermal loads.
Durability and reliability are enhanced by ASUS’ 5X Protection III, which provides hardware-level safety features including voltage spike protection and reinforced slots. Diagnostics are made easier with integrated Q-LED indicators that quickly highlight boot issues like CPU, DRAM, VGA, or boot errors.
In summary, the ASUS PRIME H510M-F R3.0 motherboard delivers a robust and efficient platform for general-purpose builds, small gaming PCs, or productivity systems, offering essential features, compact form, and long-term dependability.
