ASUS TUF GAMING B450M-PRO II AMD AM4 Micro-ATX Gaming Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

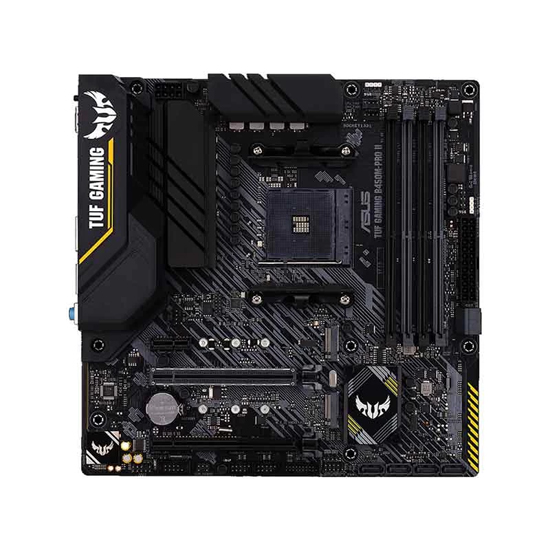

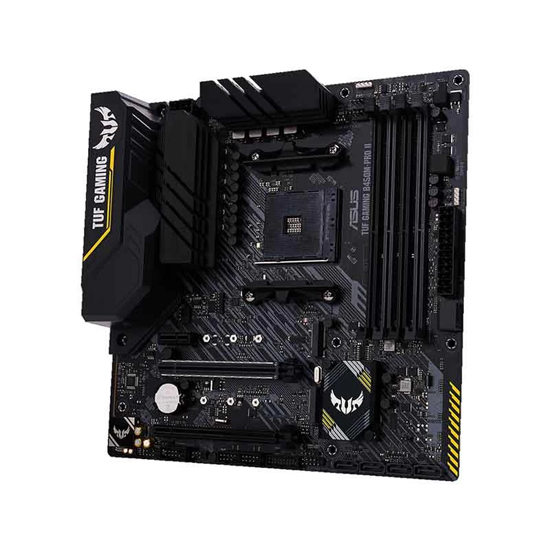

ASUS TUF GAMING B450M-PRO II AMD AM4 Micro-ATX Gaming Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | Out of Stock | Brand: Asus
৳13999 ৳14890 Save 6%

Key Features

  • Body Color: Black
  • Memory Type: DDR4
  • Memory Max.: 128GB
  • Approx Power Consumption: 60W
  • Manufacturing Warranty: 3 Years
Physical Specification
Body Color Black
Form Factor Micro-ATX
CPU
Chipset Brand AMD
Chipset AMD B450
Sockets Supported AM4
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/ 2nd/ 1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Memory
Memory Type DDR4
Memory MHz 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz
Memory Channel Dual
Memory Slot 4
Memory Slot (Additional Info) 4 x DDR4 DIMM
Memory Max. 128GB
Memory Max. (Additional Info) 128GB
Storage
Storage Interface 6.0Gb/s
M.2/SSD Expansion Slot 2
M.2/SSD Expansion Slot Details 2 x M.2 (1 x M.2, 2242/ 2260/ 2280, PCIE 3.0 x4 and SATA), (1 x M.2, 2242/ 2260/ 2280, SATA)
Graphics
Graphics Integrated
Graphics Chipset AMD Vega Graphics support
Multi-GPU Support AMD 2-Way CrossFireX Technology
PCI Express Slot 1 x PCIe 3.0/ 2.0 x16 (3rd/ 2nd/ 1st Gen AMD Processors), 1 x PCIe 3.0/ 2.0 x16 (x8 mode, 2nd and 1st Gen AMD Ryzen with Graphics), 1 x PCIe 3.0/ 2.0 x16 (max at x4 mode, Athlon with Radeon Graphics), 1 x PCIe 2.0 x16 (x4 mode), 1 x PCIe 2.0 x1 (AMD B450)
Audio Sound & Microphone
Audio Chipset Realtek ALC S1200
Audio Channel 7.1
Networking & Connectivity
LAN Chipset Realtek RTL8111H 1Gb Ethernet
LAN Speed (Mbps) 10/100/1000Mbps
Ports & Slots
USB Port 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
HDMI Port 1
DisplayPort (DP) 1
SATA Port 6 x SATA
TPM Port 1
COM Port 1
Technical Info
Cable Management Front
Heatsink Yes
CrossFire Support Yes
Raid Support 0, 1, 10
RGB Support RGB
RGB Sync AURA Sync
RGB Connector 2 x Aura RGB Strip Headers
Power Type
Approx Power Consumption 60W
Bios Information
BIOS Type 256 Mb Flash ROM
BIOS Model UEFI AMI BIOS
Software / Compatibility
Supported Operating System Windows 10 / 7
Compatible Products Sockets Supported AM4: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/ 2nd/ 1st Gen
Warranty Information
Manufacturing Warranty 3 Years

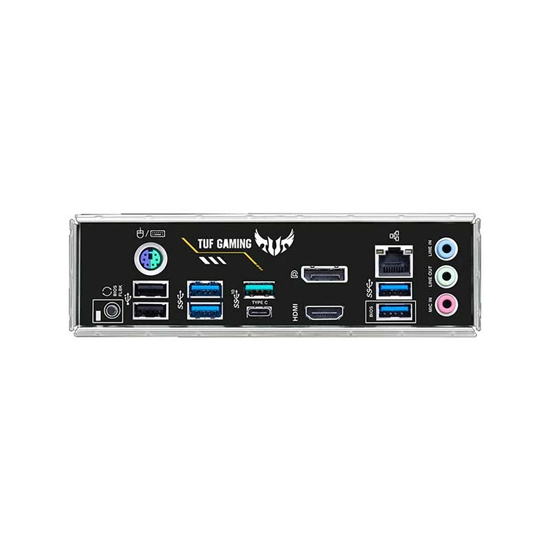

The ASUS TUF GAMING B450M-PRO II AMD AM4 Micro-ATX Gaming Motherboard caters to gamers and enthusiasts. It is compatible with a wide range of AMD processors including the Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, 3rd Gen Ryzen, 2nd Gen Ryzen, 1st Gen Ryzen, as well as Ryzen and Athlon with Radeon Vega Graphics, utilizing the AMD B450 chipset and AM4 socket. This motherboard supports dual-channel DDR4 memory, with speeds reaching up to 4400 (O.C.) MHz and a maximum capacity of 128GB across four memory slots. It provides two M.2 slots (Socket 3, M key, types 2242/2260/2280/22110) compatible with PCIe 3.0 x4 mode, alongside six SATA 6Gb/s ports for extensive storage options. Network connectivity is ensured by the Realtek RTL8111H Gigabit LAN for a consistent internet experience. Audio quality is elevated by the Realtek S1200A Audio Codec. The back panel I/O includes an HDMI port, a DisplayPort, two USB 3.2 Gen2 ports (Type-A and Type-C), two USB 3.2 Gen1 ports, four USB 2.0 ports, and three Audio jacks include Mic In, Line Out, and Line In. It also features one PCIe 3.0 x16 slot and one PCIe 3.0 x1 slot for additional components. The micro-ATX form factor (24.4 cm x 24.4 cm) makes it ideal for compact builds, and it comes with six mounting holes for installation. A 3-year warranty ensures reliability and customer satisfaction.
