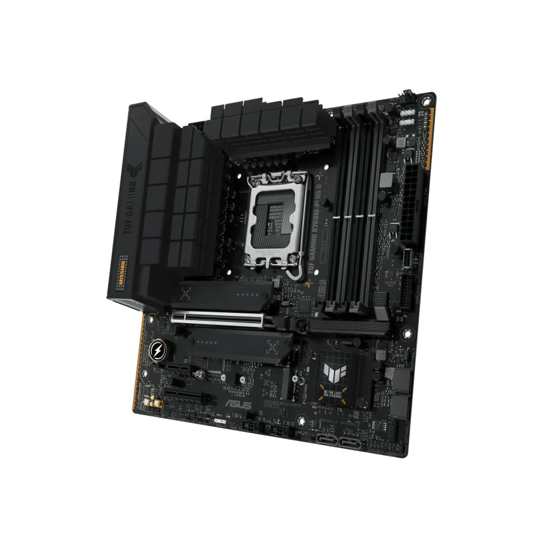

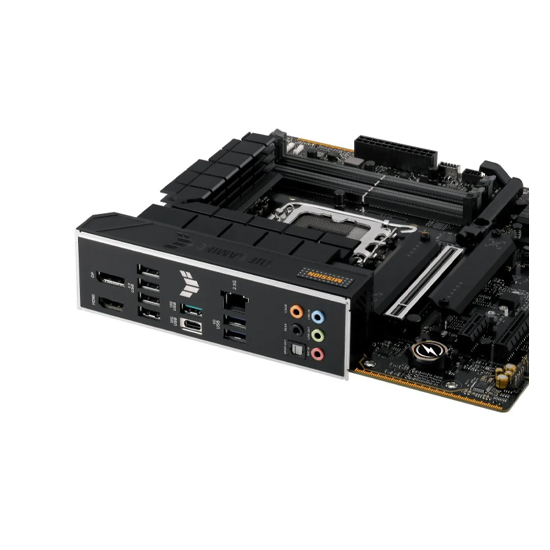

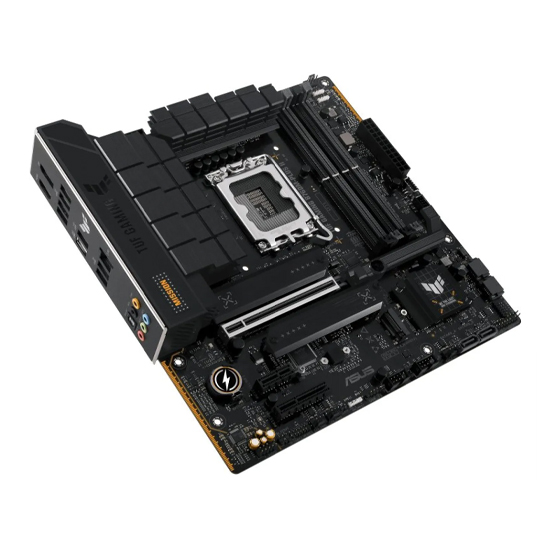

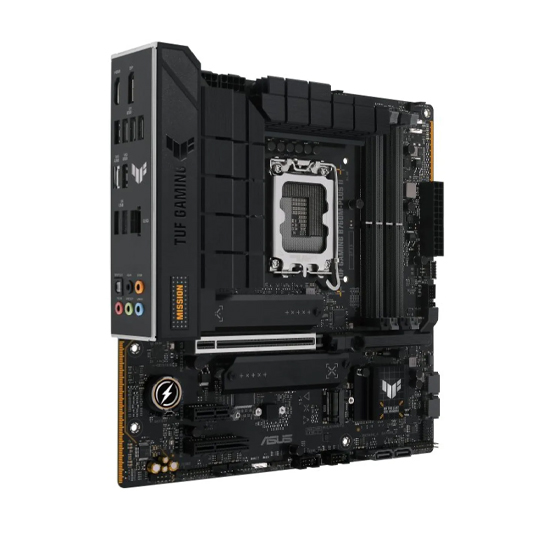

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Intel Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Intel Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Asus
৳22400 ৳24500 Save 9%

Key Features

  • Chipset: Intel B760 Chipset
  • Sockets Supported: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th& 13th& 12th Gen)
    M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode))
    Intel B760 Chipset)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode))
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  • Type: DDR5
  • Slots: 4 x DIMM
  • HDMI: 1 x HDMI port
CPU
Chipset Intel B760 Chipset
Sockets Supported Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th& 13th& 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode))
Intel B760 Chipset)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode))
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen )
Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors)
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0)
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Physical Specification
Form Factor micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Bios Information
BIOS Type 128 Mb Flash ROM, UEFI AMI BIOS
Basic Information
Type DDR5
Audio Sound & Microphone
Audio 5 x Audio jacks
Ports & Slots
PCI-E Intel Core Processors (14th& 13th& 12th Gen))
1 x PCIe 5.0 x16 slot)
Intel B760 Chipset)
1 x PCIe 4.0 x4 slot)
1 x PCIe 3.0 x1 slot
Slots 4 x DIMM
HDMI 1 x HDMI port
Display Port 1 x DisplayPort
USB Rear USB (Total 8 ports))
1 x USB 20Gbps port (1 x USB Type-C®))
1 x USB 10Gbps port (1 x Type-A))
2 x USB 5Gbps ports (2 x Type-A))
4 x USB 2.0 ports (4 x Type-A))
Front USB (Total 8 ports))
1 x USB 10Gbps connector (supports USB Type-C®)*)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports)
3 x USB 2.0 headers support 5 additional USB 2.0 ports
RJ45 (LAN Port) 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Internal I/O Ports Back Panel I/O Ports)
1 x USB 20Gbps port (1 x USB Type-C®))
1 x USB 10Gbps port (1 x Type-A))
2 x USB 5Gbps ports (2 x Type-A))
4 x USB 2.0 ports (4 x Type-A))
1 x DisplayPort)
1 x HDMI™ port)
1 x Realtek 2.5Gb Ethernet port)
5 x Audio jacks)
1 x Optical S/PDIF out port)
Internal I/O Connectors)
Fan and Cooling Related)
1 x 4-pin CPU Fan header)
1 x 4-pin CPU OPT Fan header)
1 x 4-pin AIO Pump header)
3 x 4-pin Chassis Fan headers)
Power Related)
1 x 24-pin Main Power connector)
2 x 8-pin +12V Power connectors)
Storage Related)
3 x M.2 slots (Key M))
4 x SATA 6Gb/s ports)
USB)
1 x USB 10Gbps connector (supports USB Type-C®))
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports)
3 x USB 2.0 headers support 5 additional USB 2.0 ports Miscellaneous)
3 x Addressable Gen 2 headers 1 x Clear CMOS header)
1 x Front Panel Audio header (F-AUDIO))
1 x20-3 pin System Panel header with chassis intrusion function)
1 x Thunderbolt™ (USB4®) header
Memory
Supported Memory 7800+ OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile II (AEMP II)
Maximum Memory 192GB
Graphics
Graphics 1 x DisplayPort)
1 x HDMI port)
Supports max. 4K@60Hz as specified in DisplayPort 1.4.)
Supports 4K@60Hz as specified in HDMI 2.1.)
VGA resolution support depends on processors' or graphic cards' resolution.
Warranty Information
Warranty 3 years warranty

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Intel Motherboard

The ASUS TUF Gaming B760M-PLUS II is a rugged, performance-focused micro-ATX motherboard crafted for gamers and system builders who value durability and reliability. Designed around the Intel B760 chipset, this board supports the latest Intel processors, offering versatile performance for both gaming and productivity. Its compact micro-ATX form factor makes it ideal for smaller builds that don’t compromise on essential features.
Durability is a hallmark of the TUF series: the board includes military-grade components such as durable capacitors and reinforced power delivery to ensure long-term stability, even under sustained workloads. The robust power design enables reliable power delivery to high-performance CPUs, allowing for dependable operation during intensive tasks or extended gaming sessions.
Memory-wise, the B760M-PLUS II supports multiple DDR4 DIMM slots, granting high-speed memory support and facilitating generous capacity for multitasking and future upgrades. Its thermal management is well-engineered: strategically placed heat sinks and thermal pads dissipate heat from critical areas like the voltage regulators, protecting system stability under load.
Expansion capabilities are solid. The board features multiple PCIe slots for graphics cards and other add-in cards, plus support for M.2 NVMe drives to deliver fast storage performance. An array of SATA ports ensures compatibility for additional hard drives and SSDs. Onboard connectivity includes a suite of USB ports — including both legacy and modern high-speed types — for peripherals and external devices.
For audio, it leverages a high-fidelity codec and dedicated PCB layers to reduce interference, delivering clear, immersive sound whether you are gaming, watching media, or communicating in competitive environments. Ethernet networking ensures reliable wired performance. Meanwhile, customization is supported through RGB headers, allowing synchronization with other components in your build.
Overall, the ASUS TUF Gaming B760M-PLUS II motherboard represents a dependable foundation for a high-performance PC. Its blend of rugged construction, efficient power delivery, thermal control, and versatile connectivity makes it a compelling choice for gamers, enthusiasts, and compact-system builders alike.
