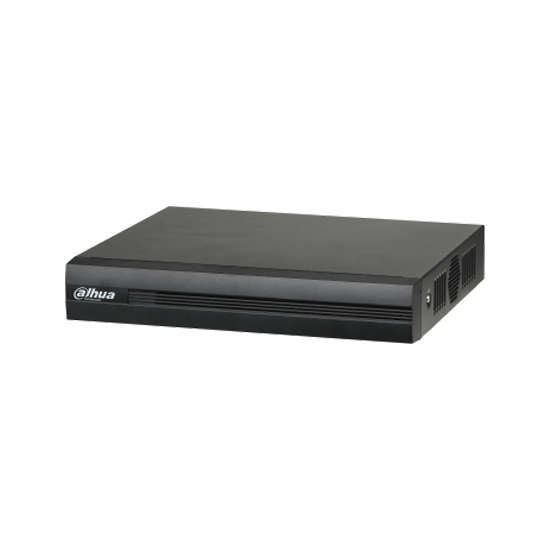

Dahua XVR DH-XVR1B16H-I 16 Channel Wizsense ( 1 Sata Up To 6TB) 1080P
Thumbnail 1 Thumbnail 2 Thumbnail 3

Dahua XVR DH-XVR1B16H-I 16 Channel Wizsense ( 1 Sata Up To 6TB) 1080P

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Dahua
৳5800 ৳8500 Save 32%

Key Features

  • Main Processor: Industrial-Grade Processor
  • Operating System: Embedded Linux
  • SMD Plus by Recorder: 16 Channels: Secondary Filtering For Human And Motor Vehicle, Reducing False Alarms Caused By Leaves, Rain And Lighting Condition Change
  • Analog Camera Input: 16 BNC Ports, Supports HDCVI/AHD/TVI/CVBS Auto-Detect
Audio and Video
Dual Stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-Screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-Party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Analog Camera Input 16 BNC Ports, Supports HDCVI/AHD/TVI/CVBS Auto-Detect
Camera Input 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
IP Camera Input Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels)
Encoding Capacity Main stream:
5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps)
5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: D1/CIF@(1 fps–15 fps)
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Networking & Connectivity
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;
Mobile Phone Access iOS; Android
Interoperability ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode General; alarm; motion detection
Recording Playback 1/4/9/16
Backup Method Instant playback; general playback; event playback; tag playback; smart playback
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Audio Sound & Microphone
Audio Input 1-channel RCA
16-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Ports & Slots
Two-Way Talk Yes (share the same audio input with the first channel)
Disk Interface 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
USB 2 (2 rear USB 2.0 ports)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Type
Power Supply 12 VDC, 2 A
Power Consumption <12 W(without HDD)
Physical Specification
Net Weight 0.93 kg (2.05 lb)
Gross Weight 1.43 kg (3.16 lb)
Product Dimensions 260.0 mm × 231.4 mm × 47.6 mm (10.24" × 9.11" × 1.87") (W × D × H)
Packaging Dimensions 333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)
General Information
Operating temperature –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Installation Desktop
Environmental
Operating Humidity 10%–90% (RH), non-condensing
Additional Info / Features
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
Software / Compatibility
Main Processor Industrial-Grade Processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
SMD Plus
SMD Plus by Recorder 16 Channels: Secondary Filtering For Human And Motor Vehicle, Reducing False Alarms Caused By Leaves, Rain And Lighting Condition Change
SMD Plus by Camera 24 Channels

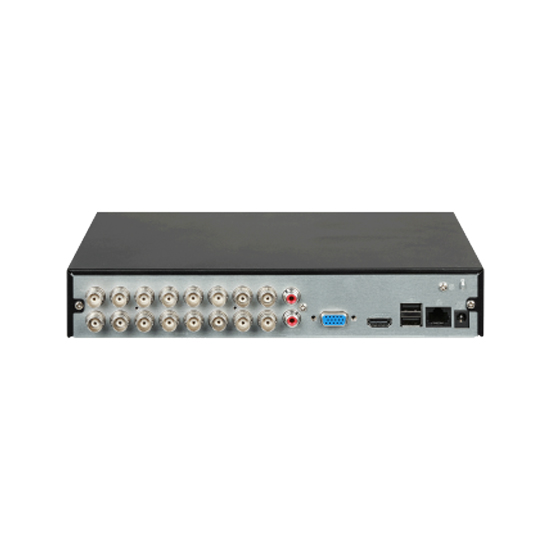

The XVR DAHUA DH-XVR1B16H-I 16 Channel WizSense XVR is a powerful and versatile digital video recorder designed for advanced surveillance needs. This compact 1U device supports up to 16 analog channels and 24 IP channels, providing extensive coverage for large-scale security systems. It features H.265+ and H.265 dual-stream video compression, ensuring efficient storage and bandwidth usage without compromising video quality. One of the standout features of the DH-XVR1B16H-I is its Smart Motion Detection (SMD) Plus technology, which filters out false alarms caused by non-threatening movements like leaves or rain, concentrating on human and vehicle detection to enhance the accuracy of alerts. The device supports multiple video input formats, including HDCVI, AHD, TVI, CVBS, and IP, making it highly adaptable to various camera types. The XVR also boasts a robust storage capacity, supporting one SATA hard drive up to 6TB, ensuring ample space for high-definition video recordings. The front I/O panel includes HDMI and VGA outputs for flexible display options, and the system is compatible with mobile access via iOS and Android devices, allowing for remote monitoring. Overall, the XVR DAHUA DH-XVR1B16H-I combines advanced features with reliable performance, making it an excellent choice for comprehensive security solutions.
