DeepCool SC790 2-in-1 PWM & RGB hub
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5

DeepCool SC790 2-in-1 PWM & RGB hub

☆ ☆ ☆ ☆ ☆
(0 Reviews) | Out of Stock | Brand: DeepCool
৳1350 ৳1700 Save 21%

Key Features

  • Brand: DeepCool
  • Type: RGB Controller
  • Power Connectors: SATA Power
  • Net Weight: 69g
  • Body Color: Black
  • Mounting Method: Magnetic
General Information
Brand DeepCool
Model SC790
Type RGB Controller
Part No R-SC790-BKNSNN-G
Technical Info
PWM Control Yes

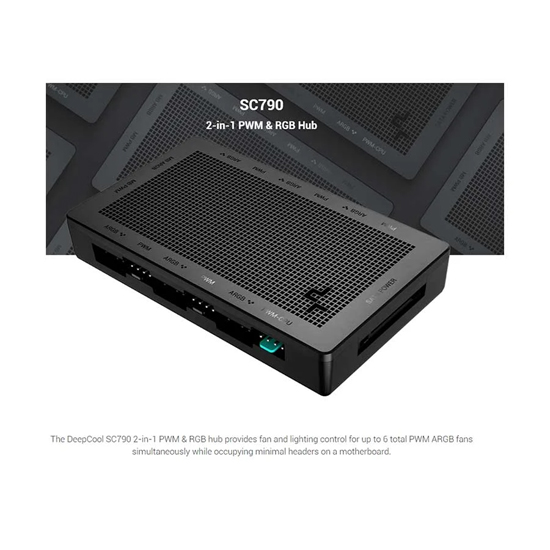

Compatibility The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.
Ports & Slots
Power Connectors SATA Power
Port Type ARGB-3Pin & PWM-4 Pin
Fan Ports 6 Ports x 4Pin PWM
RGB Ports 6 Ports x 3Pin Addressable RGB
Power Type
RGB Rated Voltage 5V DC
Power Safety Current 4.5A Max
RGB Safety Current 2.0A(1Port) / Total 4.5A(6Ports)
Fan Rated Voltage 12V DC
Fan Rated Current 2.0A(1Port) / Total 4.5A(6Ports)
Physical Specification
Net Weight 69g
Body Color Black
Mounting Method Magnetic
Dimension 102×60×17 mm
Length of ARGB Connector cable 24 AWG 538mm (Asus Asrock MSI) +50mm (Gigabyte)
Length of Fan Connector cable 24AWG 500 mm
Additional Info / Features
Others Port Type: ARGB-3 Pin & PWM-4 Pin; Fan Ports: 6 Ports x 4Pin PWM; Fan Connector Cable Length: 24AWG 500 mm; Fan Rated Voltage: 12V DC; Fan Rated Current: 2.0A (1 Port) / Total 4.5A (6 Ports); RGB Ports: 6 Ports x 3Pin Addressable RGB ARGB connector cable length: 24 AWG 538mm (Asus Asrock MSI) + 50mm (Gigabyte); RGB Rated Voltage: 5V DC; RGB Safety Current: 2.0A (1 Port) / Total 4.5A (6 Ports); Power Connector: SATA Power; Power Safety Current: 4.5A Max; Magnetic mounting is the method. One PWM fan cable, one ARGB cable, and a Deepcool SC790 are included in the box.

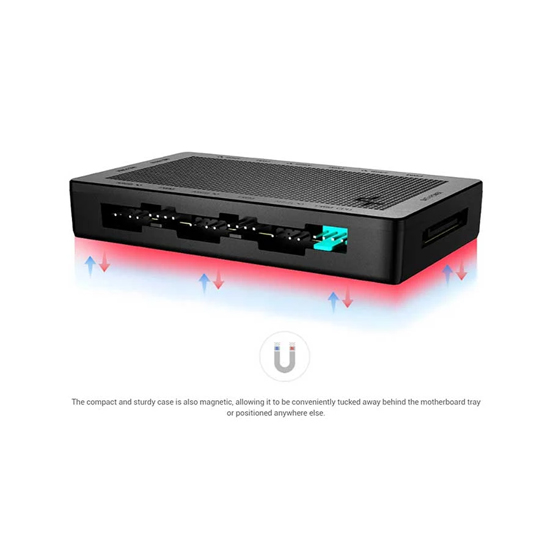

Feature The SC790 extends its signal to connect up to six PWM ARGB fans for complete synchronization by connecting to a motherboard's 3-pin 5V ARGB header and 4-pin PWM header. All connected devices are guaranteed steady, uninterrupted power thanks to the inbuilt SATA interface. Because the robust and small case is magnetic, it may be placed anywhere or neatly tucked behind the motherboard tray. supports ASRock Polychrome, MSI Mystic Light, ASUS Aura, and GIGABYTE Fusion.
Warranty Information
Warranty Details 1 Year

DeepCool SC790 2-in-1 PWM & RGB Hub Seamless Cooling and pictorial Lighting Control

Upgrade your PC’s cooling and lighting performance with the DeepCool SC790 2-in-1 PWM & RGB mecca. Designed to streamline your system’s operation, this mecca consolidates multiple addict and RGB connections into a single, accessible control center.

The DeepCool SC790 features seven PWM addict anchorages and six RGB anchorages, making it a protean result for any high-performance PC figure. With PWM control, your suckers can stoutly acclimate their pets grounded on temperature demands, icing optimal cooling effectiveness and quiet operation. The integrated RGB mecca supports both 5V 3-leg nontransferable RGB(ARGB) bias, allowing you to customize your lighting goods with stunning perfection.

Installation is quick and royal, thanks to the included Velcro and glamorous underpinning options. This inflexibility ensures the SC790 can be fluently deposited anywhere inside your case for neat string operation and an systematized setup. A devoted SATA power connection guarantees stable and dependable power delivery, indeed when managing multiple high-power bias.

Take control of your system’s aesthetics with motherboard synchronization support, compatible with major brands like ASUS Aura Sync, MSI Mystic Light Sync, GIGABYTE RGB Fusion, and ASRock Polychrome Sync. With flawless integration, you can attend your entire system’s lighting goods to produce an immersive and cohesive look.

The DeepCool SC790 also features erected-in safety measures likeover-current protection, icing safe and dependable operation for your factors. Compact yet important, this mecca is the perfect addition to any sucker’s figure, enabling you to maintain optimal tailwind while illuminating your carriage with vibrant RGB lighting.

Whether you’re a hardcore gamer, a PC sucker, or simply looking to enhance your carriage’s performance and style, the DeepCool SC790 2-in-1 PWM & RGB Hub is the ultimate choice. unleash full control of your cooling and lighting in one satiny, important device and witness the coming position of customization and performance for your PC moment.
