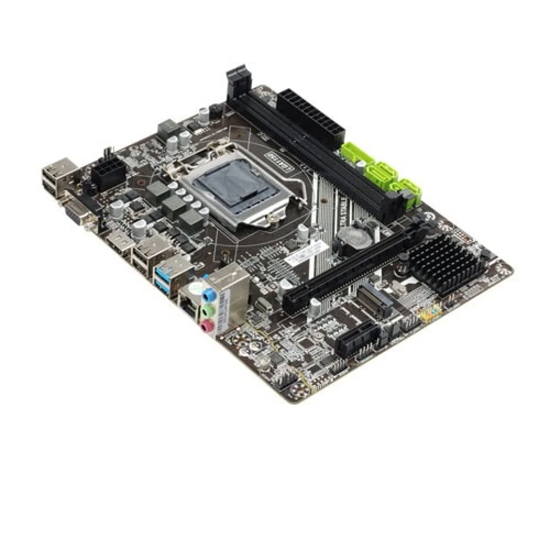

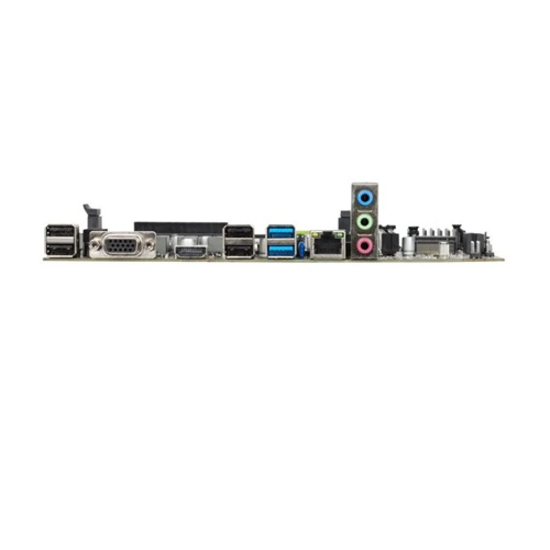

The Esonic H81DA1 DDR3 Micro-ATX M.2 Motherboard is designed for budget-conscious users. It supports Intel 4th Generation Core i7, i5, i3, Pentium, and Celeron with the Intel H81 chipset and LGA1150 socket. The motherboard features dual-channel DDR3 memory support, with speeds up to 1333/1600 MHz and up to 16GB of RAM across two memory slots. For storage it offers one M.2 slot (Socket 3, M key, type 2242) supporting PCIe 3.0 x4 mode, and four SATA 6Gb/s, providing ample options for both traditional hard drives and SSDs. Network is provided by Realtek RTL8111H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is with Realtek ALC897 Audio Codec, delivering high-quality sound for your entertainment needs. The back I/O ports include VGA port, one HDMI port, one LAN (RJ45) port, two USB 3.0 ports, four USB 2.0 ports, and three audio j (Mic in, Line out, and Line in). Expansion capabilities include one PCIe 30 x16 slot and one PCIe 3.0 x1 slot, allowing for additional hardware components. With its micro-ATX form factor (21.1 cm x 16.8 cm), the motherboard is suitable for compact PC builds, and it includes six mounting holes for secure installation. The motherboard is covered by a 1-year, providing reliability and peace of mind.
