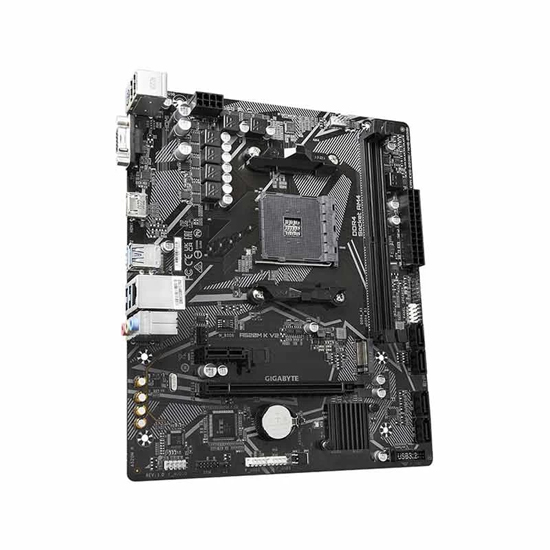

Gigabyte A520M K V2 DDR4 AM4 Micro ATX AMD Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3

Gigabyte A520M K V2 DDR4 AM4 Micro ATX AMD Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Gigabyte
৳8450 ৳9300 Save 9%

Key Features

  • Body Color: Black
  • Memory Type: DDR4
  • Memory Max.: 64GB
  • Approx Power Consumption: 60W
  • Manufacturing Warranty: 03 Year Warranty
Physical Specification
Body Color Black
Form Factor Micro-ATX
CPU
Chipset Brand AMD
Chipset AMD A520
Sockets Supported AM4
Supported CPU AMD Ryzen 5000 G-Series / 5000 Series Processors/ 4000 G-Series / 3000 Series Processors.
Memory
Memory Type DDR4
Memory MHz 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz.
Memory Channel 2
Memory Slot 2
Memory Slot (Additional Info) 2 x DIMM
Memory Max. 64GB
Storage
Storage Interface 6.0Gb/s
M.2/SSD Expansion Slot 1
M.2/SSD Expansion Slot Details 1 x M.2 M key type 2280 Supports SATA and PCIe 3.0 x4/x2 SSD
Graphics
Graphics Integrated
Graphics Chipset Integrated With Processor
PCI Express Slot 1 x PCI Express x16 slot supporting PCIe 3.0 and running at x16, 1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1
Audio Sound & Microphone
Audio Chipset Realtek Audio CODEC High Definition Audio
Audio Channel 2/4/5.1/7.1
Networking & Connectivity
LAN Chipset Realtek GbE LAN chip
LAN Speed (Mbps) 10/100/1000Mbps
Ports & Slots
USB Port 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
VGA Port 1
HDMI Port 1
SATA Port 4 x SATA
TPM Port 1
Technical Info
Cable Management Front
Raid Support 0, 1, 10
Power Type
Approx Power Consumption 60W
Bios Information
BIOS Type 1 x 128 Mbit flash
BIOS Model AMI UEFI BIOS
BIOS Version PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software / Compatibility
Supported Operating System Windows 10 / 11
Compatible Products Compatible with AM4 Sockets AMD Ryzen 5000 G-Series / 5000 Series Processors/ 4000 G-Series / 3000 Series Processors.
Warranty Information
Manufacturing Warranty 03 Year Warranty

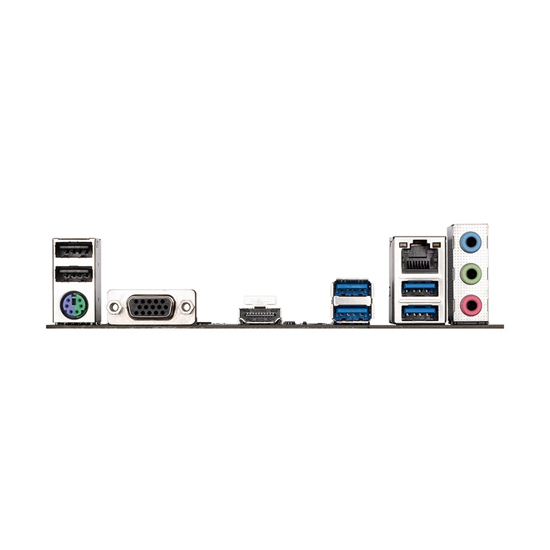

The Gigabyte A520M K V2 DDR4 AM4 Micro-ATX Motherboard is designed for both office and home use. It is compatible with AMD Ryzen 5000 Series, Ryzen  G-Series, Ryzen 4000 G, and Ryzen 3000 Series processors, utilizing the AMD A520 chipset and AM4 socket. This motherboard dual DDR4 memory support, speeds reaching up to 5100 (O.C.) and accommodating up to 64GB of RAM across two memory slots. For storage options, it includes one M.2 (Socket 3, M key, type 2280) supporting PCIe 3.04 mode, with four SATA6Gb/s ports, providing ample choices both traditional and modern storage solutions. Network connectivity is facilitated by Real RTL8111H Gigabit LAN, ensuring smooth and stable internet performance. The audio experience is enhanced through the Realtek ALC897 Audio Codec, delivering high-quality sound for entertainment needs. The back I/O ports one VGA port, one HDMI port, two 3.2 Gen1 ports, four USB .0 ports, and three audio jacks (Mic in, Line Out, and Line In). Expansion capabilities include one PCIe 4.0 x slot and one PCI 3. x1 slot, allowing for additional hardware components. With its-ATX form factor (23. cm x 21.5), this motherboard is suitable for compact PC builds, and it features six mounting holes for secure installation. Furthermore, the motherboard is backed by a 3-year warranty, providing reliability and peace of mind.
