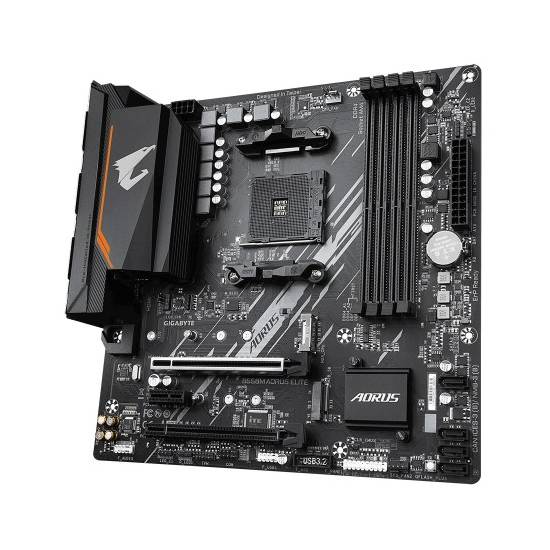

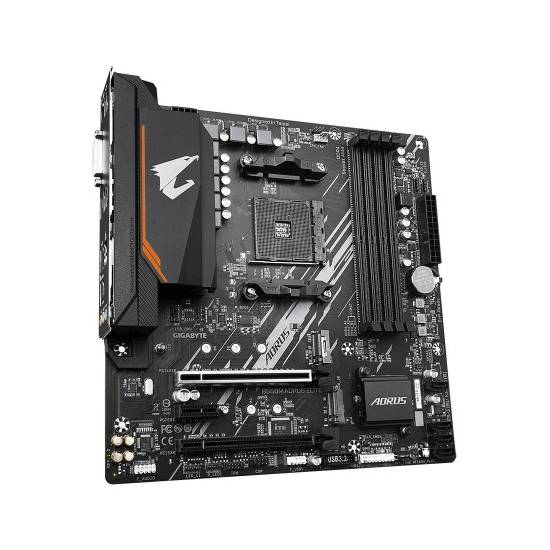

Gigabyte B550M Aorus Elite Micro ATX AMD Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

Gigabyte B550M Aorus Elite Micro ATX AMD Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Gigabyte
৳15900 ৳16500 Save 4%

Key Features

  • Chipset: AMD B550
  • Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Memory Type: Dual-Channel Architecture
  • TPM Port: 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • Slots: 4 x DDR4 memory slots
  • Maximum Memory: support up to 128GB
CPU
Chipset AMD B550
Sockets Supported 1‎ x PCI Express x16 slot (PCIEX16), integrated into the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: Supporting PCIe 3.0 x1 mode
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Memory
Memory Type Dual-Channel Architecture
Supported Memory 3rd Gen AMD Ryzen Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
New Generation AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules
Maximum Memory support up to 128GB
Max Shared Memory 16 GB
Graphics
Graphics Integrated into the 3rd Generation
AMD Ryzen with Radeon Graphics processors:
1 x DVI-D port, supporting a maximum resolution of
1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Ports & Slots
TPM Port 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
PCI-E 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
- New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
Slots 4 x DDR4 memory slots
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
DVI Port 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

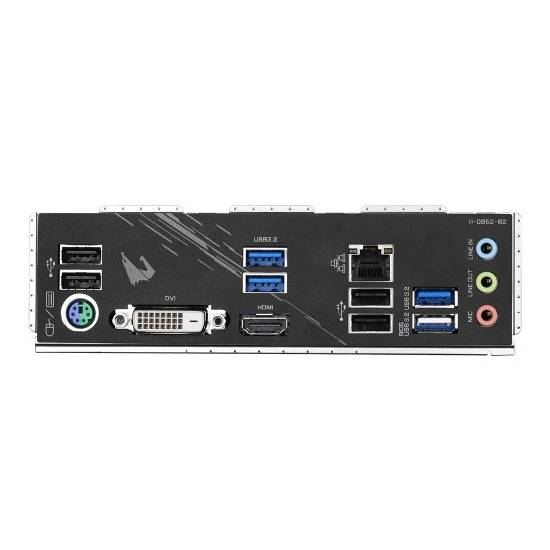

USB 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:l
2 x USB 3.2 Gen 1 ports availablel
through the internal USB headerl
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available l
through the internal USB header)
RJ45 (LAN Port) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Physical Specification
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Bios Information
BIOS Type 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM
BIOS 2.7, ACPI 5.0
Storage
Storage 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Audio Sound & Microphone
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Warranty Information
Warranty 03 Years Warranty

Gigabyte B550M Aorus Elite Micro ATX AMD Motherboard

The GIGABYTE B550M AORUS Elite is a compact yet powerful micro-ATX motherboard built for AMD’s AM4 platform. Powered by the B550 chipset, it supports a wide range of Ryzen processors—spanning 3rd, 4th (G-series), and 5th gen—making it a flexible base for both gaming and productivity builds. Its smaller form factor makes it ideal for smaller PC cases, while still delivering strong performance and expandability.
Its power delivery is handled by a 5 + 3-phase digital VRM arrangement with efficient, low-resistance MOSFETs, ensuring stable voltage and reliable support for high-performance CPUs under load. To manage thermals, the board includes enlarged heatsinks that dissipate heat from the VRMs, helping maintain stability during intensive tasks.
Memory support is robust with four DDR4 DIMM slots, enabling dual-channel configurations of up to 128 GB. This flexibility ensures smooth multitasking, gaming, and content creation. For graphics and expansion, it offers a PCIe 4.0 x16 slot for modern GPUs, plus additional slots for other cards, allowing for a well-rounded system build.
Storage capabilities are excellent: the board houses dual M.2 connectors, one optimized for PCIe 4.0 NVMe drives (offering blistering speeds) and another that supports PCIe 3.0 or SATA SSDs, so you can mix ultra-fast storage with high-capacity drives. There are also multiple SATA ports for additional storage devices.
On the connectivity side, this motherboard includes Realtek Gigabit Ethernet to ensure stable, wired networking, ideal for gaming or streaming. The audio is powered by quality capacitors and a noise-guard design, delivering rich and clear 7.1-channel sound.
Cooling is well-supported with multiple fan headers and built-in Smart Fan control featuring several temperature sensors, allowing for intelligent, responsive airflow management. The motherboard also features RGB Fusion 2.0, enabling customizable lighting that integrates with compatible LED strips and other RGB hardware.
Another practical feature is Q-Flash Plus, which lets you update the BIOS without installing the CPU or memory—a convenience for future CPU upgrades. The B550M AORUS Elite balances durable design, modern features, and high-end capabilities in a compact, micro-ATX format, making it a solid choice for gamers and builders who want power in a smaller package.
