GIGABYTE B760M D3HP DDR5 Micro ATX Intel Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

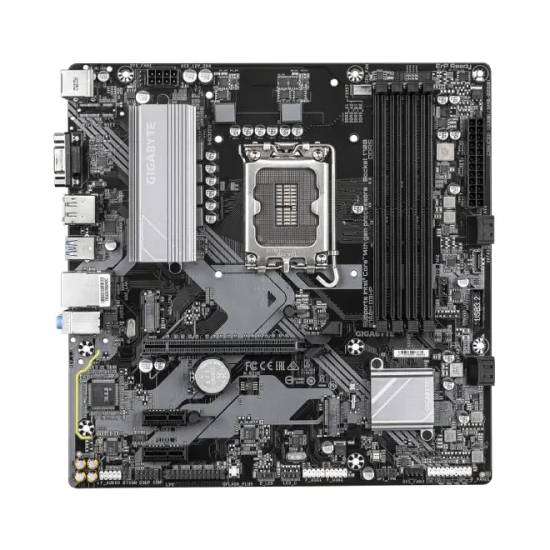

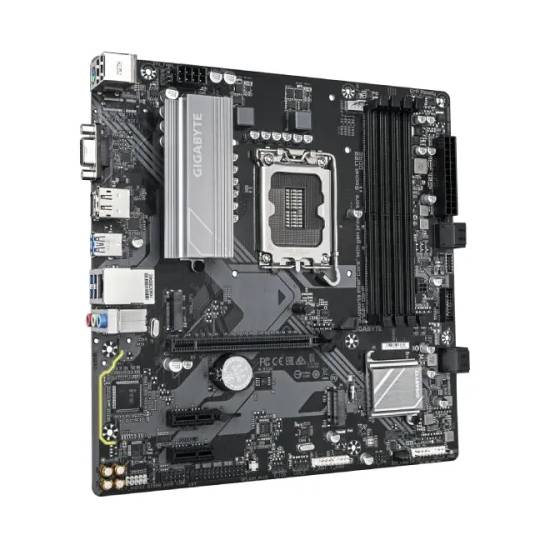

GIGABYTE B760M D3HP DDR5 Micro ATX Intel Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Gigabyte
৳17600 ৳18800 Save 6%

Key Features

  • Chipset: Intel B760 Express Chipset
  • Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
  • Memory Type: DDR5
  • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
  • Audio: Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
  • Slots: 4
CPU
Chipset Intel B760 Express Chipset
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Memory
Memory Type DDR5
Supported Memory Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-
Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support for native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3
Ports & Slots
TPM Port ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
PCI-E CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Slots 4
HDMI 1 x HDMI port
Display Port 1 x DisplayPort
D-Sub 1 x D-Sub port
USB Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Ethernet (LAN Port) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
Physical Specification
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Bios Information
BIOS Type 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio Sound & Microphone
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
RAID
RAID Type RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Warranty Information
Warranty 3 years Warranty

GIGABYTE B760M D3HP DDR5 Micro ATX Intel Motherboard

The GIGABYTE B760M D3HP DDR5 is a compact yet capable micro-ATX motherboard engineered for Intel’s latest LGA 1700 processors. Based on the modern B760 chipset, it delivers a balanced blend of performance and expandability in a small form factor, making it ideal for both gaming rigs and productivity-focused systems.
Memory support is robust, with four DDR5 DIMM slots that allow for dual-channel configurations and high-speed modules. This provides ample headroom for future upgrades and enables smooth multitasking or gaming performance. The power delivery subsystem is thoughtfully designed, offering stable voltage to the CPU via quality VRMs, which helps ensure long-term reliability even under sustained load.
For graphics and expansion, the board features a full-length PCIe 4.0 x16 slot for modern GPUs, along with additional PCIe slots for auxiliary cards, such as network adapters or storage controllers. When it comes to storage, you’ll find an M.2 slot that supports high-speed NVMe SSDs for fast boot and load times, as well as multiple SATA ports to accommodate traditional hard drives or SATA SSDs.
On the connectivity front, the motherboard provides a suite of USB ports—both high-speed and legacy—supporting a broad range of peripherals. Wired networking is handled by a reliable Gigabit Ethernet interface, ideal for stable online gaming sessions and workplace networking. Audio is powered by a solid onboard codec that delivers clear, immersive sound for gaming, media, and voice applications.
Cooling options are well catered for: multiple fan headers ensure you can maintain optimal airflow within a compact case. The board also integrates diagnostic LEDs to help with quick troubleshooting during install, aiding in identifying CPU, DRAM, or GPU issues.
Built with durability in mind, the GIGABYTE B760M D3HP DDR5 provides a trustworthy base for a modern, high-performance system while preserving a compact and efficient design.
