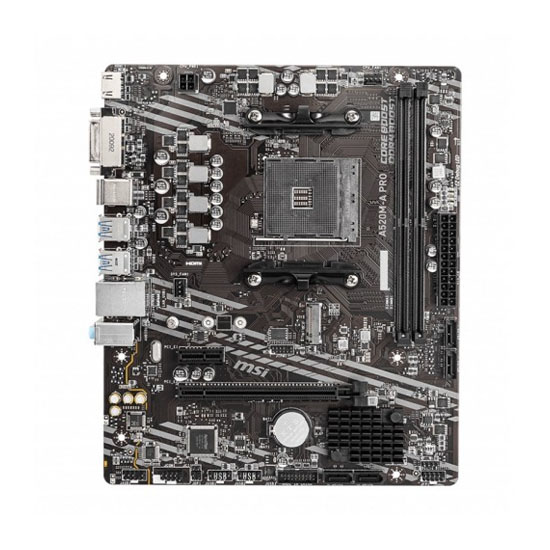

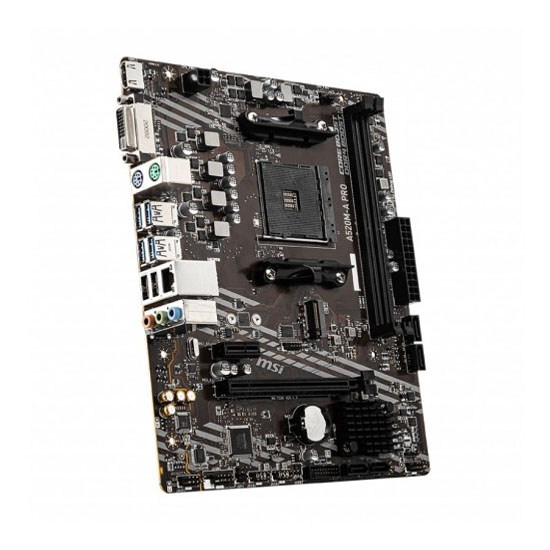

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: Msi
৳8000 ৳8600 Save 7%

Key Features

  • Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Chipset: AMD B520
  • Form Factor: Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
  • M.2/SSD Expansion Slot: 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
  • Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • Max Shared Memory: 16GB
CPU
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B520
Physical Specification
Form Factor Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Ports & Slots
PCI Slot 1x PCIe 3.0 x1 slot 1x PCIe x16 slot
Slots 2x DDR4 memory slots
HDMI 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz
DVI Port 1x DVI-D port, maximum resolution of 1920x1200@60Hz
USB AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Ethernet (LAN Port) 1x Realtek RTL8111H Gigabit LAN controller
Internal I/O Ports 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
TPM Port 1xTPM module connector
Storage
M.2/SSD Expansion Slot 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Storage Support AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Basic Information
Type Dual-channel memory architecture
Memory
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory 64GB
Max Shared Memory 16GB
Graphics
Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Audio Sound & Microphone
Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio
Warranty Information
Warranty 03 Years Warranty

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

The MSI A520M-A Pro is a reliable and budget-friendly AM4 micro-ATX motherboard designed for AMD Ryzen processors, including support for the latest Ryzen 5000 series. Built on the AMD A520 chipset, this motherboard offers a solid foundation for building a capable and cost-effective desktop system without sacrificing essential features or stability.
Featuring an AM4 socket, the A520M-A Pro supports PCIe 3.0, ensuring compatibility with a wide range of graphics cards and expansion devices. Its micro-ATX form factor makes it ideal for compact builds, fitting easily into most mid-sized cases while still delivering strong performance for everyday computing, gaming, and productivity tasks.
The board supports dual-channel DDR4 memory with speeds up to 4600+(OC) MHz, allowing users to optimize system responsiveness and multitasking capabilities. It includes four SATA III ports for ample storage expansion, as well as an M.2 slot that supports high-speed NVMe SSDs, enabling faster boot times and improved system performance.

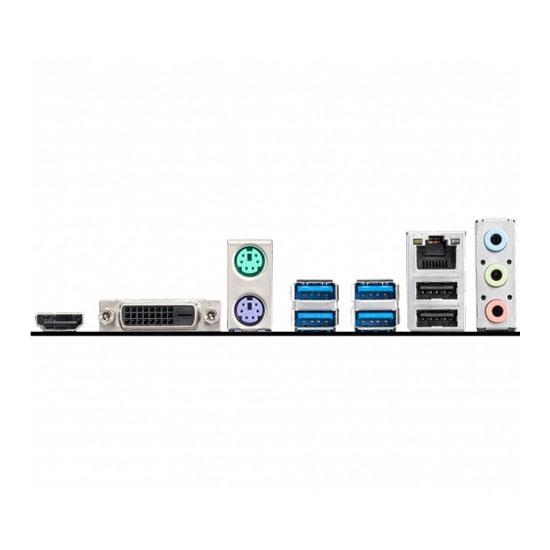

Connectivity is well-covered with Gigabit LAN, multiple USB ports (including USB 3.2 Gen 1 and USB 2.0), and standard audio jacks. The rear I/O panel provides HDMI and DVI-D outputs, supporting multi-display setups and high-resolution video playback—perfect for both work and entertainment.
MSI’s renowned BIOS Flashback feature is included, allowing users to update the UEFI firmware without needing a CPU, RAM, or GPU installed—making upgrades easier and more convenient. The A520M-A Pro also benefits from MSI’s military-grade components, ensuring durability, stability, and long-term reliability even under heavy workloads.
With its balanced mix of performance, essential features, and affordability, the MSI A520M-A Pro is an excellent choice for budget-conscious builders seeking a dependable platform for an AMD-based system.
