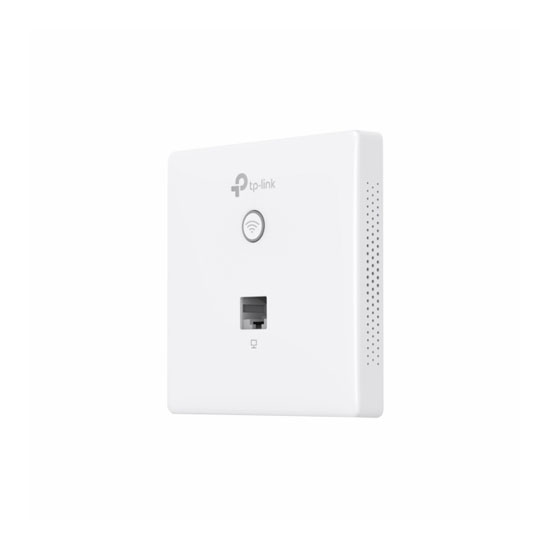

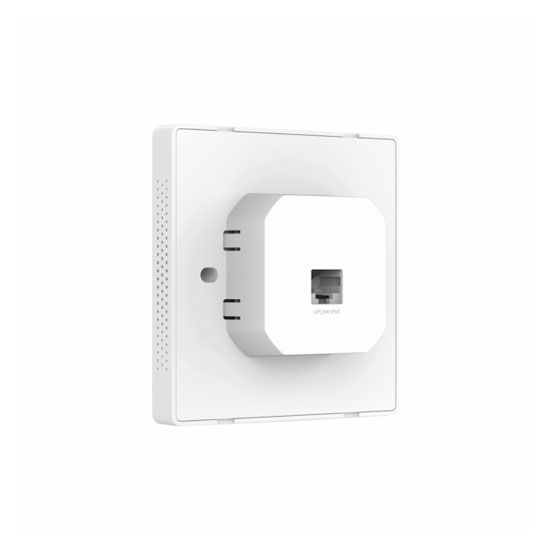

TP-Link EAP230-Wall AC1200 Dual Band Wireless MU-MIMO Gigabit Wall-Plate Access Point
Thumbnail 1 Thumbnail 2 Thumbnail 3

TP-Link EAP230-Wall AC1200 Dual Band Wireless MU-MIMO Gigabit Wall-Plate Access Point

☆ ☆ ☆ ☆ ☆
(0 Reviews) | Upcoming | Brand: TP-Link

Key Features

  • Data Rate: 5 GHz: Up to 867 Mbps
    2.4 GHz: Up to 300 Mbps
  • Wireless Frequency: 2.4 GHz and 5 GHz
  • Antenna: 2 Dual-Band Antennas
    • 2.4 GHz: 2× 4 dBi
    • 5 GHz: 2× 3.6 dBi
  • Ports: 1× 10/100/1000 Mbps Ethernet Port
Networking & Connectivity
Data Rate 5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Router Type Access Point
Wireless Standards IEEE 802.11n/g/b/ac
Wireless Frequency 2.4 GHz and 5 GHz
Wireless Security 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
WIFI Band Dual Band
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 3.6 dBi
Wireless Functions 16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client MU-MIMO Band Steering Beamforming
Physical Specification
Dimension 86.8 × 86.8 × 30.2 mm
Color White
Ports & Slots
Ports 1× 10/100/1000 Mbps Ethernet Port
Warranty Information
Warranty 2 Years Warranty

TP-Link EAP230-Wall AC1200 Dual Band Wireless MU-MIMO Gigabit Wall-Plate Access Point

The TP-Link EAP230-Wall AC1200 is a compact yet powerful wall-plate access point designed to deliver fast, reliable wireless connectivity in hotels, dormitories, offices, and apartment buildings. With support for the latest 802.11ac Wave 2 Wi-Fi standard, this device offers dual-band speeds of up to 1200 Mbps (867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz), ensuring smooth streaming, fast downloads, and lag-free online experiences.
Equipped with MU-MIMO technology, the EAP230-Wall simultaneously communicates with multiple devices, increasing network capacity and efficiency. Its Gigabit Ethernet port provides high-speed wired connections, while two additional pass-through ports allow seamless integration with existing wired infrastructure for phones or IPTV.
Designed for easy deployment and a clean, professional look, the access point fits into standard EU or US wall junction boxes, making it ideal for room-based installations. 802.3af/at PoE (Power over Ethernet) support allows for flexible placement and eliminates the need for separate power cables.
Managed via TP-Link’s Omada SDN (Software Defined Networking) platform, the EAP230-Wall enables centralized cloud management, remote monitoring, and seamless network scalability. Features like Captive Portal, Band Steering, Load Balancing, and VLAN support offer enterprise-grade performance and security.
Whether you're outfitting a hotel or upgrading your office network, the TP-Link EAP230-Wall delivers dependable, high-speed wireless coverage in a sleek, space-saving design. It combines enterprise-level features with effortless management to create a truly scalable and secure network solution.
