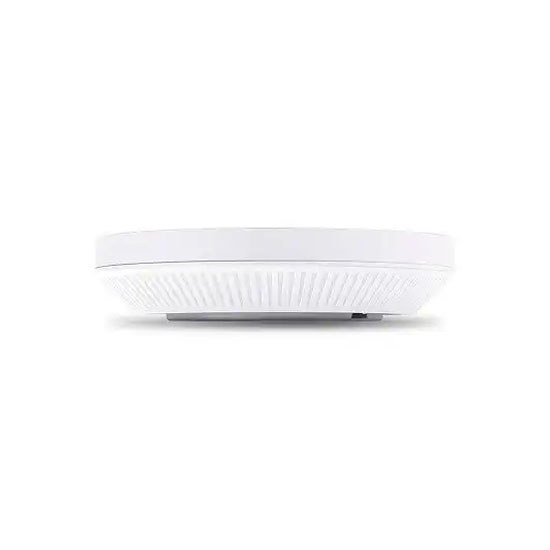

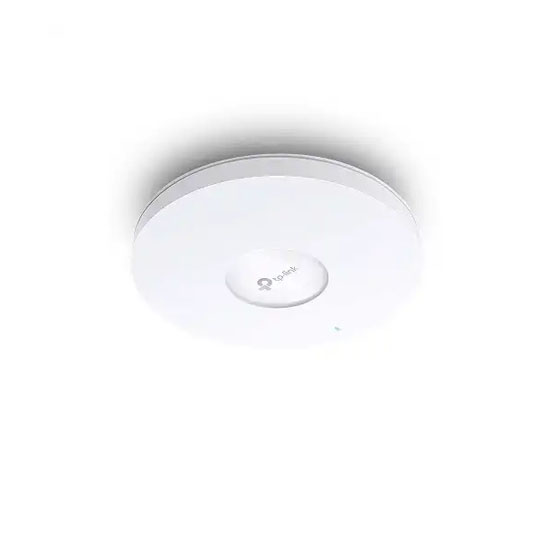

TP-Link EAP620 HD V3 AX1800 Dual Band Ceiling Mount WiFi 6 Access Point
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

TP-Link EAP620 HD V3 AX1800 Dual Band Ceiling Mount WiFi 6 Access Point

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳12800 ৳14900 Save 14%

Key Features

  • Data Rate: 5 GHz: Up to 1201 Mbps
    2.4 GHz: Up to 574 Mbps
  • Wireless Frequency: 2.4 GHz and 5 GHz
  • Antenna: Internal Omni Antenna
    • 2.4 GHz: 2× 4 dBi
    • 5 GHz: 2× 5 dBi
  • Warranty: 2 Years Warranty
Networking & Connectivity
Data Rate 5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Router Type Access Point
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Wireless Frequency 2.4 GHz and 5 GHz
Wireless Security WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
WIFI Band Dual Band
Antenna Internal Omni Antenna
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming△
• Omada Mesh△
• Band Steering
• Load Balance

• Airtime Fairness • Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Physical Specification
Dimension 160 × 160 × 33.6 mm
Color White
Ports & Slots

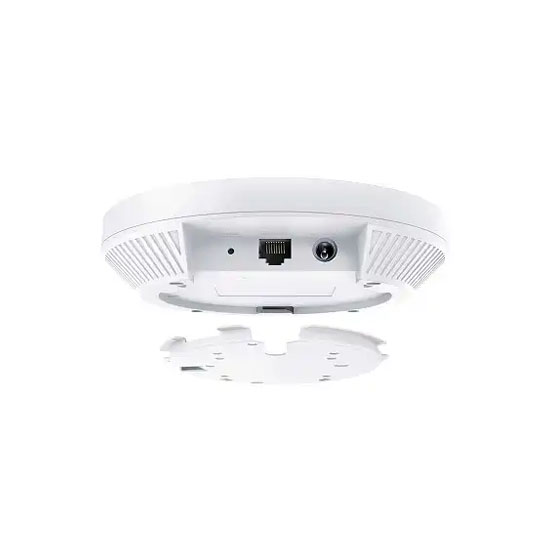

Ports 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
Warranty Information
Warranty 2 Years Warranty
Basic Information
Mounting Type Ceiling Mount

TP-Link EAP620 HD V3 AX1800 Dual Band Ceiling Mount WiFi 6 Access Point

The TP-Link EAP620 HD V3 AX1800 is a high-performance, ceiling-mounted WiFi 6 access point designed to deliver fast, efficient, and reliable wireless coverage in high-density environments such as offices, schools, hotels, and retail spaces. Supporting the advanced 802.11ax (WiFi 6) standard, it delivers combined dual-band wireless speeds of up to 1775 Mbps, with 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
This access point incorporates key WiFi 6 technologies such as OFDMA, MU-MIMO, and BSS Coloring, which significantly increase network efficiency and reduce latency in environments with many connected devices. The result is smoother streaming, faster downloads, and a better overall user experience.
The EAP620 HD is built for easy deployment and flexibility. It features 802.3at PoE+ support, allowing power and data to be delivered through a single Ethernet cable—perfect for ceiling or wall mounting in places where power outlets may be limited. Its discreet, low-profile design blends seamlessly into modern interiors.
Integrated into the TP-Link Omada SDN (Software Defined Networking) platform, this access point enables centralized cloud management, zero-touch provisioning, and real-time monitoring via the Omada Controller or Omada Cloud interface. This management across various locations and devices.
Advanced security features include WPA3 encryption, captive portal, access control, and VLAN segmentation, ensuring secure and customized wireless access for different user groups. Additional features such as band steering, load balancing, and seamless roaming provide a consistent and uninterrupted wireless experience.
Whether you're upgrading your current network or deploying a new one, the TP-Link EAP620 HD offers enterprise-grade performance, reliability, and manageability in a compact, cost-effective package.
