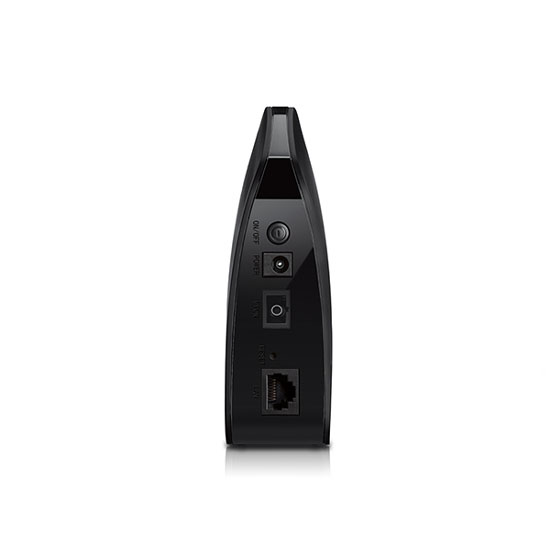

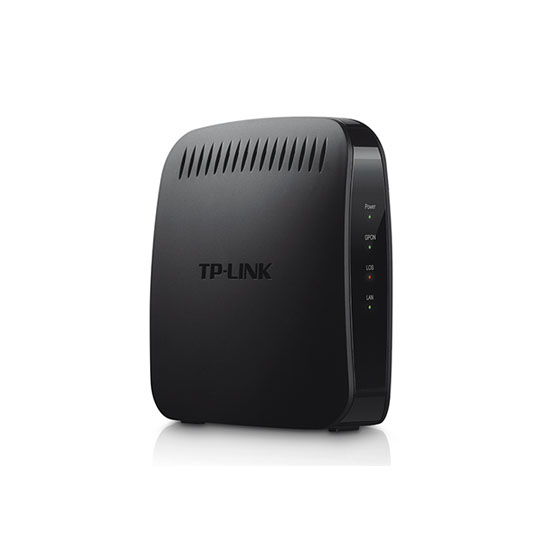

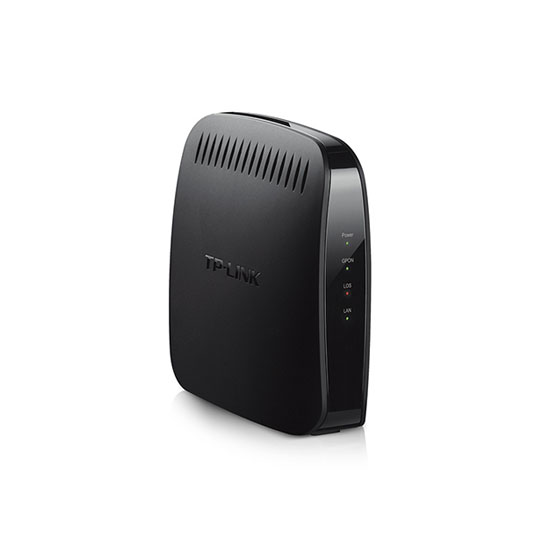

TP-Link TX-6610 V1 1 Port Gigabit GPON Terminal

TP-Link TX-6610 V1 1 Port Gigabit GPON Terminal

Model: TX-6610 V1

Reviews: No reviews yet

Price: 1,240.00৳

Regular Price: 1,490.00৳

Save: 250.00৳

Key Features:

  • Product Type: GPON/XPON Terminal
  • Interface: 1 10/100/1000Mbps RJ45 Ports
    1 SC/APC Port
  • Data Rate: Upstream:1.244Gbps
    Downstream:2.488Gbps
  • Transmission Distance: 0~ 20Km Max
  • Warranty: 1 Year Warranty
Buy Now

Specifications

Basic Information

Product Type GPON/XPON Terminal

Physical Specification

Color Black
Button 1 Power On/Off Button
1 RESET Button
Dimension 102.7 x 37.9 x 106.9mm

Technical Info

Interface 1 10/100/1000Mbps RJ45 Ports
1 SC/APC Port
Wavelength Upstream:1310nm
Downstream:1490nm
Transmission Distance 0~ 20Km Max
Receiver APD-TIA
Transmitter DFB Laser
Optical Module Class C+

Power Type

Power Supply 9VDC/0.6A

Networking & Connectivity

Network Standards IEEE 802.3, 802.3u, 802.1Q, 802.1p
Data Rate Upstream:1.244Gbps
Downstream:2.488Gbps
GPON Standards ITU-T G.984.1, G.984.2, G.984.3, G.984.4

Warranty Information

Warranty 1 Year Warranty

Description

TP-Link TX-6610 V1 1 Port Gigabit GPON Terminal

The TP-Link TX-6610 V1 1-Port Gigabit GPON Terminal is a high-performance fiber optic networking solution designed for seamless integration into Fiber-to-the-Home (FTTH) and enterprise broadband deployments. As a compact and efficient GPON (Gigabit Passive Optical Network) endpoint device, it enables service providers and network administrators to deliver ultra-fast internet, voice, and video services over a single fiber connection.
Supporting downstream rates of up to 2.488 Gbps and upstream rates of up to 1.244 Gbps, the TX-6610 ensures high-speed, low-latency connectivity ideal for bandwidth-intensive applications such as 4K streaming, online gaming, and cloud-based services. It features one Gigabit Ethernet port for reliable wired connections to routers, switches, or customer premises equipment (CPE), making it a versatile choice for residential and small business environments.
Fully compliant with ITU-T G.984.x standards, the TX-6610 delivers stable and secure GPON performance with support for advanced features including VLAN tagging, Quality of Service (QoS), and IGMP snooping for optimized traffic management. Its plug-and-play design simplifies deployment, while the durable metal housing ensures long-term reliability in various installation conditions.
Additionally, the TX-6610 supports TR-069 and OMCI (ONT Management and Control Interface), enabling remote management and configuration through service provider systems for streamlined network operations.
Whether used in urban FTTH rollouts or enterprise fiber access networks, the TP-Link TX-6610 V1 GPON Terminal offers a cost-effective, high-speed solution for delivering next-generation broadband services with superior performance and scalability.
