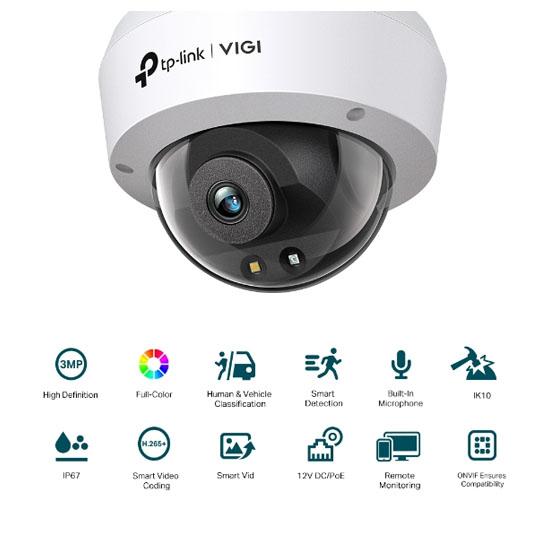

TP-Link VIGI C230 2.8MM 3MP Full Color Dome Network Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3

TP-Link VIGI C230 2.8MM 3MP Full Color Dome Network Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | Out of Stock | Brand: TP-Link
৳3490 ৳4250 Save 18%

Key Features

  • Image Sensor: 1/2.8” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Aperture: 2.8 mm: F1.6
  • IR Working Distance: 30m
  • Max. Resolution: 3MP (2304 × 1296)
  • Privacy Masking: Up to 4 Masks
Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Camera Lens 2.8 mm
Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 2.8mm:
Horizontal FOV: 107.5°, Vertical FOV:57.2°, Diagonal FOV: 128.7°
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 1
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 3MP (2304 × 1296)
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Lens
Aperture 2.8 mm: F1.6
Lens Mount M12
Focal Length 2.8 mm
Day/Night Switch Unified/ Scheduled/ Auto
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region
Audio
Audio Communication N/A
Audio Input Yes
Audio Compression N/A
Audio Sampling Rate N/A
Environment Noise Filtering N/A
Audio Bit Rate N/A
Audio and Video
Audio Output N/A
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Physical Specification

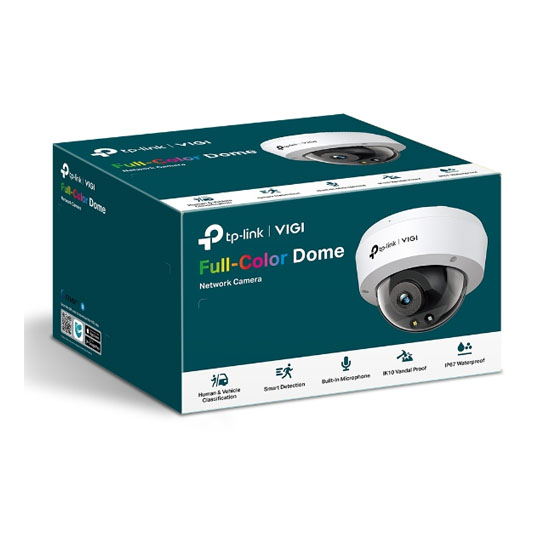

Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 115 × 115 × 86 mm
Material Plastic
Gross Weight 0.35 Kg
Dimensions
Net Weight 0.2 Kg
Power Type
Power Consumption 12V DC: Max 5W PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty

TP-Link VIGI C230 2.8MM 3MP Full Color Dome Network Camera

The TP-Link VIGI C230 2.8mm 3MP Full Color Dome Network Camera is a sophisticated indoor surveillance solution engineered to provide exceptional clarity and reliable performance for residential and small business security needs. With a high-resolution 3MP sensor, it captures sharp, detailed footage at 2304 x 1296 resolution—offering improved image quality over traditional 1080p cameras and ensuring critical details are never missed.
This dome camera features a fixed 2.8mm lens that delivers a broad field of view, making it ideal for monitoring open indoor spaces such as lobbies, offices, retail counters, or home interiors. Its Full Color technology ensures vibrant, color-rich video around the clock by using integrated white-light illumination, enhancing visibility and improving identification accuracy in low-light conditions.
Designed for smart and efficient operation, the C230 supports H.265 video compression , significantly reducing storage and bandwidth usage without compromising image quality. It also includes intelligent detection capabilities like motion detection and intrusion alerts, helping users respond quickly to potential threats.
Built with discretion in mind, the sleek dome housing blends seamlessly into any environment while deterring tampering. The camera integrates smoothly with the VIGI Surveillance System , allowing easy setup and centralized management via the VIGI app or compatible NVR. Power over Ethernet (PoE) simplifies installation with a single cable handling both power and data transmission.
Durable, easy to install, and packed with advanced features, the TP-Link VIGI C230 offers professional-grade security in a compact design. Whether you're protecting your home or office, this camera delivers clear, colorful imaging and intelligent monitoring for peace of mind.
