TP-Link VIGI C230 4MM 3MP Full Color Dome Network Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3

TP-Link VIGI C230 4MM 3MP Full Color Dome Network Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳3450 ৳4200 Save 18%

Key Features

  • Image Sensor: 1/2.8” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Aperture: 4 mm: F1.6
  • IR Working Distance: 30m
  • Max. Resolution: 4MP (2304 × 1296)
  • Privacy Masking: Up to 4 Masks
Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Camera Lens 4 mm
Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 4 mm:
Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 1
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 4MP (2304 × 1296)
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Lens
Aperture 4 mm: F1.6
Lens Mount M12
Focal Length 2.8 mm
Day/Night Switch Unified/ Scheduled/ Auto
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region
Audio
Audio Communication N/A
Audio Input Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering N/A
Audio Bit Rate 64 Kbps(G.711 alaw)
Audio and Video
Audio Output N/A
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Physical Specification
Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 115 × 115 × 86 mm
Material Plastic
Gross Weight 0.47 Kg
Dimensions
Net Weight 0.28 Kg
Power Type
Power Consumption 12V DC: Max 5W PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty

TP-Link VIGI C230 4MM 3MP Full Color Dome Network Camera

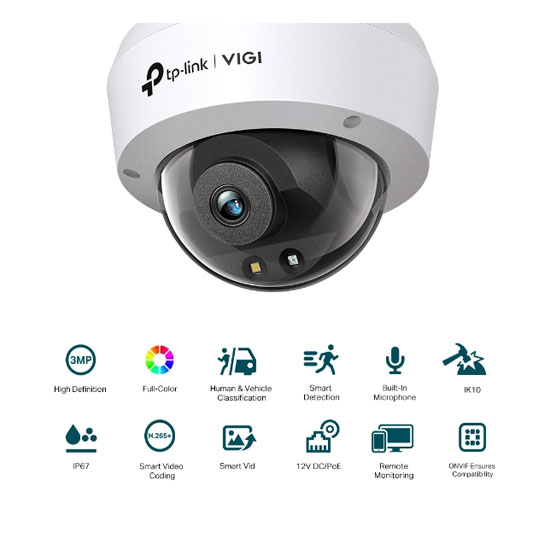

The TP-Link VIGI C230 4mm 3MP Full Color Dome Network Camera is a high-quality indoor surveillance solution engineered to deliver vibrant, full-color video for enhanced security and situational awareness. With a resolution of 3MP (2304 x 1296), this camera captures sharper detail than standard 1080p HD, ensuring clear visibility of faces, objects, and activity in both well-lit and low-light environments.
Equipped with a fixed 4mm lens, the C230 offers a more focused field of view, making it ideal for monitoring specific indoor areas such as hallways, entryways, retail counters, or office spaces where targeted coverage is essential. Its Full Color technology ensures that video footage remains rich in color around the clock by utilizing built-in spotlight illumination—eliminating the grainy black-and-white imaging typical of traditional night vision cameras.
This dome network camera supports H.265 compression , which significantly reduces bandwidth and storage usage while maintaining high-quality video clarity. It also features intelligent detection functions including motion detection and intrusion alerts, allowing users to receive real-time notifications and respond promptly to potential security events.
Designed with a sleek and discreet dome housing, the VIGI C230 blends easily into indoor environments while deterring tampering and vandalism. The camera integrates seamlessly with the VIGI Surveillance System , enabling centralized management through the VIGI app or compatible NVR. Power over Ethernet (PoE) support simplifies installation with a single cable handling both data and power transmission.
Whether used for home security or small business monitoring, the TP-Link VIGI C230 4mm model provides professional-grade performance, full-color visibility, and smart detection capabilities—all housed in a compact, durable design tailored for modern surveillance needs
