TP-Link VIGI C230I 2.8MM Mini 3MP IR Audio Dome Network Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3

TP-Link VIGI C230I 2.8MM Mini 3MP IR Audio Dome Network Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳3160 ৳3800 Save 17%

Key Features

  • Image Sensor: 1/2.8” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Aperture: 2.8 mm: F2.2
  • IR Working Distance: 30m
  • Max. Resolution: 3MP (2304 × 1296)
  • Privacy Masking: Up to 4 Masks
Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Camera Lens 2.8 mm
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 2.8mm: 97.8°/52.9°/117.9°(H/V/D)
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 3MP (2304 × 1296)
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Lens
Aperture 2.8 mm: F2.2
Lens Mount M12
Focal Length 2.8 mm
Day/Night Switch Day/Night/Auto/Schedule-Switch
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region
Audio
Audio Communication N/A
Audio Input N/A
Audio Compression N/A
Audio Sampling Rate N/A
Environment Noise Filtering N/A
Audio Bit Rate N/A
Audio and Video
Audio Output N/A
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Physical Specification
Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 115 × 115 × 86 mm
Material Plastic
Gross Weight 0.45 Kg
Dimensions
Net Weight 0.27 Kg
Power Type
Power Consumption 12V DC: Max 5W PoE: Class 0
Power Supply PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty

TP-Link VIGI C230I 2.8MM Mini 3MP IR Audio Dome Network Camera

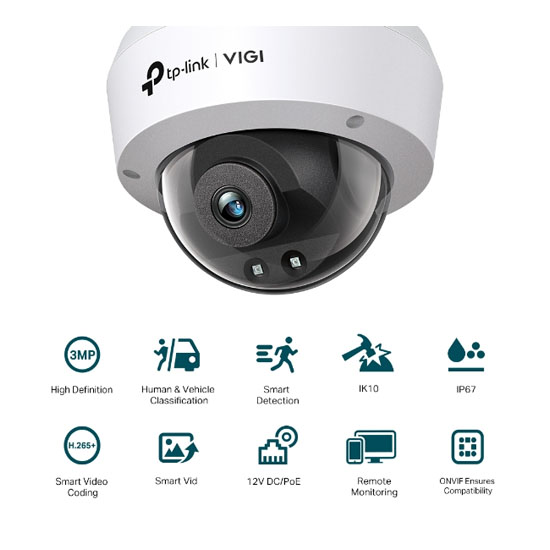

The TP-Link VIGI C230I 2.8mm Mini 3MP IR Audio Dome Network Camera is a compact and versatile indoor surveillance solution designed for high-quality monitoring in homes and small businesses. Featuring a 3-megapixel sensor, it delivers sharp HD video resolution at 2048 x 1536 pixels, ensuring clear and detailed footage for accurate identification and real-time observation. The fixed 2.8mm lens provides a wide field of view, making it ideal for covering large indoor areas such as living rooms, offices, hallways, or retail counters with minimal blind spots.
Equipped with built-in infrared (IR) night vision, the camera ensures uninterrupted surveillance even in low-light or no-light conditions, delivering clear video around the clock. It also includes an integrated microphone for audio capture, adding an extra layer of security by recording sound along with video—perfect for environments where verbal interactions are important.
This mini dome camera supports H.265 video compression to reduce bandwidth and storage usage without compromising image quality, allowing for longer retention periods and more efficient system performance. Power over Ethernet (PoE) support simplifies installation by requiring only a single Ethernet cable for both power and data transmission.
Designed with a sleek, unobtrusive dome housing, the VIGI C230I blends easily into any indoor setting while offering tamper-resistant durability. It seamlessly integrates with the VIGI Surveillance app, enabling remote access to live feeds, motion alerts, and recorded footage from smartphones or tablets. Whether used for residential or commercial security, this camera offers a powerful combination of high-resolution imaging, audio support, and smart features for modern surveillance needs.
