TP-Link VIGI C230I 4MM Mini 3MP IR Audio Dome Network Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3

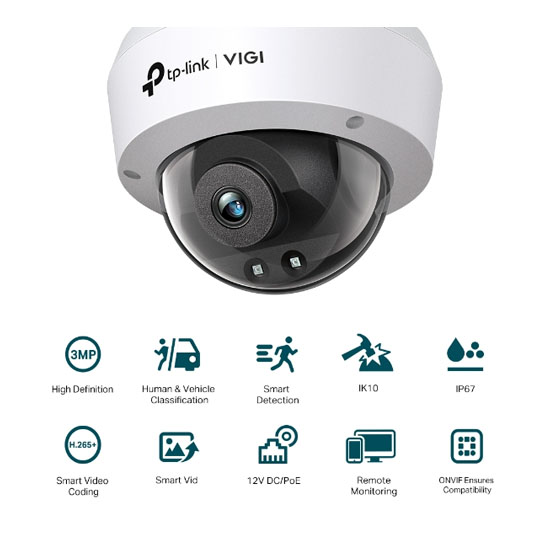

TP-Link VIGI C230I 4MM Mini 3MP IR Audio Dome Network Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳3150 ৳3800 Save 17%

Key Features

  • Image Sensor: 1/2.8” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Aperture: 4 mm: F2.0
  • IR Working Distance: 30m
  • Max. Resolution: 3MP (2304 × 1296)
  • Privacy Masking: Up to 4 Masks
Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Camera Lens 4 mm
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 4mm: 82.5°/44.9°/99.3°(H/V/D)
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 3MP (2304 × 1296)
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Lens
Aperture 4 mm: F2.0
Lens Mount M12
Focal Length 4 mm
Day/Night Switch Unified/ Scheduled/ Auto
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region
Audio
Audio Communication N/A
Audio Input N/A
Audio Compression N/A
Audio Sampling Rate N/A
Environment Noise Filtering N/A
Audio Bit Rate N/A
Audio and Video
Audio Output N/A
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Physical Specification
Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 115 × 115 × 86 mm
Material Plastic
Gross Weight 0.45 Kg
Dimensions
Net Weight 0.27 Kg
Power Type
Power Consumption 12V DC: Max 5W PoE: Class 0
Power Supply PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty

TP-Link VIGI C230I 4MM Mini 3MP IR Audio Dome Network Camera

The TP-Link VIGI C230I 4mm Mini 3MP IR Audio Dome Network Camera is a compact, high-performance indoor surveillance solution designed for clear and reliable monitoring in residential and small business environments. Featuring a 3-megapixel sensor, it delivers sharp HD video resolution at 2048 x 1536 pixels, ensuring detailed footage for accurate identification and real-time observation. The fixed 4mm lens offers a more focused field of view, making it ideal for monitoring specific indoor areas such as entryways, hallways, or counters where greater detail at a moderate distance is required.
Equipped with built-in infrared (IR) night vision, the camera provides clear video footage even in low-light or complete darkness, ensuring uninterrupted 24/7 surveillance. It also features an integrated microphone for audio capture, enhancing security by recording sound along with video—perfect for locations where verbal interactions matter.
This mini dome camera supports H.265 compression technology, which helps reduce bandwidth and storage usage without compromising video quality, allowing for longer retention times and improved system efficiency. Power over Ethernet (PoE) support simplifies installation by using a single Ethernet cable for both data and power transmission.
Designed with a sleek, discreet dome housing, the VIGI C230I blends easily into any indoor setting while offering tamper-resistant durability. It integrates seamlessly with the VIGI Surveillance app, giving users remote access to live feeds, motion alerts, and recorded footage via smartphones or tablets. Whether used for home security or commercial monitoring, this camera offers a powerful combination of high-resolution imaging, audio support, and intelligent features tailored for modern surveillance needs.
