TP-Link VIGI C420I 2MP 2.8MM Lens IR Turret IP Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3

TP-Link VIGI C420I 2MP 2.8MM Lens IR Turret IP Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳2080 ৳2800 Save 26%

Key Features

  • Image Sensor: 1/3” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Aperture: 2.8 mm: F2.2
    4 mm: F2.0
  • IR Working Distance: 30m
  • Max. Resolution: 2MP (1920 × 1080)
  • Cloud Access: Cloud
Camera
Image Sensor 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Camera Lens 2.8 mm/ 4 mm
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 2.8mm: 88.2°/48.7°/106.5°(H/V/D) 4mm:
74.6°/41.3°/88.1°(H/V/D)
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 1
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 2MP (1920 × 1080)
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Lens
Aperture 2.8 mm: F2.2
4 mm: F2.0
Lens Mount M12
Focal Length 2.8/4 mm
Day/Night Switch Day/Night/Auto/Schedule
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Resolution:
1920x1080, 1280x960, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 64 Kbps to 4 Mbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region
Audio
Audio Communication N/A
Audio Input Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Audio and Video
Audio Output N/A
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Physical Specification
Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 123 × 123 × 83 mm
Material Plastic
Gross Weight 0.34 Kg
Dimensions
Net Weight 0.19 Kg
Power Type
Power Consumption PoE: Class 0
Power Supply PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty

TP-Link VIGI C420I 2MP 2.8MM Lens IR Turret IP Camera

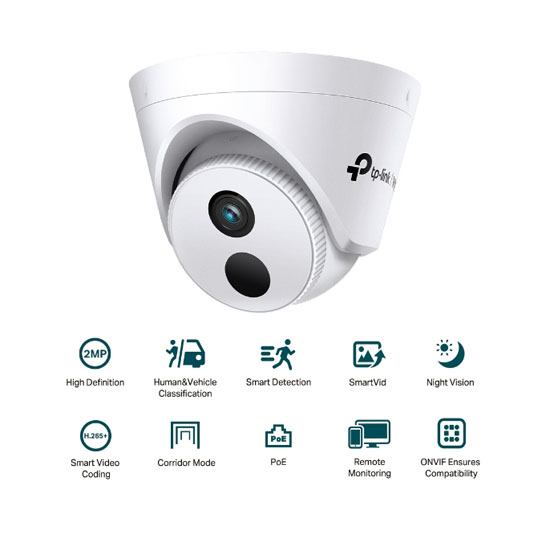

The TP-Link VIGI C420I 2MP 2.8mm Lens IR Turret IP Camera is a reliable and high-performing security camera designed for both residential and small business surveillance needs. Featuring a 2-megapixel sensor, it delivers sharp Full HD 1080p video resolution, ensuring clear and detailed footage for effective monitoring and identification. The fixed 2.8mm lens provides a wide viewing angle, making it ideal for covering large indoor areas or outdoor spaces such as driveways, entrances, and corridors.
Equipped with powerful infrared (IR) night vision technology, the C420I offers 24/7 surveillance by capturing clear images in total darkness, ensuring uninterrupted security coverage after sunset. Its robust turret design is not only tamper-resistant but also built to withstand harsh weather conditions thanks to its IP66-rated housing, which protects against rain, dust, and extreme temperatures.
This PoE (Power over Ethernet)-enabled camera simplifies installation by using a single Ethernet cable for both data and power transmission, reducing wiring complexity and setup time. It also supports H.265 video compression, which significantly reduces bandwidth and storage requirements while maintaining high video quality—allowing for longer recording times without compromising performance.
With seamless integration into the VIGI Surveillance ecosystem, users can access live feeds, receive motion detection alerts, and view recorded footage remotely via the VIGI app on smartphones or tablets. Whether used for home security or commercial monitoring, the TP-Link VIGI C420I combines durability, intelligent features, and ease of use to deliver an efficient and effective surveillance solution.
