TP-Link VIGI C420I 2MP 4MM Lens IR Turret IP Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3

TP-Link VIGI C420I 2MP 4MM Lens IR Turret IP Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | In Stock | Brand: TP-Link
৳2030 ৳2800 Save 28%

Key Features

  • Image Sensor: 1/3” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Aperture: 4 mm: F2.0
  • IR Working Distance: 30m
  • Max. Resolution: 2MP (1920 × 1080)
  • Cloud Access: Cloud
Camera
Image Sensor 1/3” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Camera Lens 2.8 mm/ 4 mm
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 2.8mm: 88.2°/48.7°/106.5°(H/V/D) 4mm:
74.6°/41.3°/88.1°(H/V/D)
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 1
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 2MP (1920 × 1080)
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Lens
Aperture 4 mm: F2.0
Lens Mount M12
Focal Length 2.8/4 mm
Day/Night Switch Day/Night/Auto/Schedule
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Resolution:
1920x1080, 1280x960, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 64 Kbps to 4 Mbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region
Audio
Audio Communication N/A
Audio Input Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Audio and Video
Audio Output N/A
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Physical Specification
Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 123 × 123 × 83 mm
Material Plastic
Gross Weight 0.34 Kg
Dimensions
Net Weight 0.19 Kg
Power Type
Power Consumption PoE: Class 0
Power Supply PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty

TP-Link VIGI C420I 2MP 4MM Lens IR Turret IP Camera

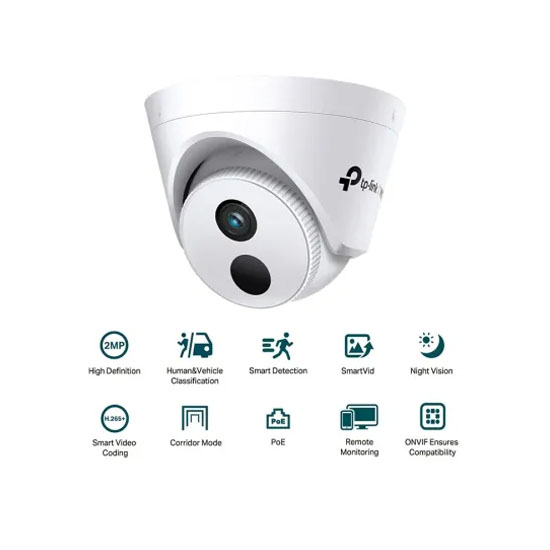

The TP-Link VIGI C420I 2MP 4mm Lens IR Turret IP Camera is a high-performance surveillance solution designed for reliable security monitoring in residential and small business environments. Featuring a 2-megapixel sensor, it delivers sharp Full HD 1080p video resolution, ensuring clear image detail for accurate identification and real-time observation. The fixed 4mm lens provides a narrower field of view compared to wider-angle models, making it ideal for focused monitoring of specific areas such as entryways, hallways, or driveways.
Equipped with advanced infrared (IR) night vision technology, the camera captures clear footage in low-light or complete darkness, ensuring 24/7 surveillance capability. Its vandal-resistant turret design offers durability and protection against tampering, while the IP66 weather-resistant rating ensures reliable performance in harsh outdoor conditions, including heavy rain, wind, and extreme temperatures.
This Power over Ethernet (PoE)-enabled camera simplifies installation by requiring only a single Ethernet cable for both data and power transmission, reducing cabling complexity and saving time. It also supports H.265 compression technology, which helps reduce bandwidth and storage usage without compromising video quality—allowing for longer retention periods and more efficient system performance.
The C420I integrates seamlessly with the VIGI Surveillance ecosystem, enabling users to access live feeds, receive motion-triggered alerts, and review recorded footage remotely via the VIGI app on smartphones or tablets. With its combination of high-quality imaging, robust build, and intelligent features, this camera offers a dependable and user-friendly solution for modern security needs.
