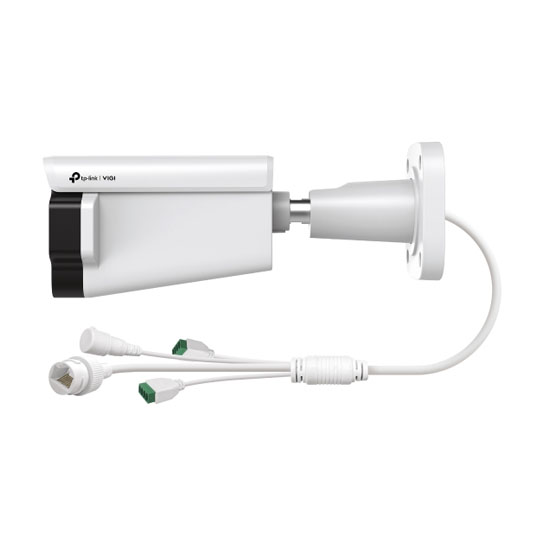

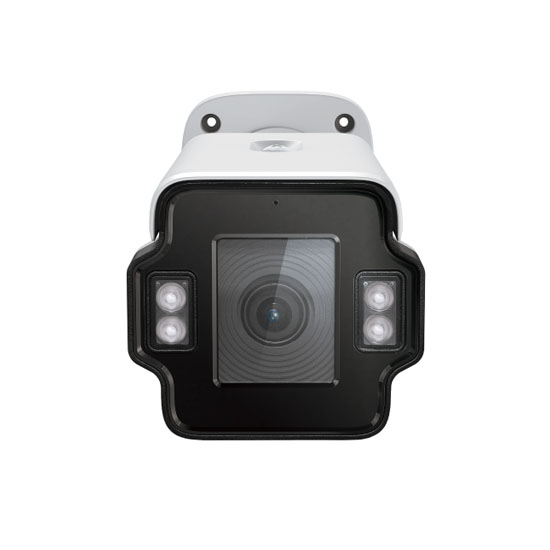

TP-Link VIGI InSight S345ZI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

TP-Link VIGI InSight S345ZI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | Upcoming | Brand: TP-Link

Key Features

  • Image Sensor: 1/2.9” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Aperture: F1.6
  • IR Working Distance: 30m
  • Max. Resolution: 4MP (2688 x 1520)
  • Privacy Masking: Up to 4 Masks
Camera
Image Sensor 1/2.9” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Camera Lens Motorized Varifocal Lens
Minimum Illumination 0.005 Lux; 0 Lux with IR Light
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle 2.8mm: 88.8°/48.9°/106.5°(H/V/D)
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 4MP (2688 x 1520)
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Lens
Aperture F1.6
Lens Mount Φ14
Focal Length 2.7-13.5 mm (5X Optical Zoom)
Day/Night Switch Unified/ Scheduled/ Auto
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 512 Kbps to 1024 Kbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region
Audio
Audio Communication One-Way Audio
Audio Input Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Audio and Video
Audio Output Yes
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
API Open Network Video Interface (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Physical Specification
Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 256 × 100 × 101 mm
Material Plastic
Gross Weight 0.35 Kg
Dimensions
Net Weight 0.2 Kg
Power Type
Power Consumption 12V DC: Max 5W PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty

TP-Link VIGI InSight S345ZI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera

The TP-Link VIGI InSight S345Zi 4MP Outdoor IR Motorized Varifocal Bullet Network Camera is a high-performance surveillance solution designed for advanced security monitoring in residential and commercial settings. Featuring a 4MP (2688 x 1520) resolution, this camera delivers sharp, detailed video that exceeds standard 1080p HD, ensuring clear identification of people, objects, and activities.
Equipped with a motorized varifocal lens, the S345Zi offers flexible field-of-view adjustment, allowing users to fine-tune the zoom and focus remotely for optimal coverage. Its powerful infrared (IR) night vision provides reliable surveillance in low-light or no-light conditions, with a viewing range of up to 50 meters, ensuring uninterrupted protection after dark.
This outdoor-rated bullet camera is built to withstand harsh weather conditions with its durable IP67-rated housing, making it ideal for both day and night operation in all seasons. The S345Zi supports H.265 compression to reduce bandwidth and storage usage while maintaining superior image quality. It also integrates seamlessly into VIGI Surveillance Systems, enabling easy setup and centralized management through the VIGI app or compatible NVR.
With Power over Ethernet (PoE) support, installation is streamlined by requiring only a single cable for both power and data transmission. Additional features, such as motion detection, intrusion alerts, and audio input compatibility, further enhance situational awareness.
Whether monitoring a perimeter, driveway, or business premises, the TP-Link VIGI InSight S345Zi delivers professional-grade performance with intelligent detection capabilities, scalability, and dependable reliability—making it an excellent choice for modern security needs.
