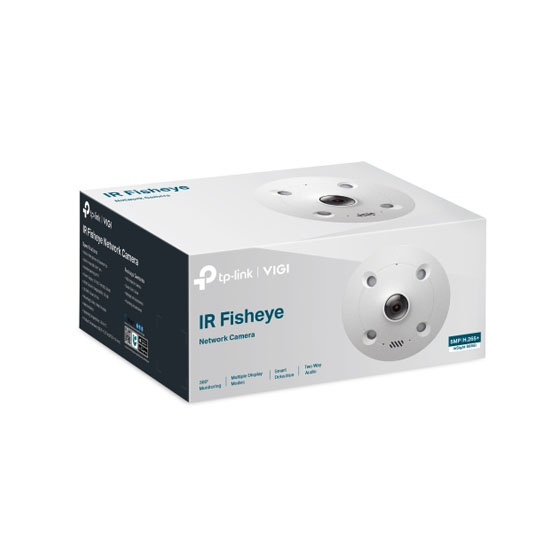

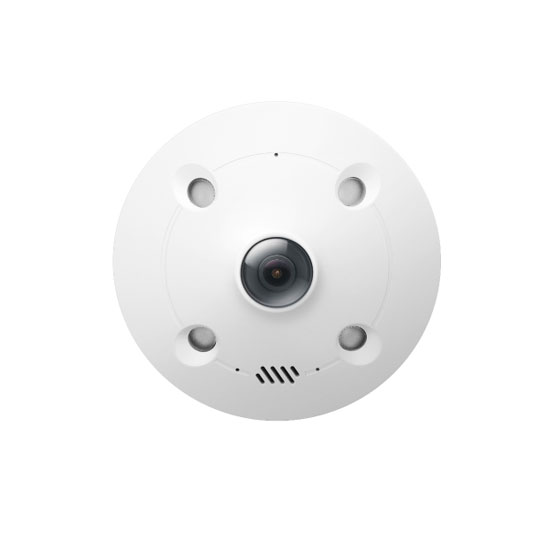

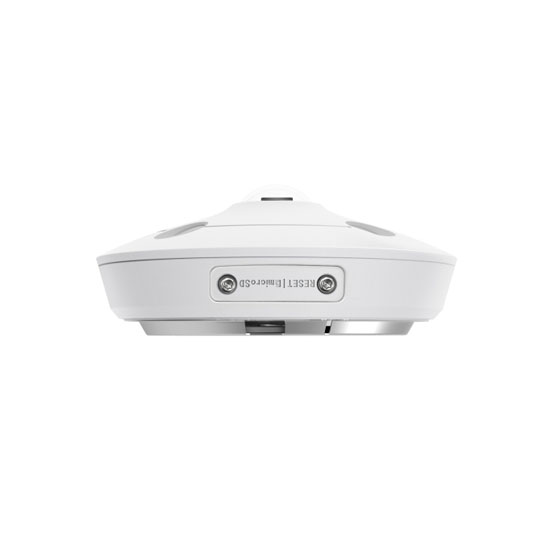

TP-Link VIGI InSight S655I 5MP IR Fisheye Network Camera
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4

TP-Link VIGI InSight S655I 5MP IR Fisheye Network Camera

☆ ☆ ☆ ☆ ☆
(0 Reviews) | Upcoming | Brand: TP-Link

Key Features

  • Image Sensor: 1/2.7” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Aperture: 2.8 mm: F2.2
  • IR Working Distance: 30m
  • Max. Resolution: 4MP (2560 × 1440)
  • Privacy Masking: Up to 4 Masks
Camera
Camera Lens 2.8 mm
Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
WDR DWDR
Digital Noise Reduction 3D DNR
IR Working Distance 30m
Viewing Angle Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180° a
Lens Type Fixed Focal Lens
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360°
IR LEDs Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
Max. Resolution 4MP (2560 × 1440)
Linkage Method N/A
Frame Rate Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Lens
Lens Mount M12
Focal Length 1.44 mm
Aperture 2.8 mm: F2.2
Day/Night Switch Day/Night/Auto/Schedule-Switch
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
SNR ≥ 52 dB
Image Parameters Switch Yes
Video
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Privacy Masking Up to 4 Masks
Region of Interest (ROI) 1 Region
Audio
Audio Communication N/A
Audio Input N/A
Audio Compression N/A
Audio Sampling Rate N/A
Environment Noise Filtering N/A
Audio Bit Rate N/A
Audio and Video
Audio Output N/A
Network
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR
Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Management Features
Cloud Access Cloud
Alarm
Alarm Linkage Message Push
Physical Specification
Package Content VIGI Network Camera
Quick Start Guide
Mounting Accessories
Dimension 174 × 74 × 71 mm
Material Plastic
Gross Weight 0.35 Kg
Dimensions
Net Weight 0.2 Kg
Power Type
Power Consumption 12V DC: Max 5W PoE: Class 0
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Warranty Information
Warranty 1 Year Warranty

TP-Link VIGI InSight S655I 5MP IR Fisheye Network Camera

The TP-Link VIGI InSight S655i 5MP IR Fisheye Network Camera is a powerful, all-in-one surveillance solution designed to provide comprehensive coverage with minimal blind spots. Featuring a high-resolution 5MP (2880 x 1920) image sensor, this camera delivers ultra-clear video quality that surpasses traditional 1080p HD, capturing every detail with exceptional clarity.
With its wide-angle fisheye lens, the S655i offers 360° panoramic viewing or selectable dewarping modes, allowing users to monitor entire rooms, lobbies, or open spaces with just one device. Its advanced infrared (IR) night vision technology ensures reliable performance in low-light or no-light conditions, delivering clear footage at distances of up to 30 meters.

This network camera supports H.265 compression , significantly reducing bandwidth and storage requirements without compromising video quality. It also features intelligent detection capabilities such as motion detection, intrusion alerts, and tripwire analytics to help reduce false alarms and improve security response times.

Designed for both indoor and outdoor use, the S655i comes in a robust IP67-rated housing that protects against dust, rain, and extreme weather conditions. The camera is equipped with Power over Ethernet (PoE) capability, streamlining the installation process by utilizing a single cable for both power supply and data transmission
Integration into existing security systems is seamless thanks to compatibility with the VIGI Surveillance System , enabling centralized management via the VIGI app or NVR. Whether used for home security, retail monitoring, or office surveillance, the TP-Link VIGI InSight S655i combines cutting-edge imaging technology with smart analytics and durable design to deliver professional-grade protection in a compact form. With its flexibility, performance, and scalability, it's an ideal choice for those seeking total situational awareness in any environment
